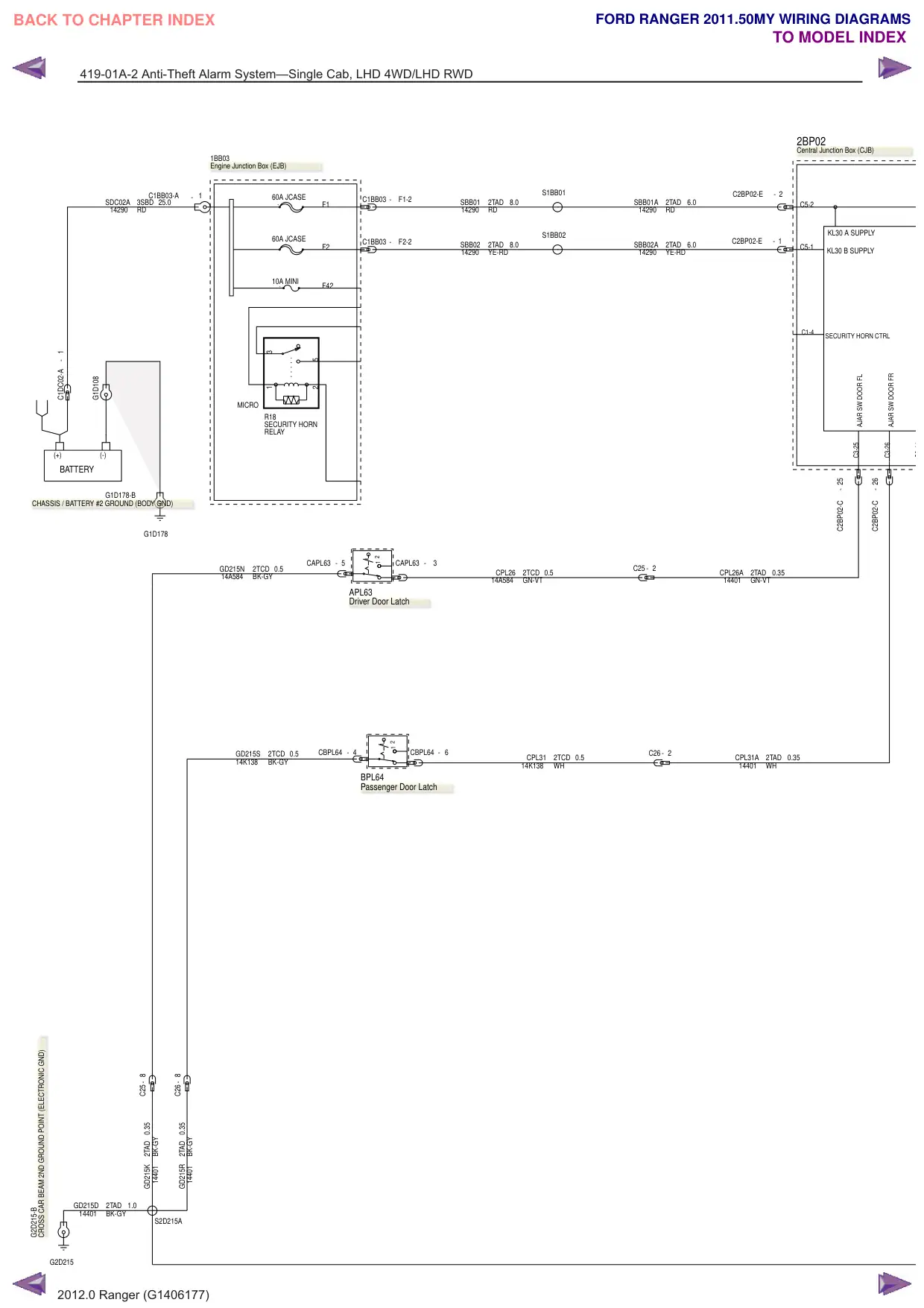

Sistema de alarme antifurto—Cabine simples, LHD 4WD/LHD RWD

419-01A-2 Anti-Theft Alarm System—Single Cab, LHD 4WD/LHD RWD 1BB03 Engine Junction Box (EJB) C1BB03-A - 1 60A JCASE C1BB03 - F1-2 SDC02A 3SBD 25.0 F1 14290 RD + 60A JCASE C1BB03 - F2-2 F2 10A MINI + F42 1 3 - 5 C1DC02-A G1D108 1 2 MICRO R18 SECURITY HORN RELAY (+) (-) BATTERY G1D178-B CHASSIS / BATTERY #2 GROUND (BODY GND) G1D178 1 2 CAPL63 - 5 CAPL63 - GD215N 2TCD 0.5 14A584 BK-GY APL63 Driver Door Latch 2 1 GD215S 2TCD 0.5 CBPL64 - 4 CBPL64 14K138 BK-GY BPL64 Passenger Door Latch CROSS CAR BEAM 2ND GROUND POINT (ELECTRONIC GND) - 8 8 - C25 C26 0.35 0.35 BK-GY BK-GY 2TAD 2TAD GD215K 14401 GD215R 14401 GD215D 2TAD 1.0 G2D215-B 14401 BK-GY S2D215A G2D215 2012.0 Ranger (G1406177) 2BP02 Central Junction Box (CJB) S1BB01 C2BP02-E - 2 SBB01 2TAD 8.0 SBB01A 2TAD 6.0 C5-2 14290 RD 14290 RD KL30 A SUPPLY S1BB02 C2BP02-E - 1 SBB02 2TAD 8.0 SBB02A 2TAD 6.0 C5-1 KL30 B SUPPLY 14290 YE-RD 14290 YE-RD C1-4 SECURITY HORN CTRL AJAR SW DOOR FL AJAR SW DOOR FR C3-25 C3-26 C2 44 - 25 - 26 C2BP02-C C2BP02-C 3 C25 - 2 CPL26 2TCD 0.5 CPL26A 2TAD 0.35 14A584 GN-VT 14401 GN-VT - 6 C26 - 2 CPL31 2TCD 0.5 CPL31A 2TAD 0.35 14K138 WH 14401 WH
