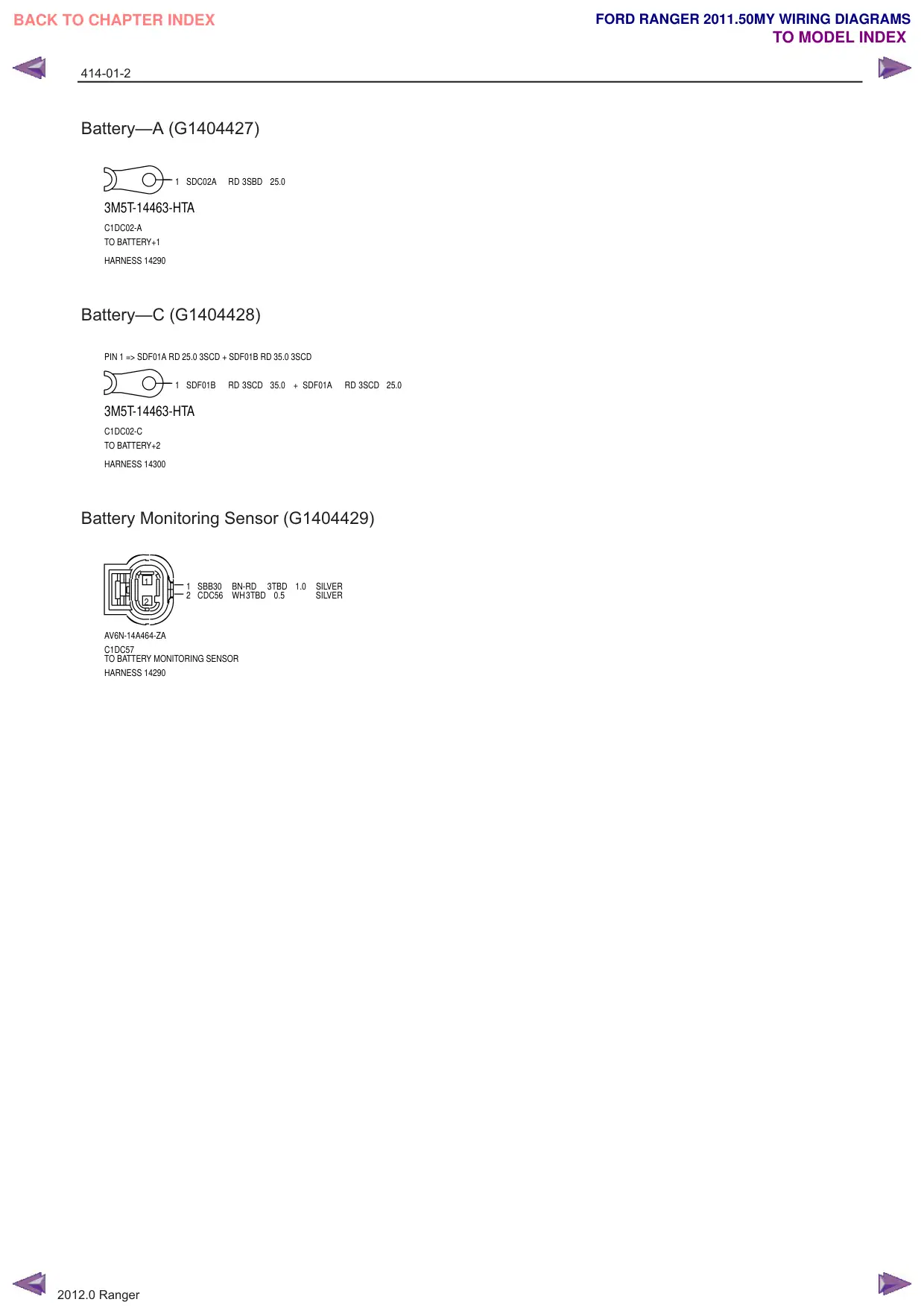

414-01-2
Battery—A (G1404427)
1
SDC02A
RD
3SBD
25.0
3M5T-14463-HTA
C1DC02-A
TO BATTERY+1
HARNESS 14290
Battery—C (G1404428)
PIN 1 => SDF01A RD 25.0 3SCD + SDF01B RD 35.0 3SCD
1
SDF01B
RD 3SCD
35.0
+ SDF01A
RD 3SCD
25.0
3M5T-14463-HTA
C1DC02-C
TO BATTERY+2
HARNESS 14300
Battery Monitoring Sensor (G1404429)
1
1
SBB30
BN-RD
3TBD
1.0
SILVER
2
CDC56
WH
3TBD
0.5
SILVER
2
AV6N-14A464-ZA
C1DC57
TO BATTERY MONITORING SENSOR
HARNESS 14290
2012.0 Ranger
