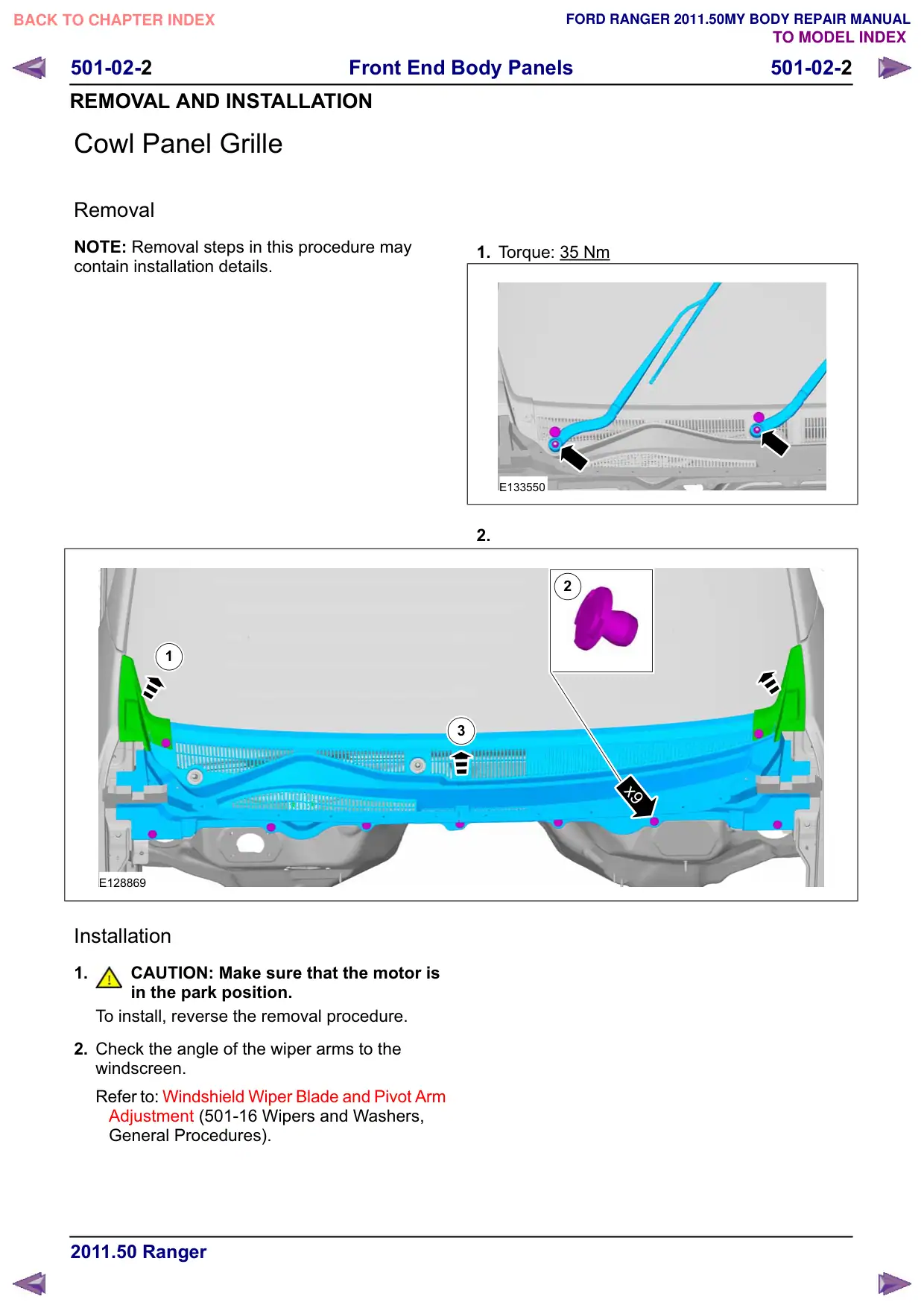

501-02-2
Front End Body Panels
501-02-2
REMOVAL AND INSTALLATION
Cowl Panel Grille
Removal
NOTE: Removal steps in this procedure may
contain installation details.
1
E128869
Installation
1.
CAUTION: Make sure that the motor is
in the park position.
To install, reverse the removal procedure.
2. Check the angle of the wiper arms to the
windscreen.
Refer to: Windshield Wiper Blade and Pivot Arm
Adjustment (501-16 Wipers and Washers,
General Procedures).
1. Torque: 35 Nm
E133550
2.
2
3
x9
