Regulagem dos faróis

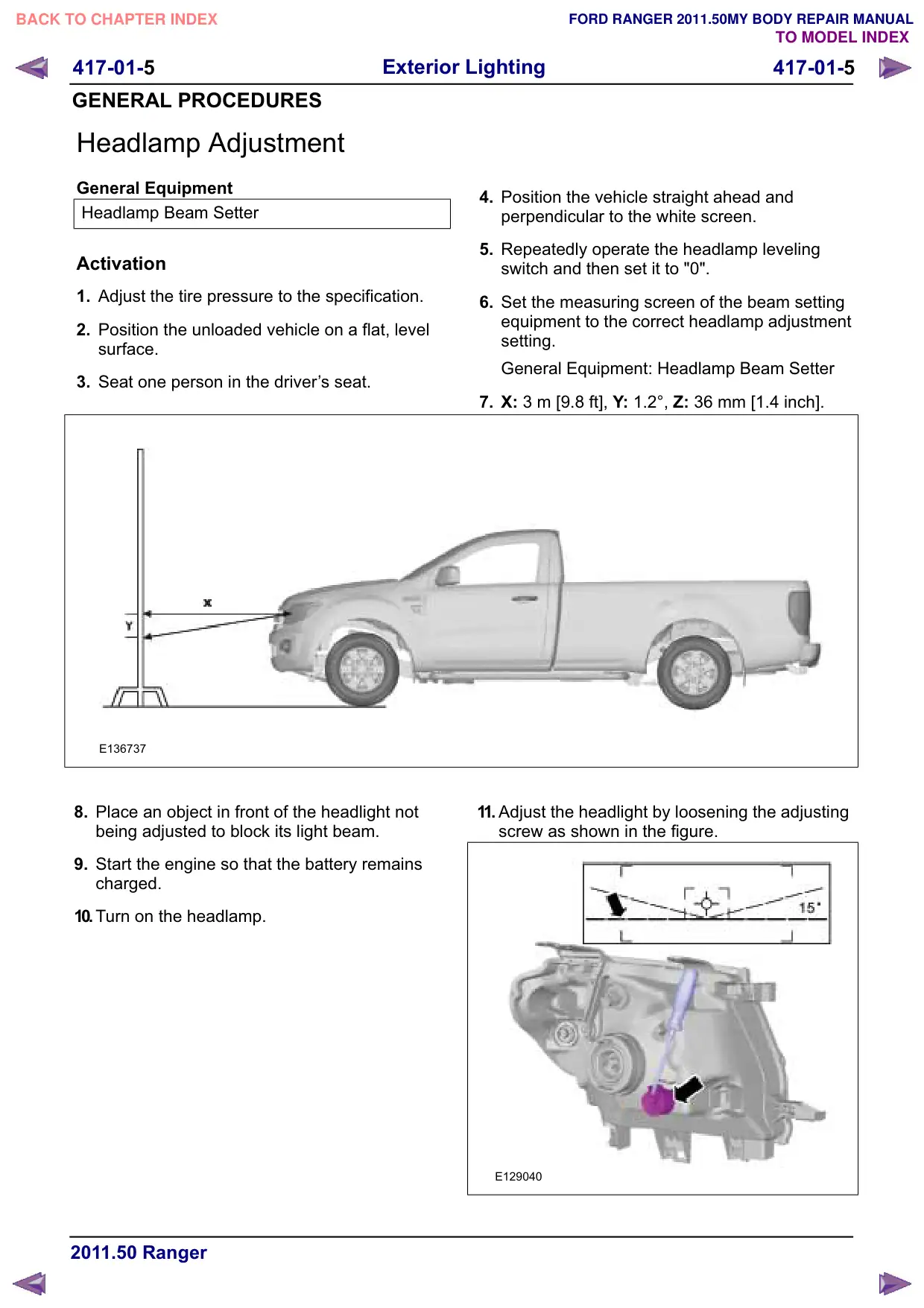

417-01-5 Exterior Lighting 417-01-5 GENERAL PROCEDURES Headlamp Adjustment General Equipment Headlamp Beam Setter Activation 1. Adjust the tire pressure to the specification. 2. Position the unloaded vehicle on a flat, level surface. 3. Seat one person in the driver‘s seat. E136737 8. Place an object in front of the headlight not being adjusted to block its light beam. 9. Start the engine so that the battery remains charged. 10.Turn on the headlamp. 4. Position the vehicle straight ahead and perpendicular to the white screen. 5. Repeatedly operate the headlamp leveling switch and then set it to "0". 6. Set the measuring screen of the beam setting equipment to the correct headlamp adjustment setting. General Equipment: Headlamp Beam Setter 7. X: 3 m [9.8 ft], Y: 1.2°, Z: 36 mm [1.4 inch]. 11. Adjust the headlight by loosening the adjusting screw as shown in the figure. E129040
