Painel de acabamento da porta traseira – Cabine dupla

Rear Door Trim Panel – Double Cab

Carroceria · página 51 de 566 · 501-05-12 · parte 1 de 2

Página 51 do Manual de Carroceria: Painel de acabamento da porta traseira – Cabine dupla

Explicar no Gemini Ampliar imagem Traduzir texto

Texto da página

Link desta página: https://ranger.mbrace.com.br/carroceria/51
Imagem: https://ranger.mbrace.com.br/img/carroceria/51.webp

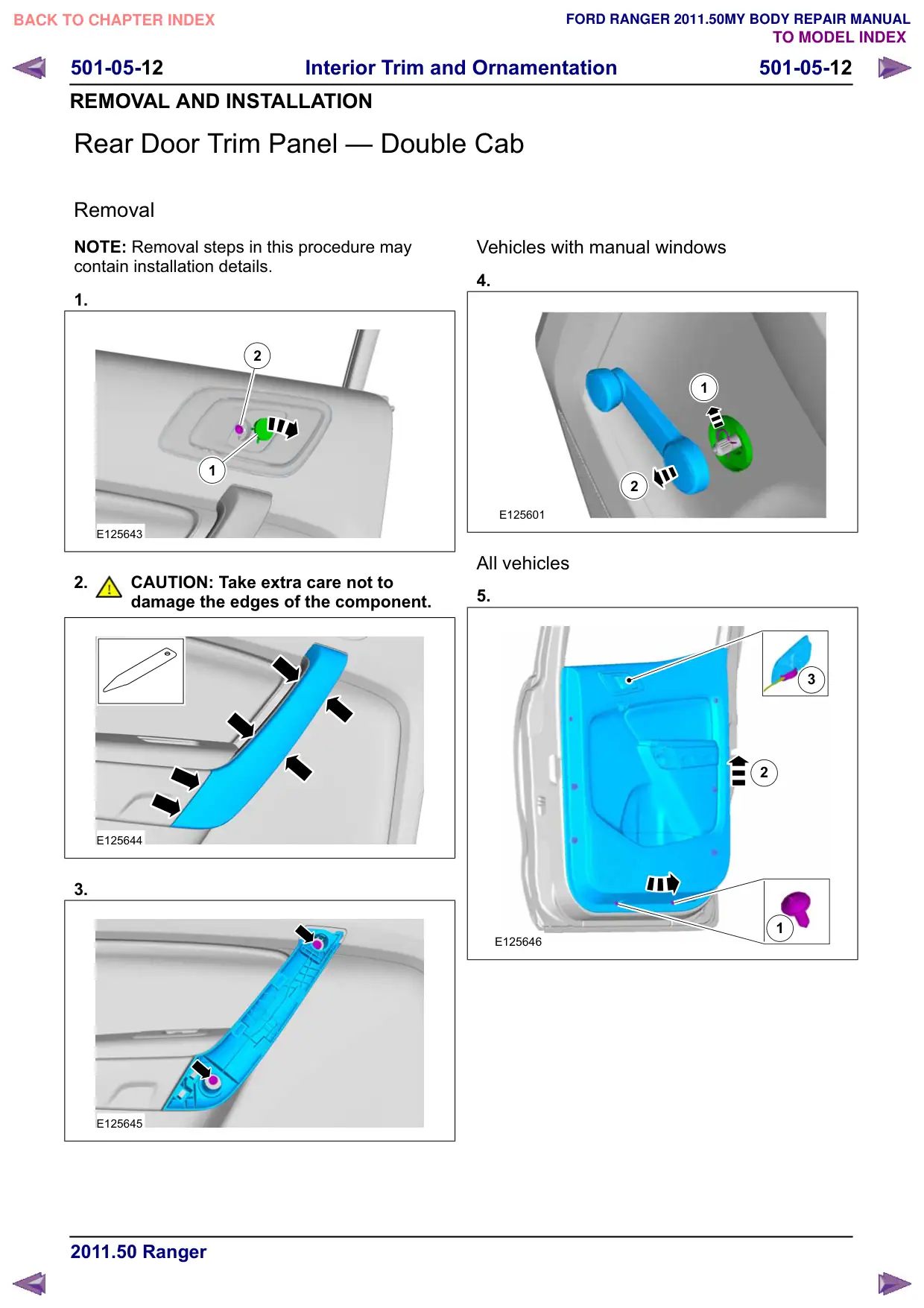

501-05-12 Interior Trim and Ornamentation 501-05-12 REMOVAL AND INSTALLATION Rear Door Trim Panel – Double Cab Removal NOTE: Removal steps in this procedure may contain installation details. 1. 2 1 E125643 2. CAUTION: Take extra care not to damage the edges of the component. E125644 3. E125645 Vehicles with manual windows 4. 1 2 E125601 All vehicles 5. 3 2 1 E125646
