Coluna B e reforço – Cabine dupla

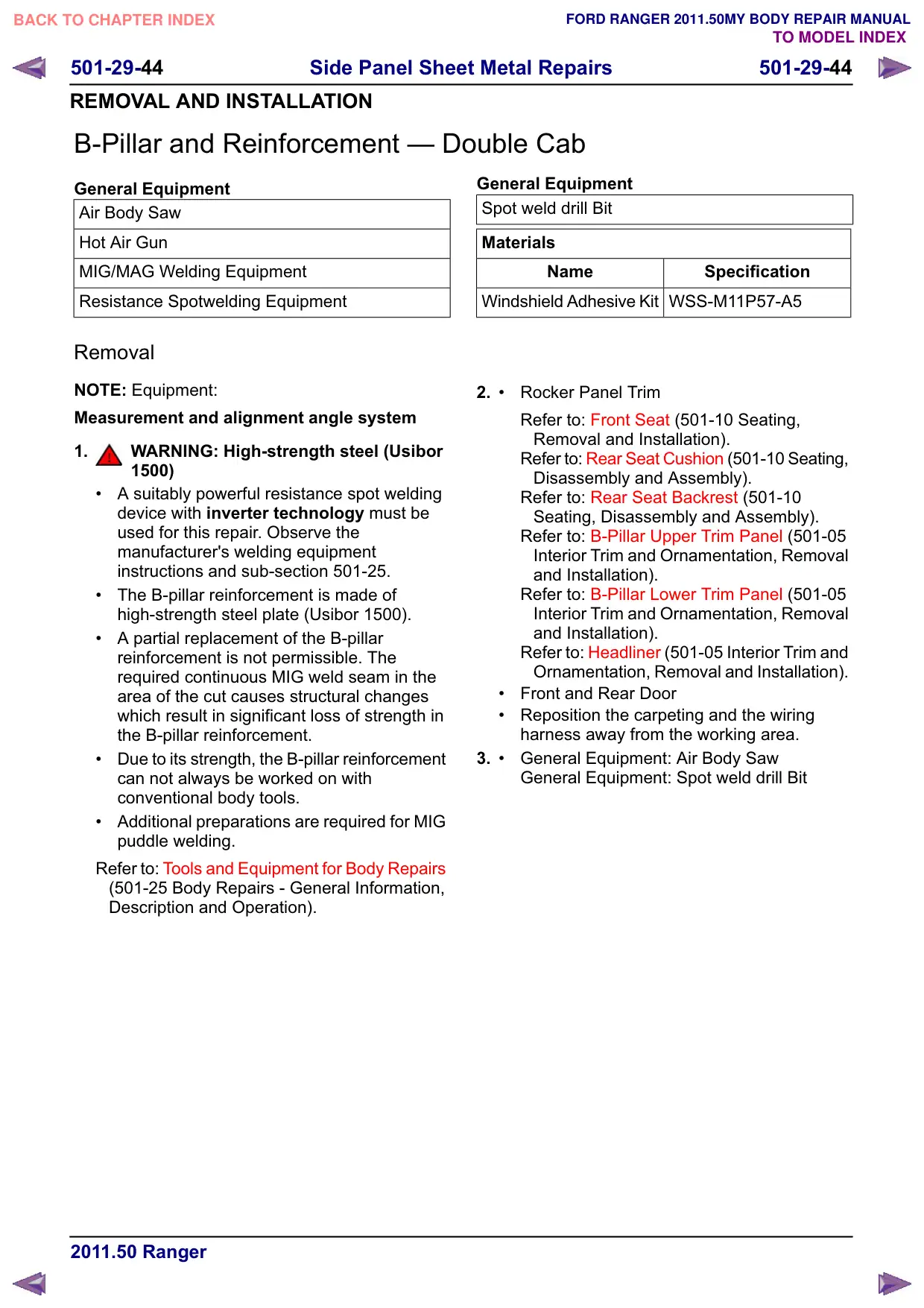

501-29-44 Side Panel Sheet Metal Repairs 501-29-44 REMOVAL AND INSTALLATION B-Pillar and Reinforcement – Double Cab General Equipment Air Body Saw Hot Air Gun MIG/MAG Welding Equipment Resistance Spotwelding Equipment Removal NOTE: Equipment: Measurement and alignment angle system 1. WARNING: High-strength steel (Usibor 1500) ‡ A suitably powerful resistance spot welding device with inverter technology must be used for this repair. Observe the manufacturer's welding equipment instructions and sub-section 501-25. ‡ The B-pillar reinforcement is made of high-strength steel plate (Usibor 1500). ‡ A partial replacement of the B-pillar reinforcement is not permissible. The required continuous MIG weld seam in the area of the cut causes structural changes which result in significant loss of strength in the B-pillar reinforcement. ‡ Due to its strength, the B-pillar reinforcement can not always be worked on with conventional body tools. ‡ Additional preparations are required for MIG puddle welding. Refer to: Tools and Equipment for Body Repairs (501-25 Body Repairs - General Information, Description and Operation). General Equipment Spot weld drill Bit Materials Name Specification Windshield Adhesive Kit WSS-M11P57-A5 2. ‡ Rocker Panel Trim Refer to: Front Seat (501-10 Seating, Removal and Installation). Refer to: Rear Seat Cushion (501-10 Seating, Disassembly and Assembly). Refer to: Rear Seat Backrest (501-10 Seating, Disassembly and Assembly). Refer to: B-Pillar Upper Trim Panel (501-05 Interior Trim and Ornamentation, Removal and Installation). Refer to: B-Pillar Lower Trim Panel (501-05 Interior Trim and Ornamentation, Removal and Installation). Refer to: Headliner (501-05 Interior Trim and Ornamentation, Removal and Installation). ‡ Front and Rear Door ‡ Reposition the carpeting and the wiring harness away from the working area. 3. ‡ General Equipment: Air Body Saw General Equipment: Spot weld drill Bit
