Para-choque traseiro

Rear Bumper

Carroceria · página 195 de 566 · 501-19

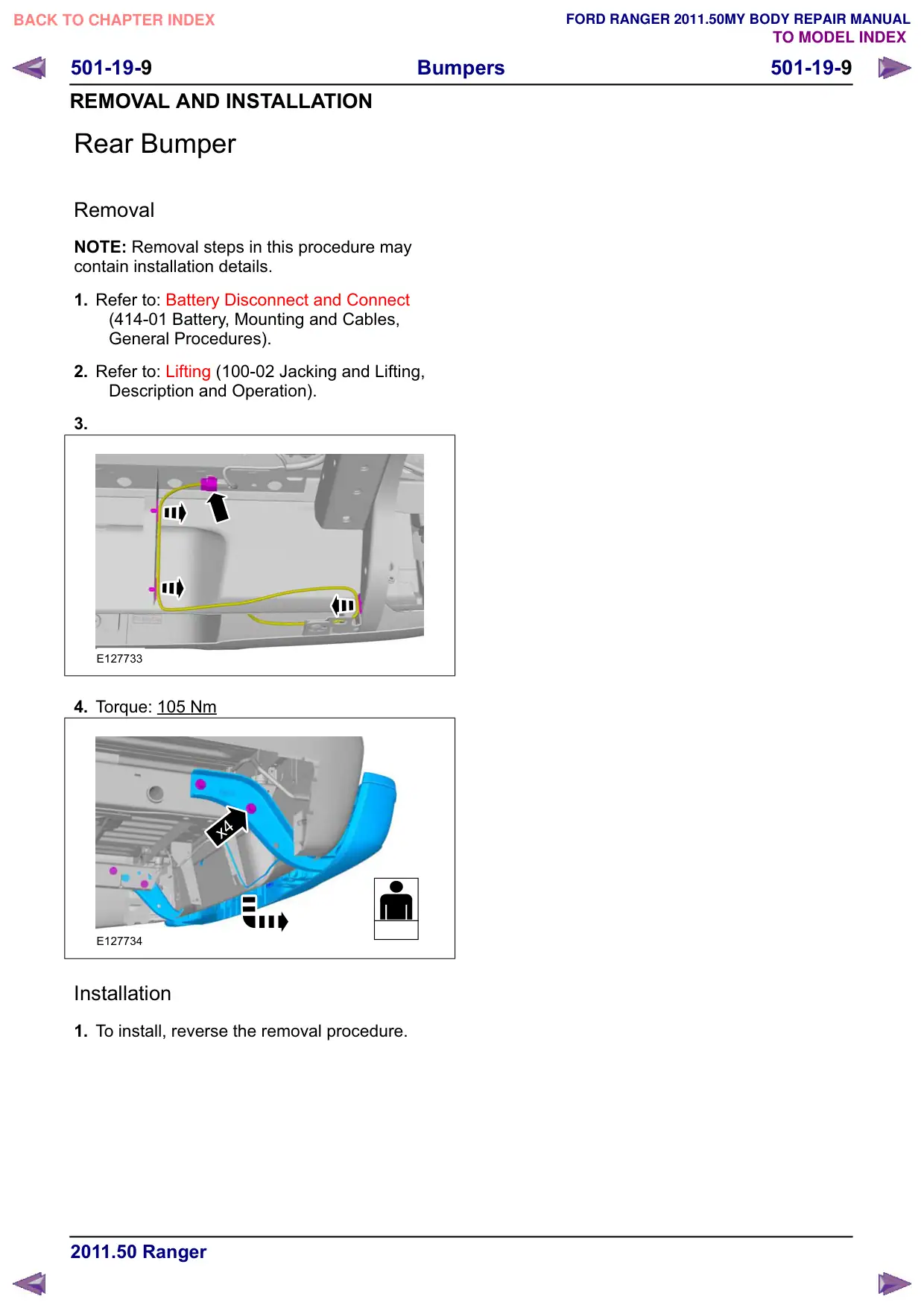

Página 195 do Manual de Carroceria: Para-choque traseiro

Explicar no Gemini Ampliar imagem Traduzir texto

Texto da página

Link desta página: https://ranger.mbrace.com.br/carroceria/195
Imagem: https://ranger.mbrace.com.br/img/carroceria/195.webp

501-19- Bumpers 501-19- REMOVAL AND INSTALLATION Rear Bumper Removal NOTE: Removal steps in this procedure may contain installation details. 1. Refer to: Battery Disconnect and Connect (414-01 Battery, Mounting and Cables, General Procedures). 2. Refer to: Lifting (100-02 Jacking and Lifting, Description and Operation). 3. E127733 4. Torque: 105 Nm x4 E127734 Installation 1. To install, reverse the removal procedure.
