Capa do para-choque dianteiro

Front Bumper Cover

Carroceria · página 190 de 566 · 501-19-4 · parte 1 de 5

Página 190 do Manual de Carroceria: Capa do para-choque dianteiro

Explicar no Gemini Ampliar imagem Traduzir texto

Texto da página

Link desta página: https://ranger.mbrace.com.br/carroceria/190
Imagem: https://ranger.mbrace.com.br/img/carroceria/190.webp

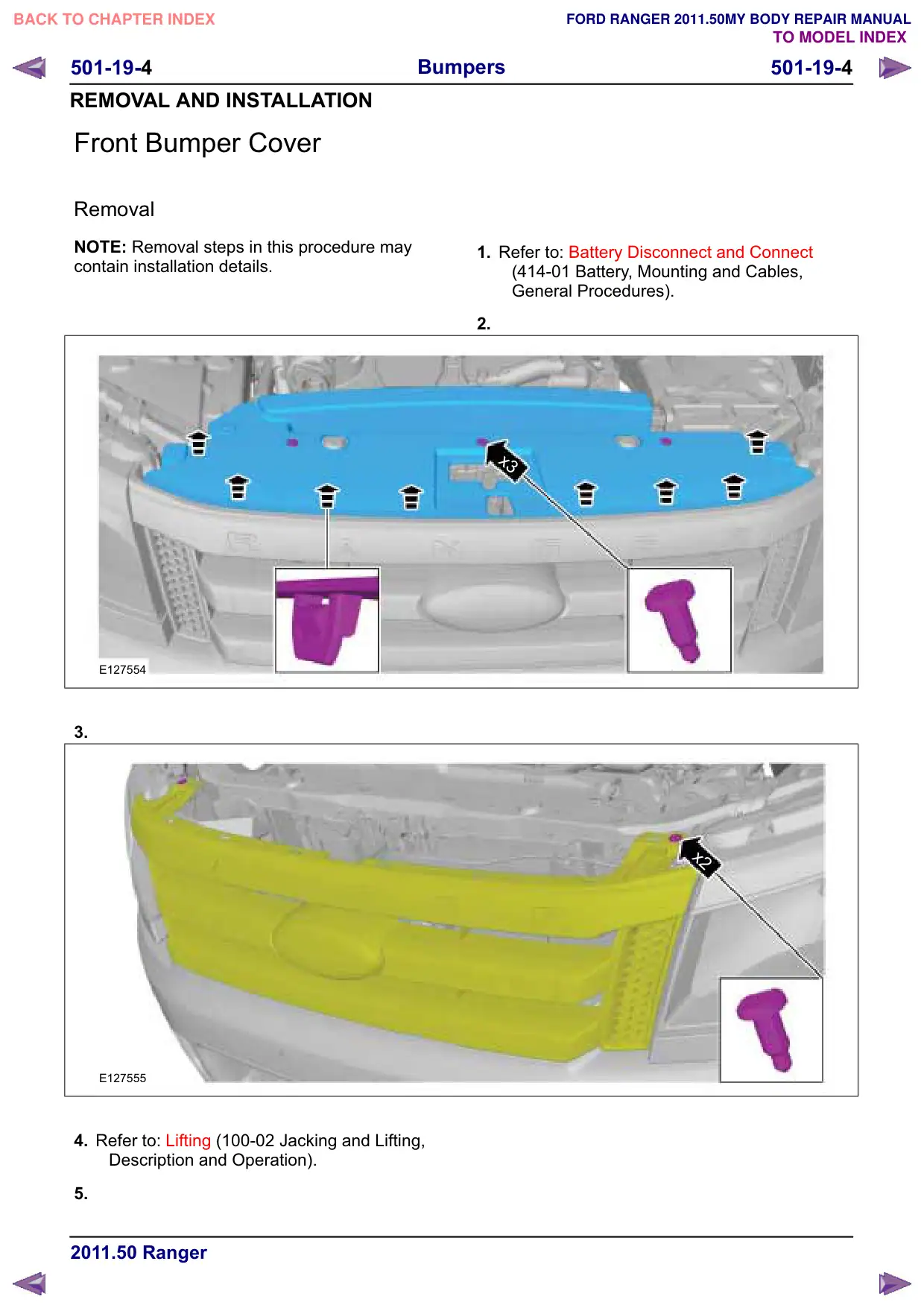

501-19-4 Bumpers 501-19-4 REMOVAL AND INSTALLATION Front Bumper Cover Removal NOTE: Removal steps in this procedure may contain installation details. E127554 3. E127555 4. Refer to: Lifting (100-02 Jacking and Lifting, Description and Operation). 5. 1. Refer to: Battery Disconnect and Connect (414-01 Battery, Mounting and Cables, General Procedures). 2. x3 x2
