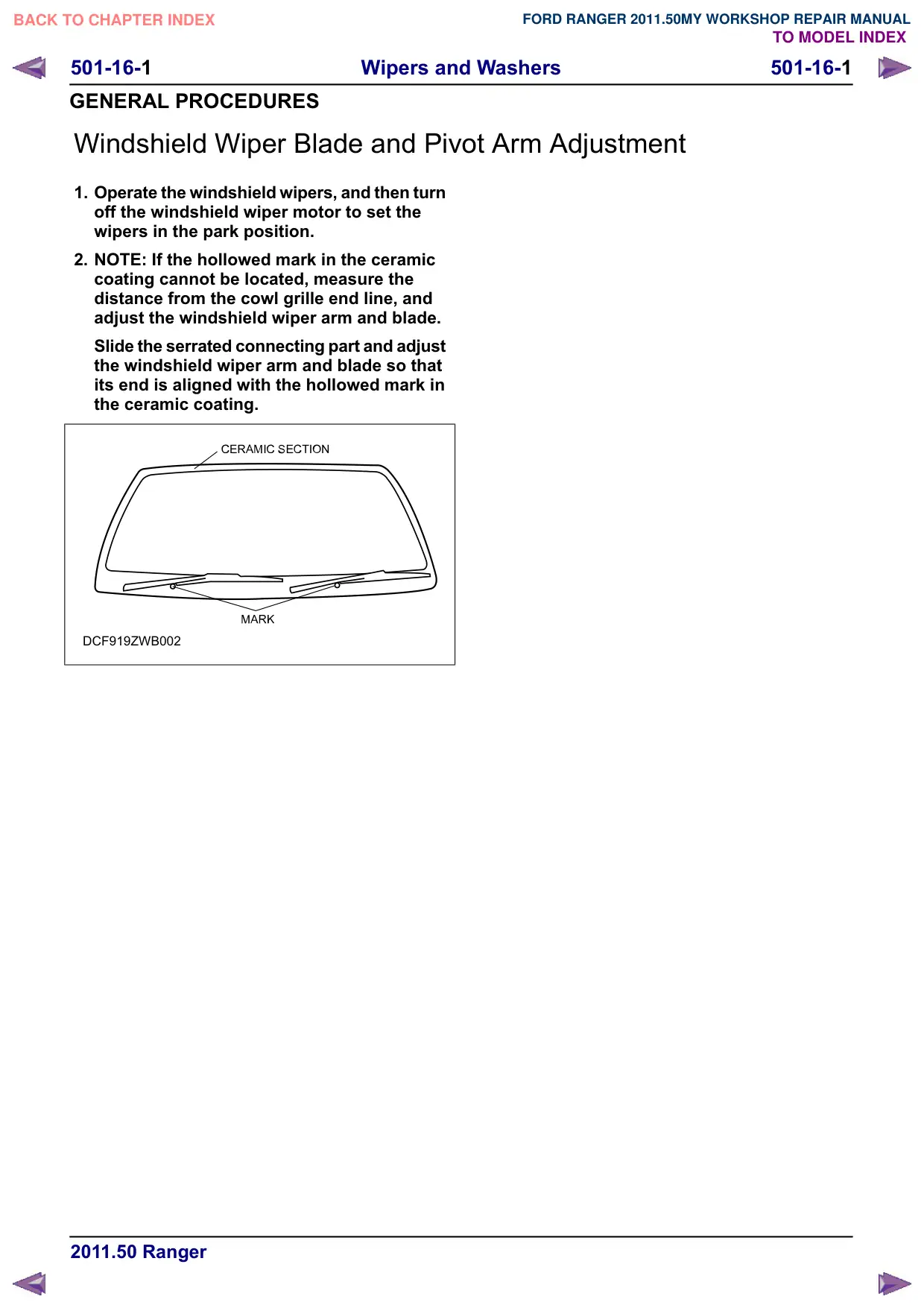

Página 1411 · Ajuste da palheta e do braço pivotante do limpador do para-brisa
Windshield Wiper Blade and Pivot Arm Adjustment
https://ranger.mbrace.com.br/oficina/1411 · imagem: https://ranger.mbrace.com.br/img/oficina/1411.webp
501-16-1
501-16-1
Wipers and Washers
GENERAL PROCEDURES
Windshield Wiper Blade and Pivot Arm Adjustment
1. Operate the windshield wipers, and then turn
off the windshield wiper motor to set the
wipers in the park position.
2. NOTE: If the hollowed mark in the ceramic
coating cannot be located, measure the
distance from the cowl grille end line, and
adjust the windshield wiper arm and blade.
Slide the serrated connecting part and adjust
the windshield wiper arm and blade so that
its end is aligned with the hollowed mark in
the ceramic coating.
DCF919ZWB002
