501-10 Bancos

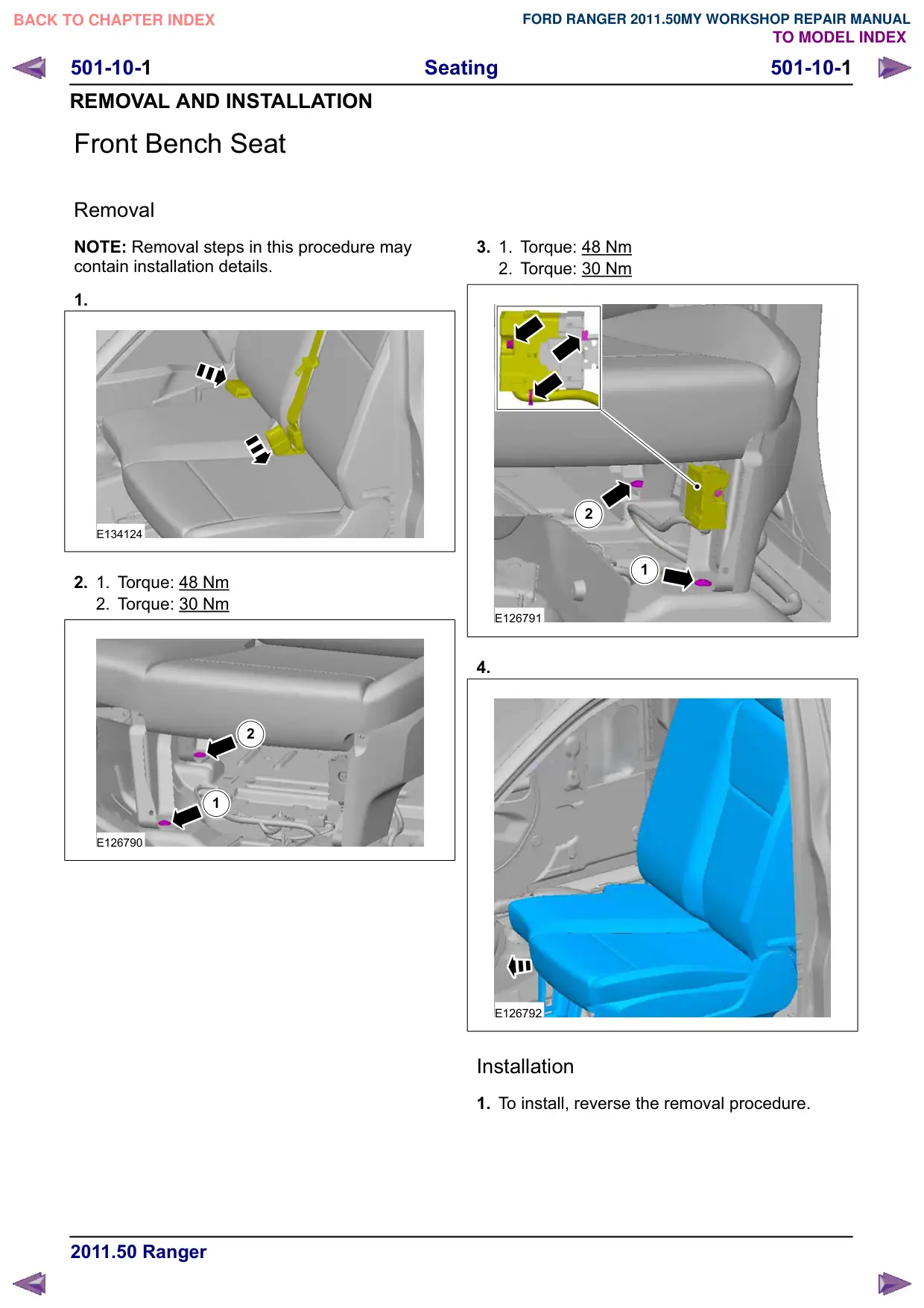

501-10-1 501-10-1 Seating REMOVAL AND INSTALLATION Front Bench Seat Removal NOTE: Removal steps in this procedure may contain installation details. 1. E134124 2. 1. Torque: 48 Nm 2. Torque: 30 Nm 2 1 E126790 3. 1. Torque: 48 Nm 2. Torque: 30 Nm 2 1 E126791 4. E126792 Installation 1. To install, reverse the removal procedure.

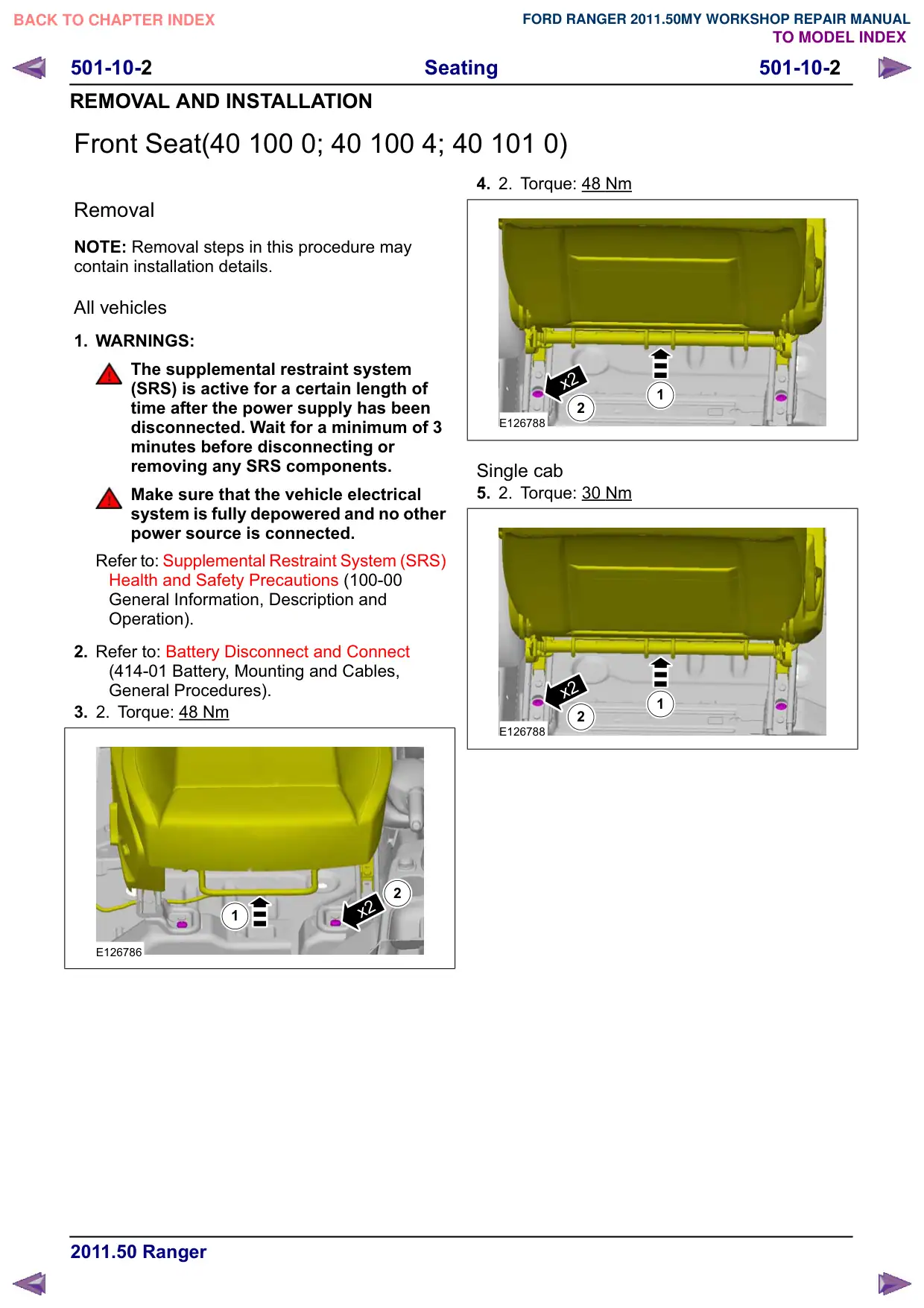

501-10-2 501-10-2 Seating REMOVAL AND INSTALLATION Front Seat(40 100 0; 40 100 4; 40 101 0) Removal NOTE: Removal steps in this procedure may contain installation details. All vehicles 1. WARNINGS: The supplemental restraint system (SRS) is active for a certain length of time after the power supply has been disconnected. Wait for a minimum of 3 minutes before disconnecting or removing any SRS components. Make sure that the vehicle electrical system is fully depowered and no other power source is connected. Refer to: Supplemental Restraint System (SRS) Health and Safety Precautions (100-00 General Information, Description and Operation). 2. Refer to: Battery Disconnect and Connect (414-01 Battery, Mounting and Cables, General Procedures). 3. 2. Torque: 48 Nm 2 x2 1 E126786 4. 2. Torque: 48 Nm x2 1 2 E126788 Single cab 5. 2. Torque: 30 Nm x2 1 2 E126788

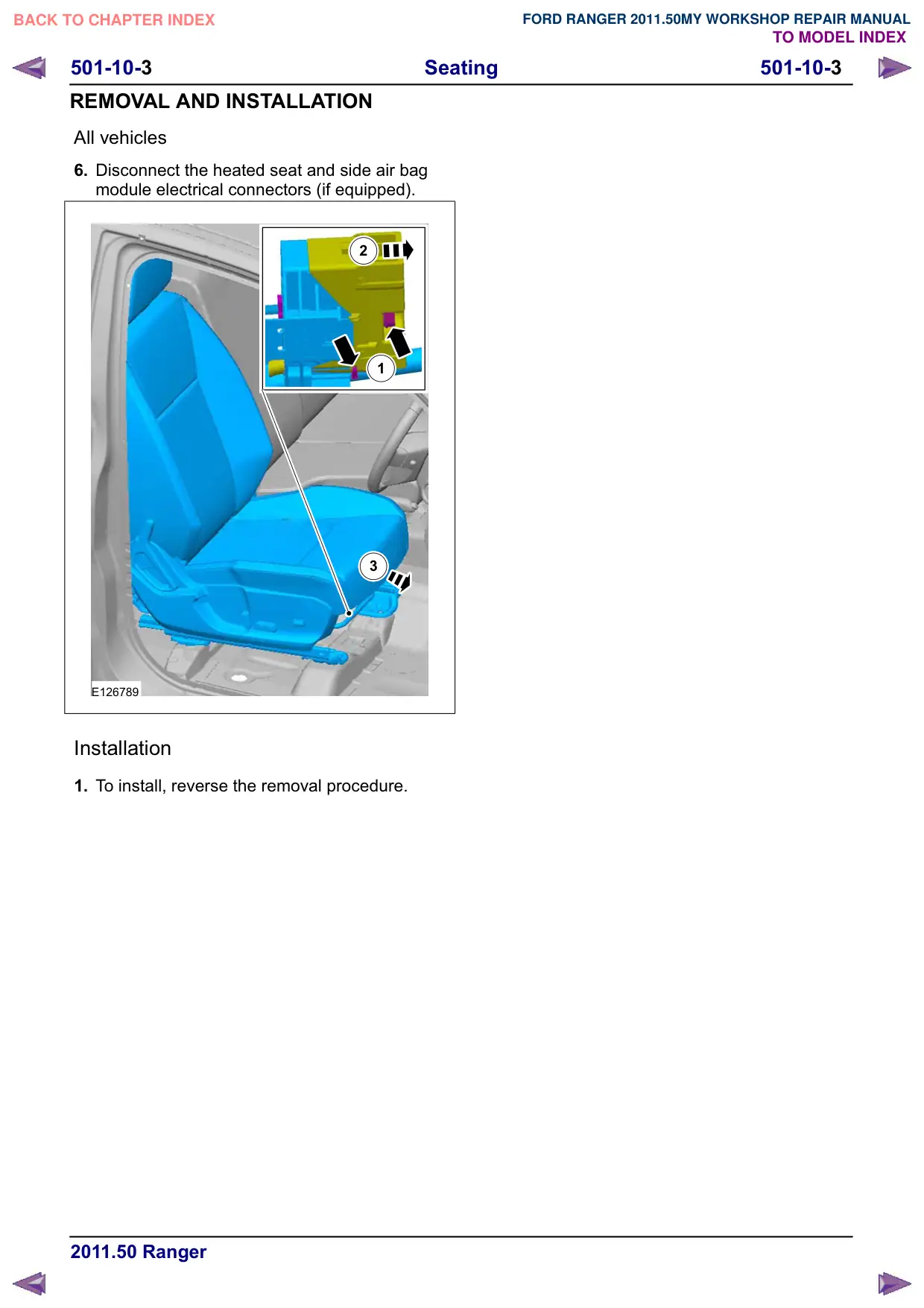

501-10-3 501-10-3 Seating REMOVAL AND INSTALLATION All vehicles 6. Disconnect the heated seat and side air bag module electrical connectors (if equipped). 2 1 3 E126789 Installation 1. To install, reverse the removal procedure.
