415-01-1
Information and Entertainment System
415-01-1
.
SECTION 415-01 Information and Entertainment
System
VEHICLE APPLICATION: 2011.50 Ranger
CONTENTS
REMOVAL AND INSTALLATION
Audio Unit...........................................................................................................................
Bluetooth Module............................................................................................
Audio Unit Antenna.............................................................................................................
Information and Entertainment Display Unit.......................................................................
PAGE
415-01-2
(33 635 0)
415-01-5
415-01-6
415-01-10
415-01-2
Information and Entertainment System
415-01-2
REMOVAL AND INSTALLATION
Audio Unit
Removal
WARNING: The supplemental restraint
system (SRS) is active for a certain length
of time after the power supply has been
disconnected. Wait for a minimum of 3
minutes before disconnecting or removing
any SRS components.
NOTE: Removal steps in this procedure may
contain installation details.
2
E127928
1. Refer to: Supplemental Restraint System (SRS)
Health and Safety Precautions (100-00
General Information, Description and
Operation).
Refer to: Battery Disconnect and Connect
(414-01 Battery, Mounting and Cables,
General Procedures).
Vehicles with single DIN Standard audio unit
2.
x8
1
415-01-3
Information and Entertainment System
415-01-3
REMOVAL AND INSTALLATION

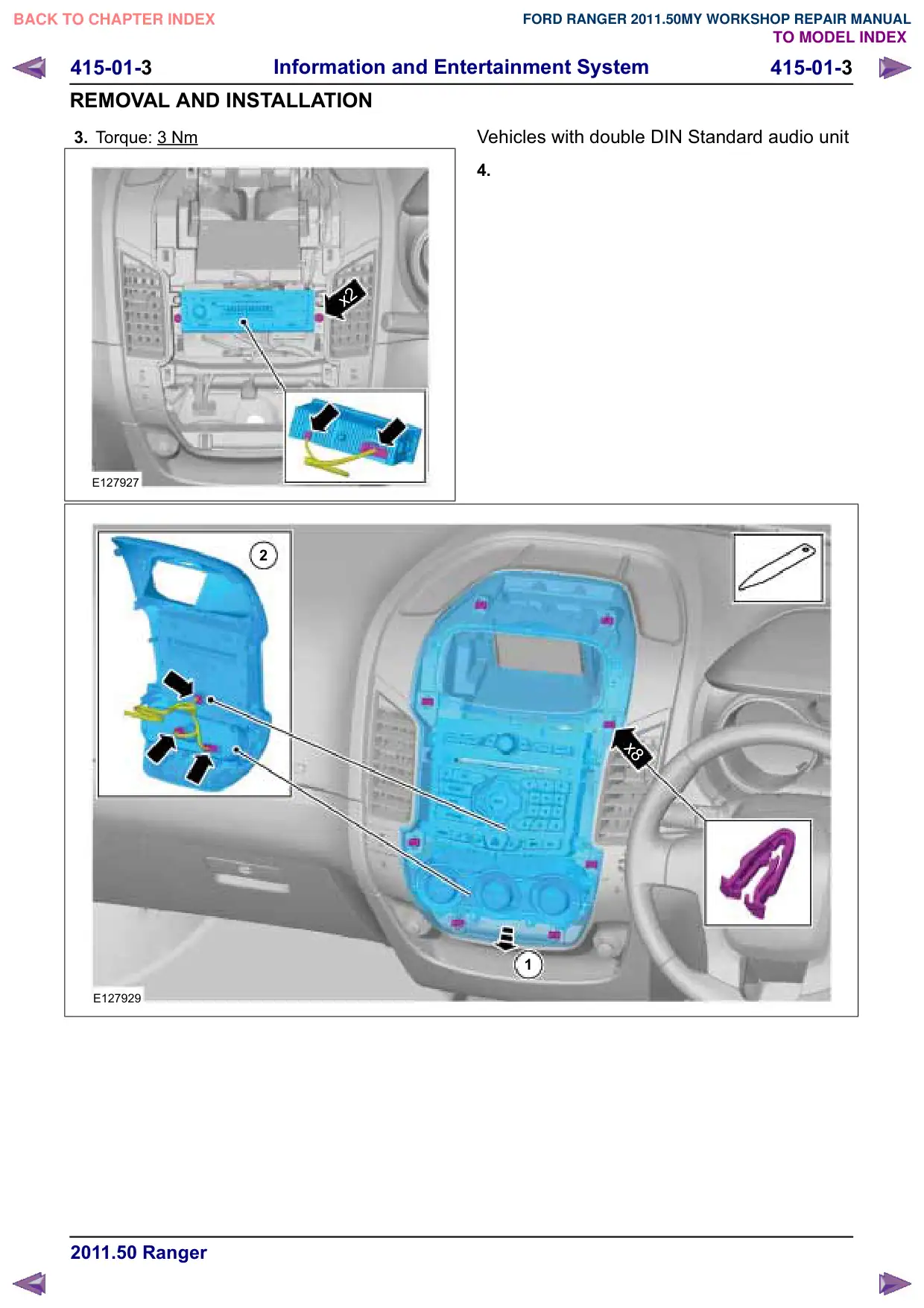

3. Torque: 3 Nm
x2
E127927
2
E127929
Vehicles with double DIN Standard audio unit
4.
x8
1
415-01-4
Information and Entertainment System
415-01-4
REMOVAL AND INSTALLATION

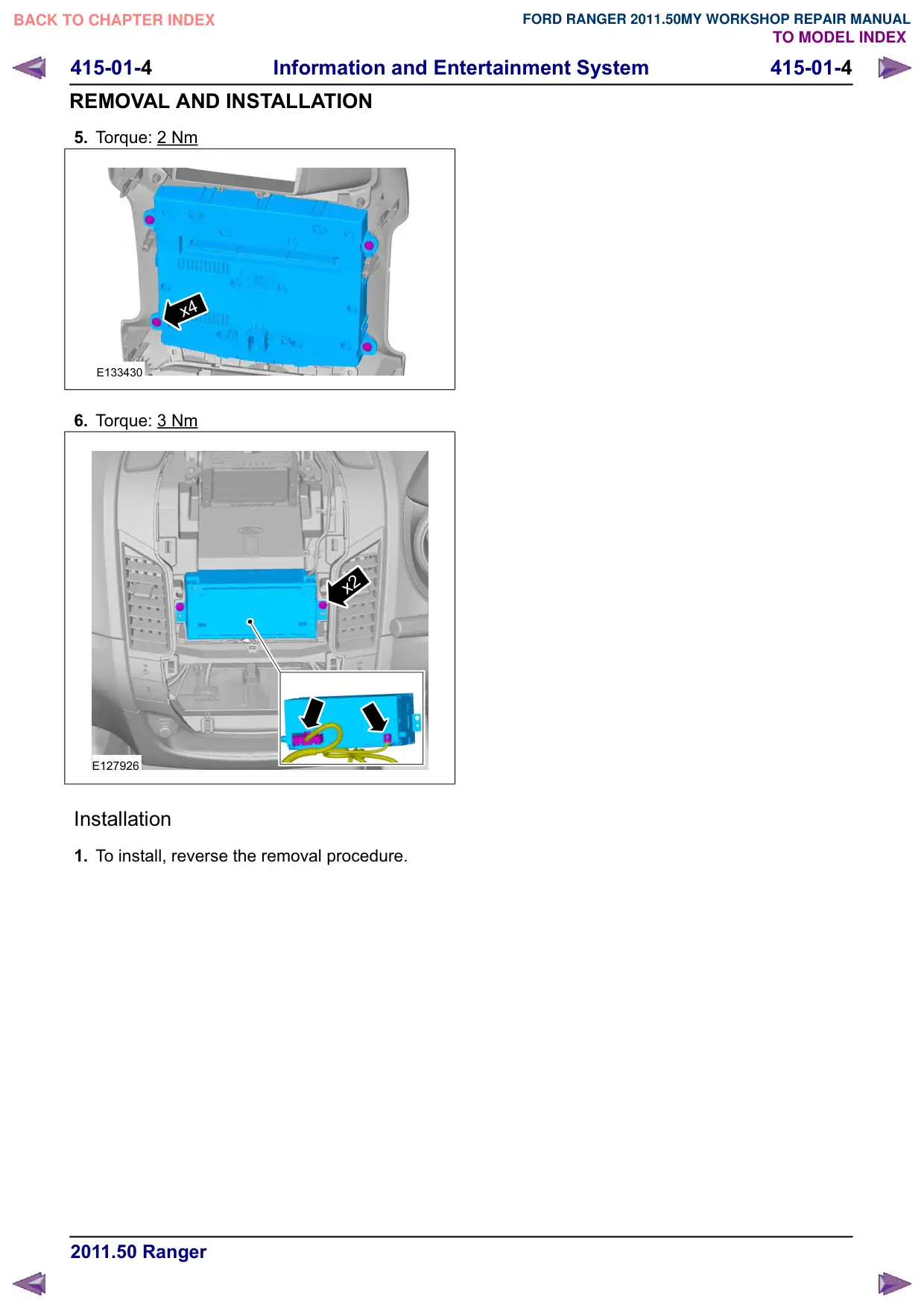

5. Torque: 2 Nm
x4
E133430
6. Torque: 3 Nm
x2
E127926
Installation
1. To install, reverse the removal procedure.
415-01-5
Information and Entertainment System
415-01-5
REMOVAL AND INSTALLATION

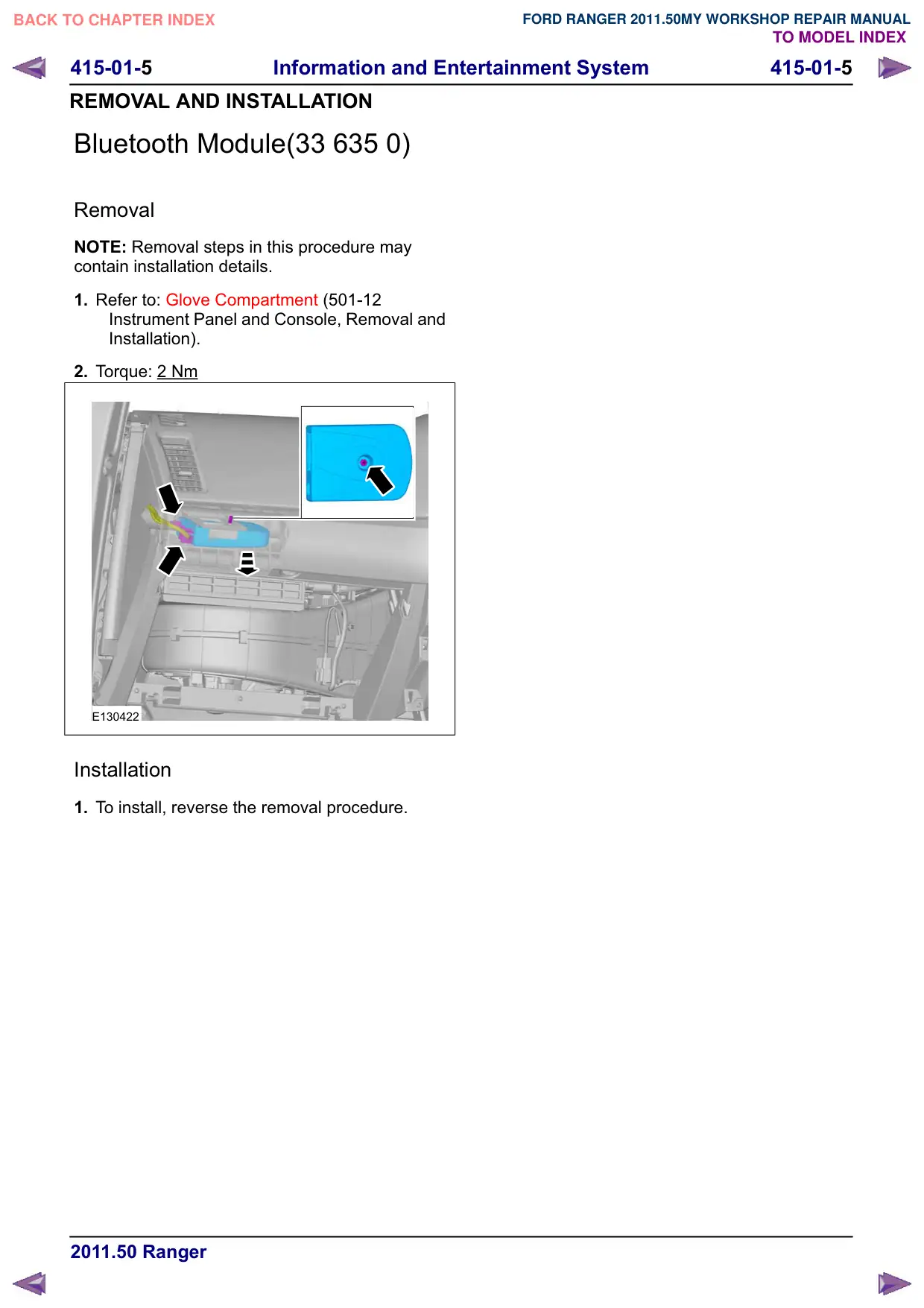

Bluetooth Module(33 635 0)
Removal
NOTE: Removal steps in this procedure may
contain installation details.
1. Refer to: Glove Compartment (501-12
Instrument Panel and Console, Removal and
Installation).
2. Torque: 2 Nm
E130422
Installation
1. To install, reverse the removal procedure.
415-01-6
Information and Entertainment System
415-01-6
REMOVAL AND INSTALLATION
Audio Unit Antenna
Removal
NOTE: Removal steps in this procedure may
contain installation details.
1. On both sides.
Refer to: A-Pillar Trim Panel (501-05 Interior
Trim and Ornamentation, Removal and
Installation).
2. On both sides.
Refer to: C-Pillar Upper Trim Panel (501-05
Interior Trim and Ornamentation, Removal
and Installation).
Refer to: C-Pillar Lower Trim Panel (501-05
Interior Trim and Ornamentation, Removal
and Installation).
3.
E125909
4. NOTE: This step is not necessary when
installing a new component.
x2
x2
E72966
5. On both sides.
415-01-8
Information and Entertainment System
415-01-8
REMOVAL AND INSTALLATION

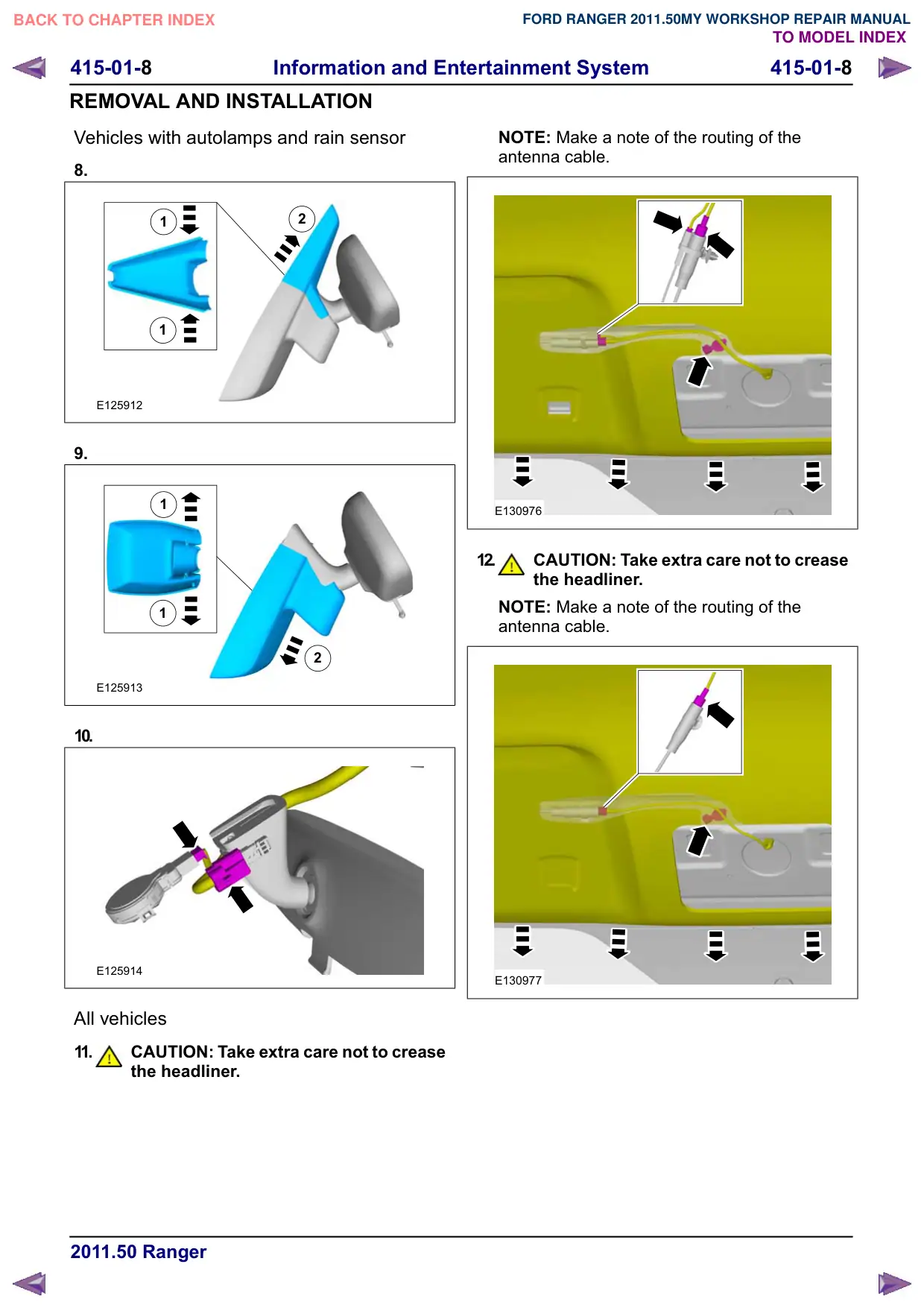

Vehicles with autolamps and rain sensor
8.
1
2
1
E125912
9.
1
1
2
E125913
10.
E125914
All vehicles
11.
CAUTION: Take extra care not to crease
the headliner.
NOTE: Make a note of the routing of the
antenna cable.
E130976
12.
CAUTION: Take extra care not to crease
the headliner.
NOTE: Make a note of the routing of the
antenna cable.
E130977
415-01-
Information and Entertainment System
415-01-
REMOVAL AND INSTALLATION

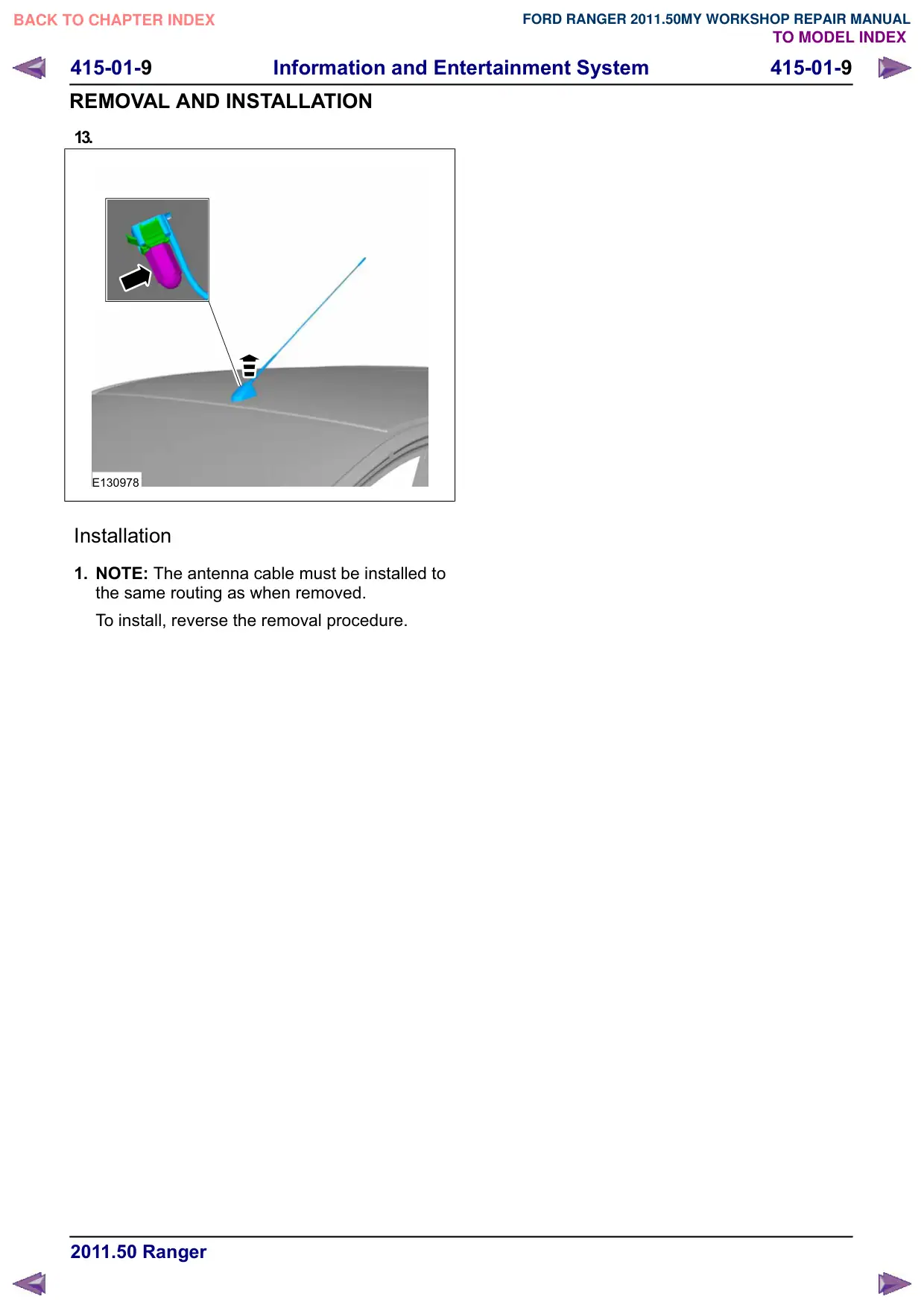

13.
E130978
Installation
1. NOTE: The antenna cable must be installed to
the same routing as when removed.
To install, reverse the removal procedure.
415-01-10
Information and Entertainment System
415-01-10
REMOVAL AND INSTALLATION

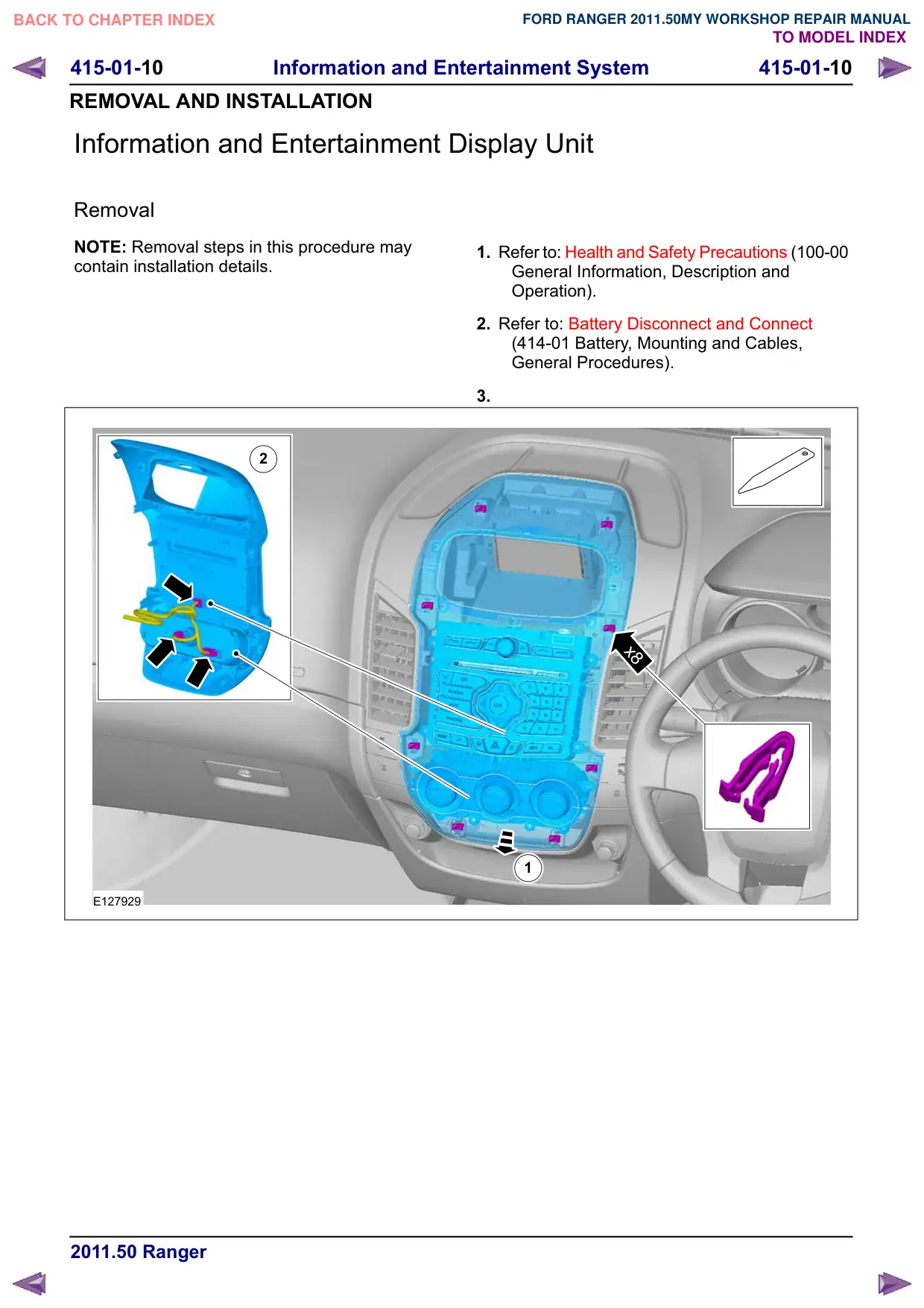

Information and Entertainment Display Unit
Removal
NOTE: Removal steps in this procedure may
contain installation details.
2
E127929
1. Refer to: Health and Safety Precautions (100-00
General Information, Description and
Operation).
2. Refer to: Battery Disconnect and Connect
(414-01 Battery, Mounting and Cables,
General Procedures).
3.
x8
1
415-01-11
Information and Entertainment System
415-01-11
REMOVAL AND INSTALLATION

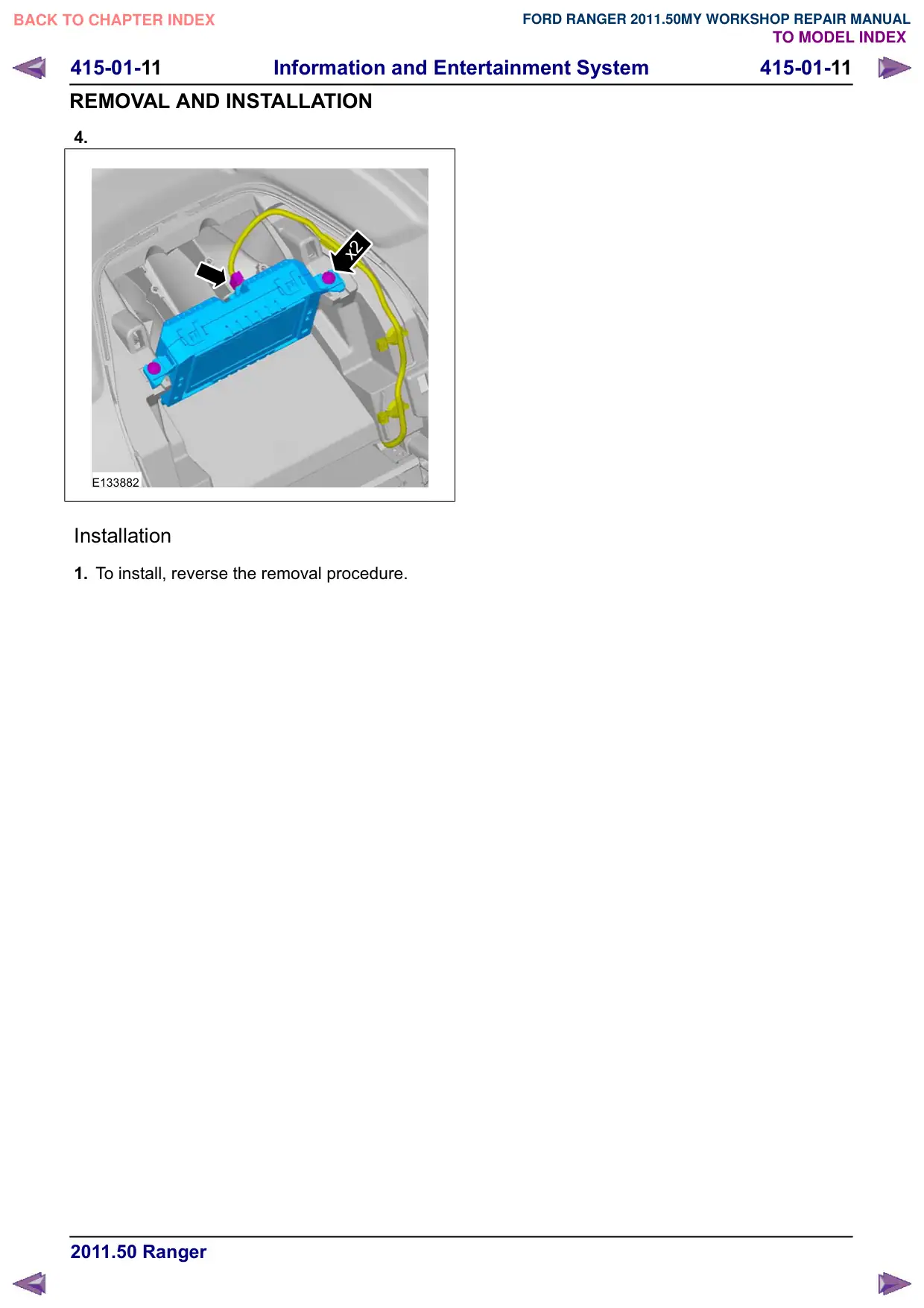

4.
x2
E133882
Installation
1. To install, reverse the removal procedure.
