414-01 Bateria, suporte e cabos
Texto completo da seção, página por página. Toque no título para ver a página com a imagem.
- Índice da seção p. 1243
- Desconexão e conexão da bateria p. 1244
- Bateria p. 1245
- Bandeja da bateria p. 1246
Página 1243 · Índice da seção
Contents
https://ranger.mbrace.com.br/oficina/1243 · imagem: https://ranger.mbrace.com.br/img/oficina/1243.webp
414-01-1
Battery, Mounting and Cables
414-01-1
.
SECTION 414-01 Battery, Mounting and Cables
VEHICLE APPLICATION: 2011.50 Ranger
CONTENTS
GENERAL PROCEDURES
Battery Disconnect and Connect........................................................................................
REMOVAL AND INSTALLATION
Battery................................................................................................................................
Battery Tray........................................................................................................................
PAGE
414-01-2
414-01-3
414-01-4
Página 1244 · Desconexão e conexão da bateria
Battery Disconnect and Connect
https://ranger.mbrace.com.br/oficina/1244 · imagem: https://ranger.mbrace.com.br/img/oficina/1244.webp
414-01-2
Battery, Mounting and Cables
414-01-2
GENERAL PROCEDURES
Battery Disconnect and Connect
Activation
1. Obtain and record the audio unit keycode and
preset radio frequencies.
2.
E130226
3. Torque: 27 Nm
1
2
E130227
Página 1245 · Bateria

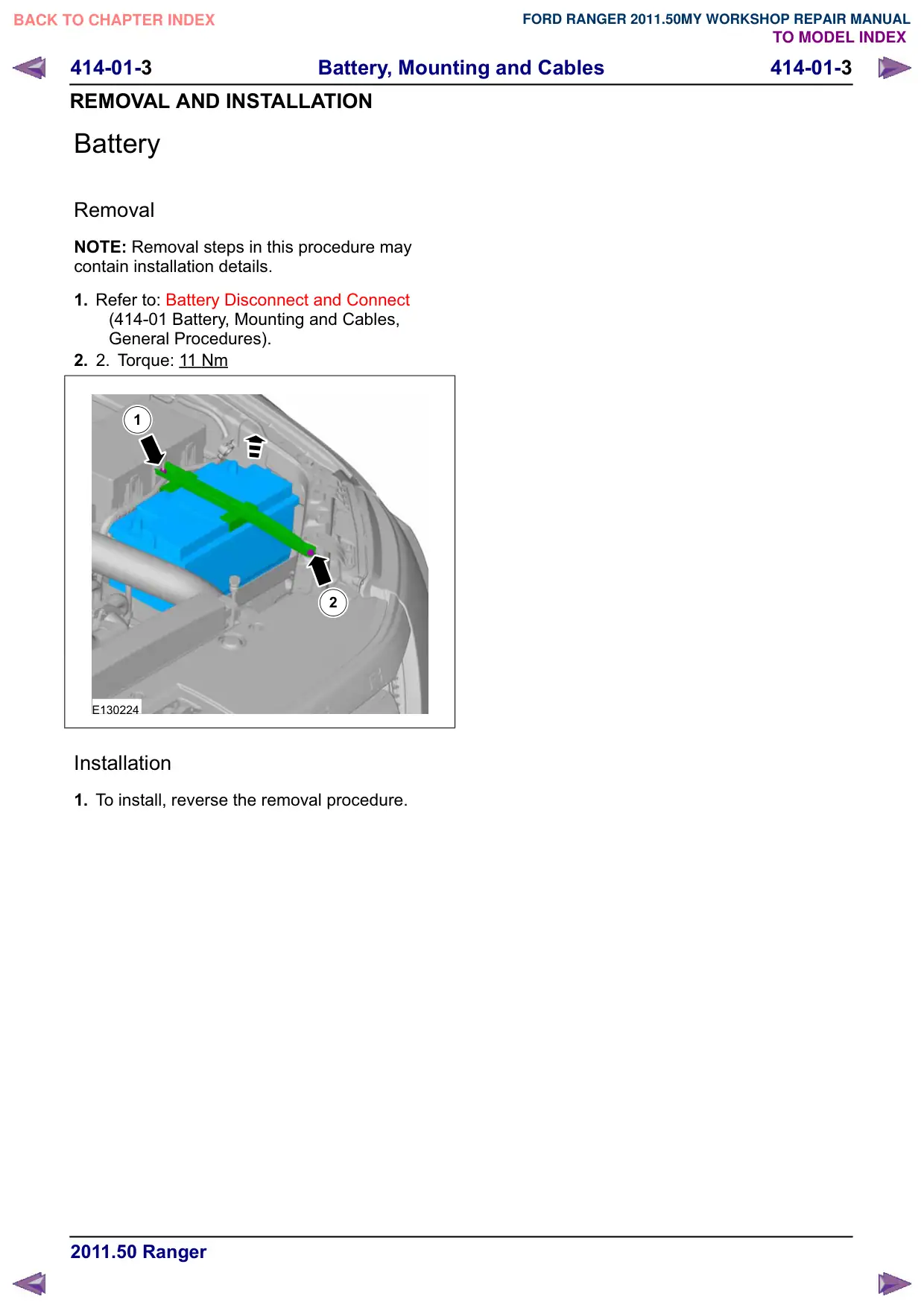

Battery
https://ranger.mbrace.com.br/oficina/1245 · imagem: https://ranger.mbrace.com.br/img/oficina/1245.webp
414-01-3
Battery, Mounting and Cables
414-01-3
REMOVAL AND INSTALLATION
Battery
Removal
NOTE: Removal steps in this procedure may
contain installation details.
1. Refer to: Battery Disconnect and Connect
(414-01 Battery, Mounting and Cables,
General Procedures).
2.
2.
Torque: 11 Nm
1
2
E130224
Installation
1. To install, reverse the removal procedure.
Página 1246 · Bandeja da bateria
Battery Tray
https://ranger.mbrace.com.br/oficina/1246 · imagem: https://ranger.mbrace.com.br/img/oficina/1246.webp
414-01-4
Battery, Mounting and Cables
414-01-4
REMOVAL AND INSTALLATION
Battery Tray
Removal
NOTE: Removal steps in this procedure may
contain installation details.
1. Refer to: Battery Disconnect and Connect
(414-01 Battery, Mounting and Cables,
General Procedures).
2. Refer to: Battery (414-01 Battery, Mounting and
Cables, Removal and Installation).
3.
E130225
Installation
1. To install, reverse the removal procedure.
