Exhaust System – 2.5L Duratec-HE (122kW/165PS) - MI4 309-00A-1 309-00A-1 . SECTION 309-00A Exhaust System – 2.5L Duratec-HE (122kW/165PS) - MI4 VEHICLE APPLICATION: 2011.50 Ranger CONTENTS DESCRIPTION AND OPERATION Exhaust System.................................................................................................................. REMOVAL AND INSTALLATION Catalytic Converter............................................................................................................. Front Muffler....................................................................................................................... Rear Muffler........................................................................................................................ PAGE 309-00A-2 309-00A-5 309-00A-7 309-00A-8

Exhaust System – 2.5L Duratec-HE (122kW/165PS) - MI4 309-00A-2 309-00A-2 DESCRIPTION AND OPERATION Exhaust System Exhaust flexible pipes are very fragile and must not be subjected to any load. They must be 2.5L E100 2 1 E128287 Item Description 1 Intermidiate muffler 2 Exhaust hanger insulator 3 Exhaust flexible pipe 4 Heatsheild secured against twisting and bending during any work on the exhaust system. 7 6 5 4 3 8 2 Item Description 5 Catalyst monitor sensor 6 Heated oxygen Sensor 7 Exhaust manifold 8 Heatsheild Heatsheild

Exhaust System – 2.5L Duratec-HE (122kW/165PS) - MI4 309-00A-3 309-00A-3 DESCRIPTION AND OPERATION 2.5L 2 1 E128288 Item Description 1 Intermidiate muffler 2 Exhaust hanger insulator 3 Exhaust flexible pipe 4 Heatsheild All Vehicles 1 1 E128289 6 5 4 3 7 8 2 Item Description 5 Heated oxygen sensor 6 Exhaust manifold 7 Heatsheild 8 Heatsheild 2 1

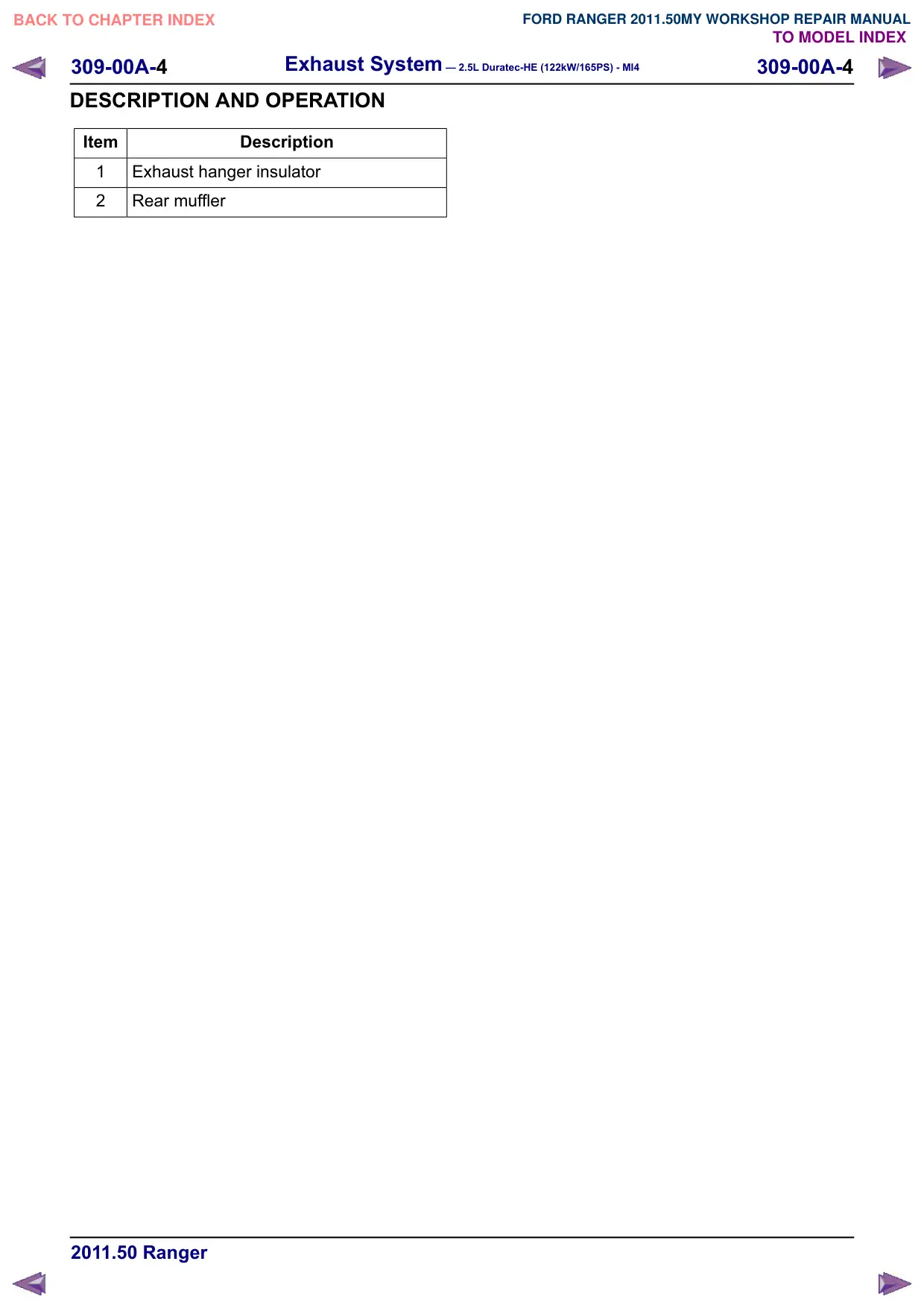

Exhaust System – 2.5L Duratec-HE (122kW/165PS) - MI4 309-00A-4 309-00A-4 DESCRIPTION AND OPERATION Item Description 1 Exhaust hanger insulator 2 Rear muffler

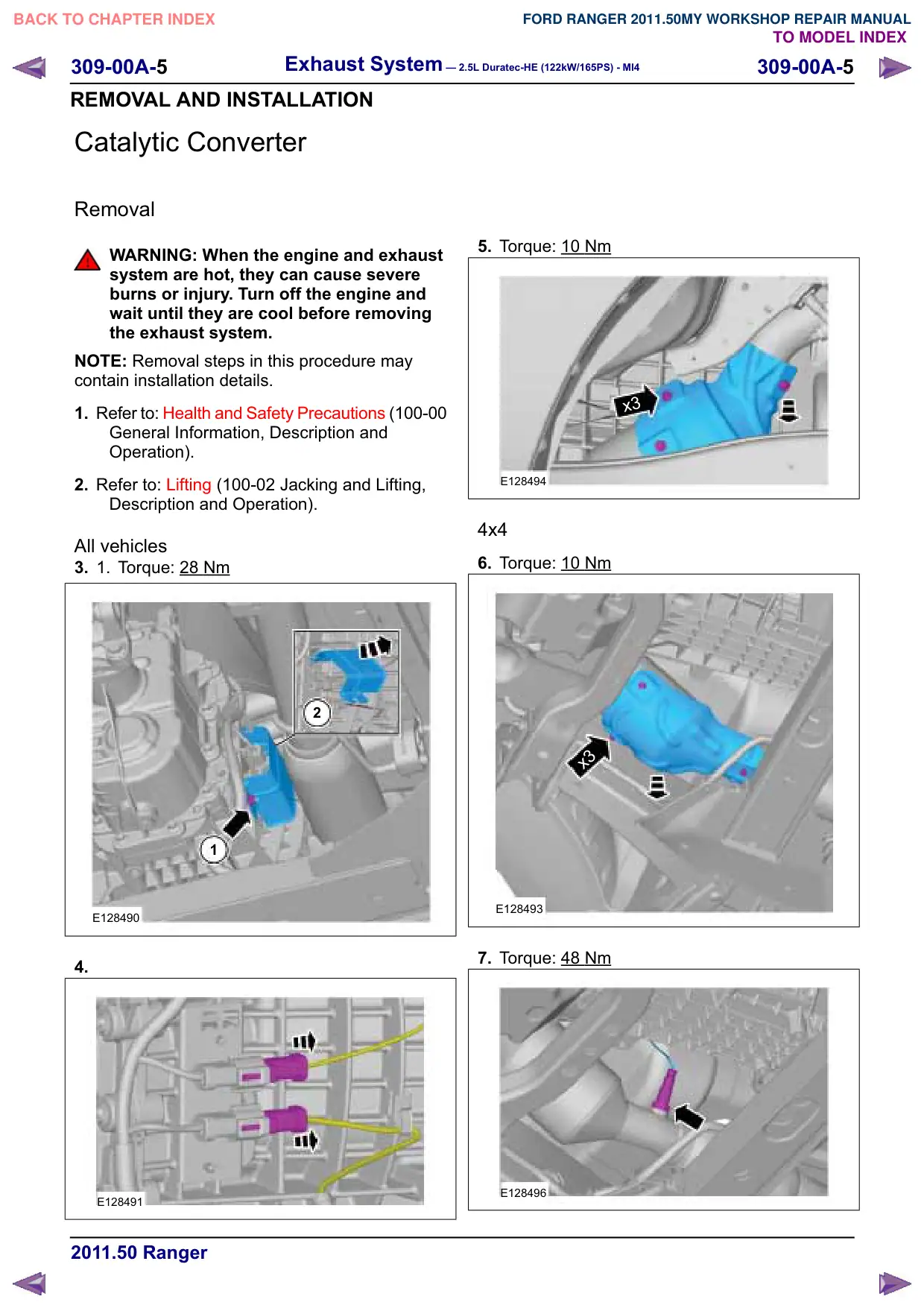

309-00A-5 Exhaust System – 2.5L Duratec-HE (122kW/165PS) - MI4 309-00A-5 REMOVAL AND INSTALLATION Catalytic Converter Removal WARNING: When the engine and exhaust system are hot, they can cause severe burns or injury. Turn off the engine and wait until they are cool before removing the exhaust system. NOTE: Removal steps in this procedure may contain installation details. 1. Refer to: Health and Safety Precautions (100-00 General Information, Description and Operation). 2. Refer to: Lifting (100-02 Jacking and Lifting, Description and Operation). All vehicles 3. 1. Torque: 28 Nm 2 1 E128490 4. E128491 5. Torque: 10 Nm x3 E128494 4x4 6. Torque: 10 Nm x3 E128493 7. Torque: 48 Nm E128496

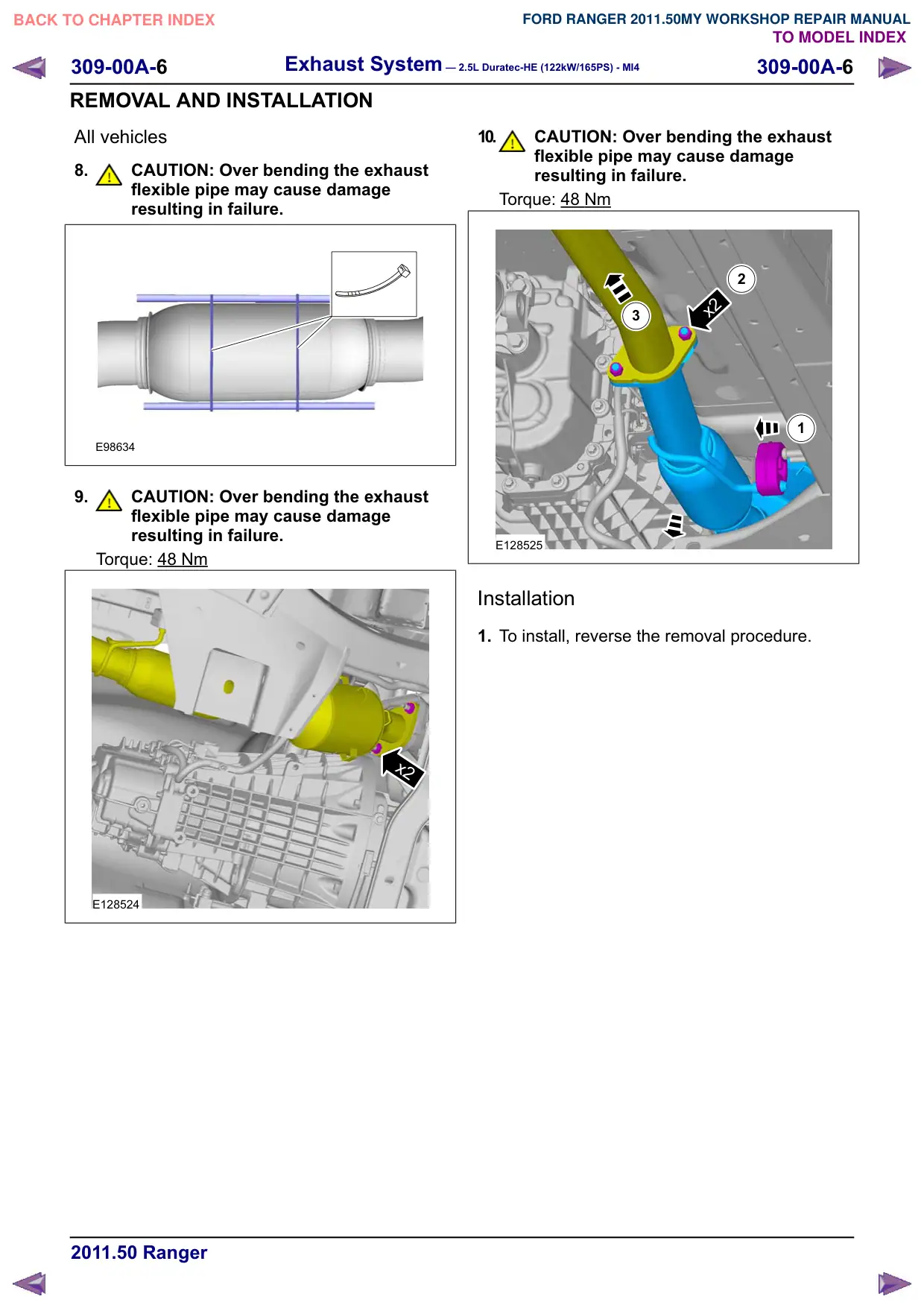

Exhaust System – 2.5L Duratec-HE (122kW/165PS) - MI4 309-00A-6 309-00A-6 REMOVAL AND INSTALLATION All vehicles 8. CAUTION: Over bending the exhaust flexible pipe may cause damage resulting in failure. E98634 9. CAUTION: Over bending the exhaust flexible pipe may cause damage resulting in failure. Torque: 48 Nm x2 E128524 10. CAUTION: Over bending the exhaust flexible pipe may cause damage resulting in failure. Torque: 48 Nm 2 x2 3 1 E128525 Installation 1. To install, reverse the removal procedure.

Exhaust System – 2.5L Duratec-HE (122kW/165PS) - MI4 309-00A-7 309-00A-7 REMOVAL AND INSTALLATION Front Muffler Removal WARNING: When the engine and exhaust system are hot, they can cause severe burns or injury. Turn off the engine and wait until they are cool before removing the exhaust system. NOTE: Removal steps in this procedure may contain installation details. x2 E131139 Installation 1. To install, reverse the removal procedure. 1. Refer to: Health and Safety Precautions (100-00 General Information, Description and Operation). 2. Refer to: Lifting (100-02 Jacking and Lifting, Description and Operation). 3. Torque: 48 Nm x2

Exhaust System – 2.5L Duratec-HE (122kW/165PS) - MI4 309-00A-8 309-00A-8 REMOVAL AND INSTALLATION Rear Muffler Removal WARNING: When the engine and exhaust system are hot, they can cause severe burns or injury. Turn off the engine and wait until they are cool before removing the exhaust system. NOTE: Removal steps in this procedure may contain installation details. 1. Refer to: Health and Safety Precautions (100-00 General Information, Description and Operation). 2. Refer to: Lifting (100-02 Jacking and Lifting, Description and Operation). 3. Torque: 48 Nm x2 E128353 4. 2 1 E127961 5.

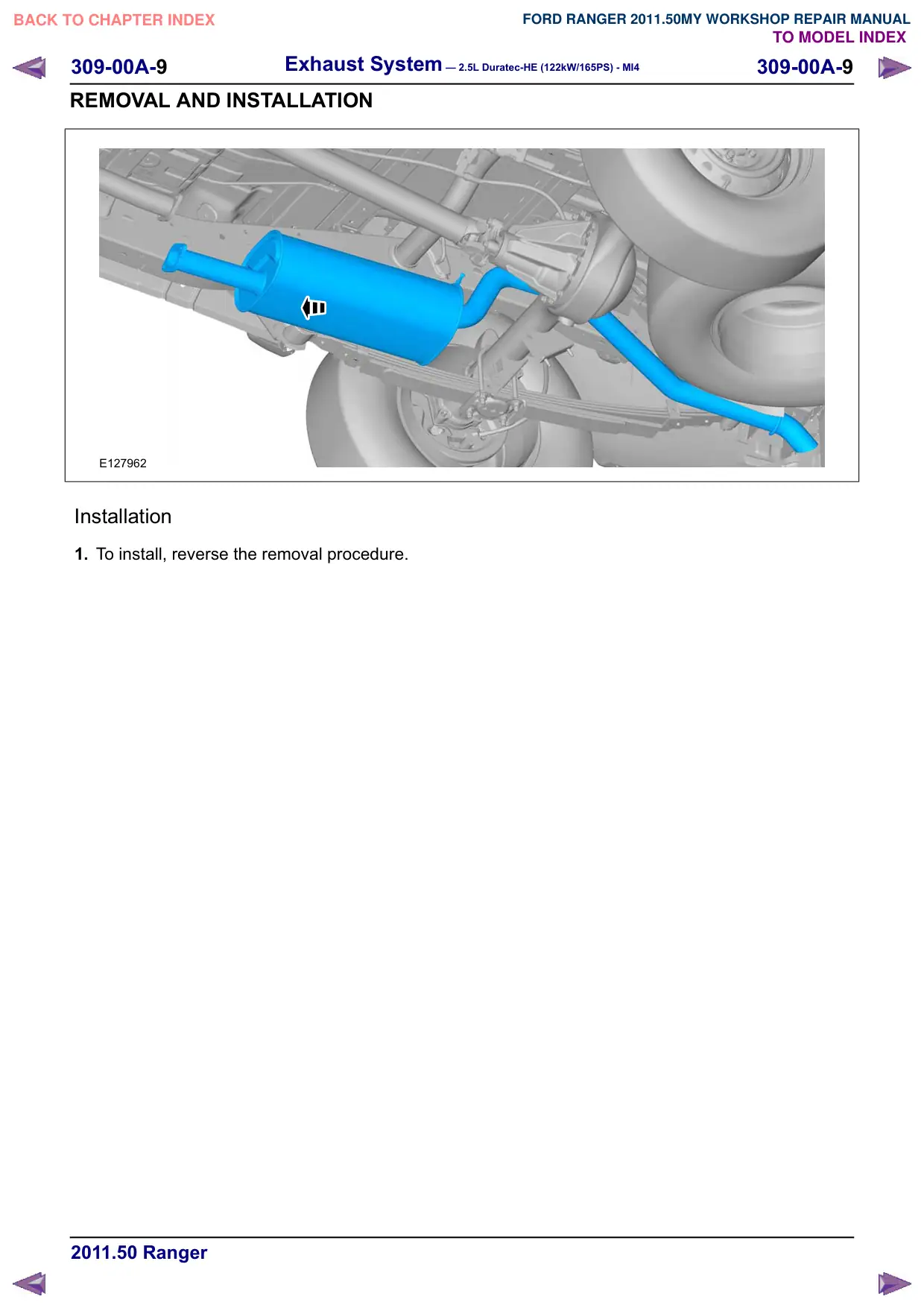

Exhaust System – 2.5L Duratec-HE (122kW/165PS) - MI4 309-00A- 309-00A- REMOVAL AND INSTALLATION E127962 Installation 1. To install, reverse the removal procedure.
