308-07B Caixa de transferência – câmbio automático

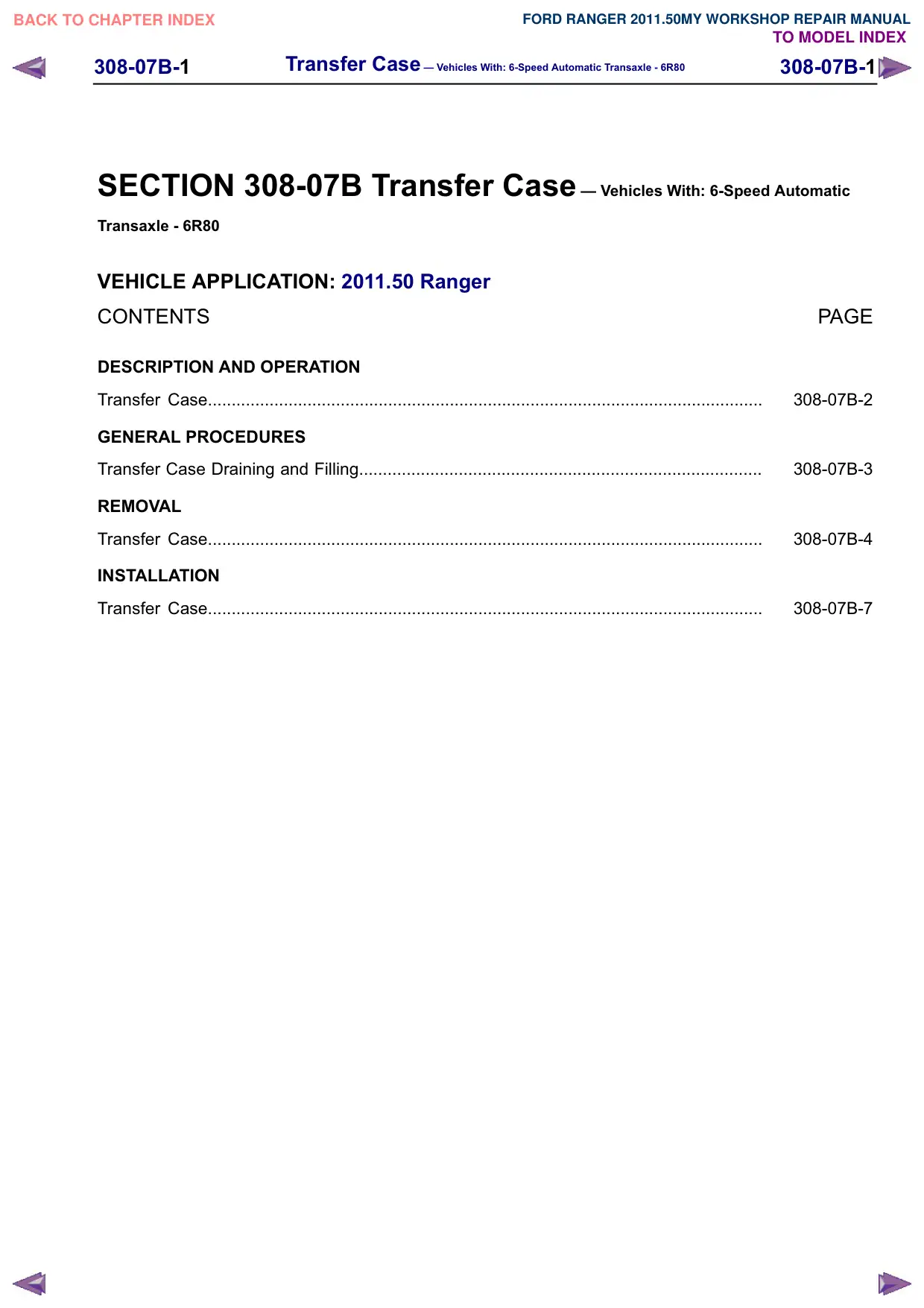

Transfer Case – Vehicles With: 6-Speed Automatic Transaxle - 6R80 308-07B-1 308-07B-1 . SECTION 308-07B Transfer Case – Vehicles With: 6-Speed Automatic Transaxle - 6R80 VEHICLE APPLICATION: 2011.50 Ranger CONTENTS DESCRIPTION AND OPERATION Transfer Case..................................................................................................................... GENERAL PROCEDURES Transfer Case Draining and Filling..................................................................................... REMOVAL Transfer Case..................................................................................................................... INSTALLATION Transfer Case..................................................................................................................... PAGE 308-07B-2 308-07B-3 308-07B-4 308-07B-7

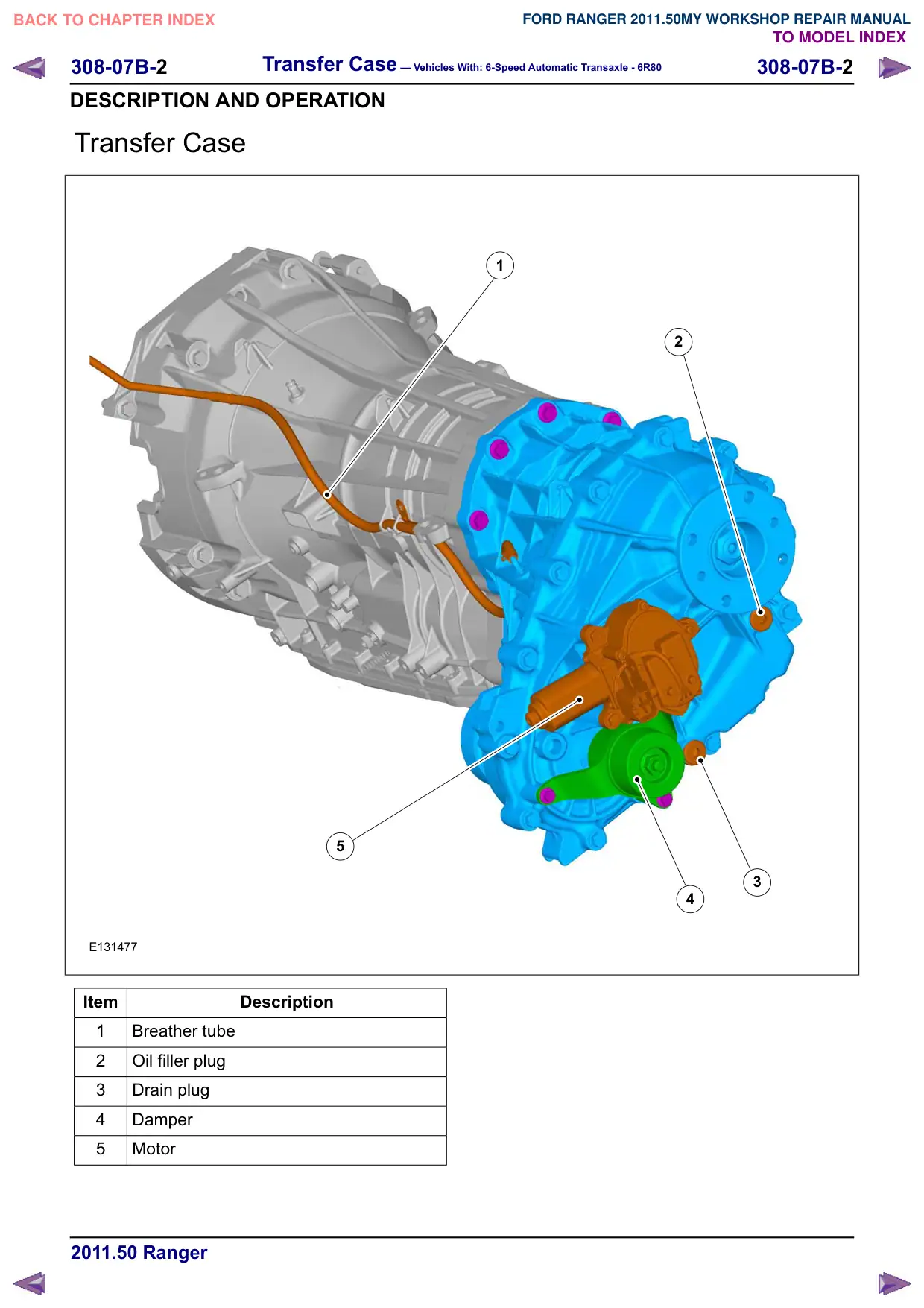

Transfer Case – Vehicles With: 6-Speed Automatic Transaxle - 6R80 308-07B-2 308-07B-2 DESCRIPTION AND OPERATION Transfer Case 5 E131477 Item Description 1 Breather tube 2 Oil filler plug 3 Drain plug 4 Damper 5 Motor 1 2 3 4

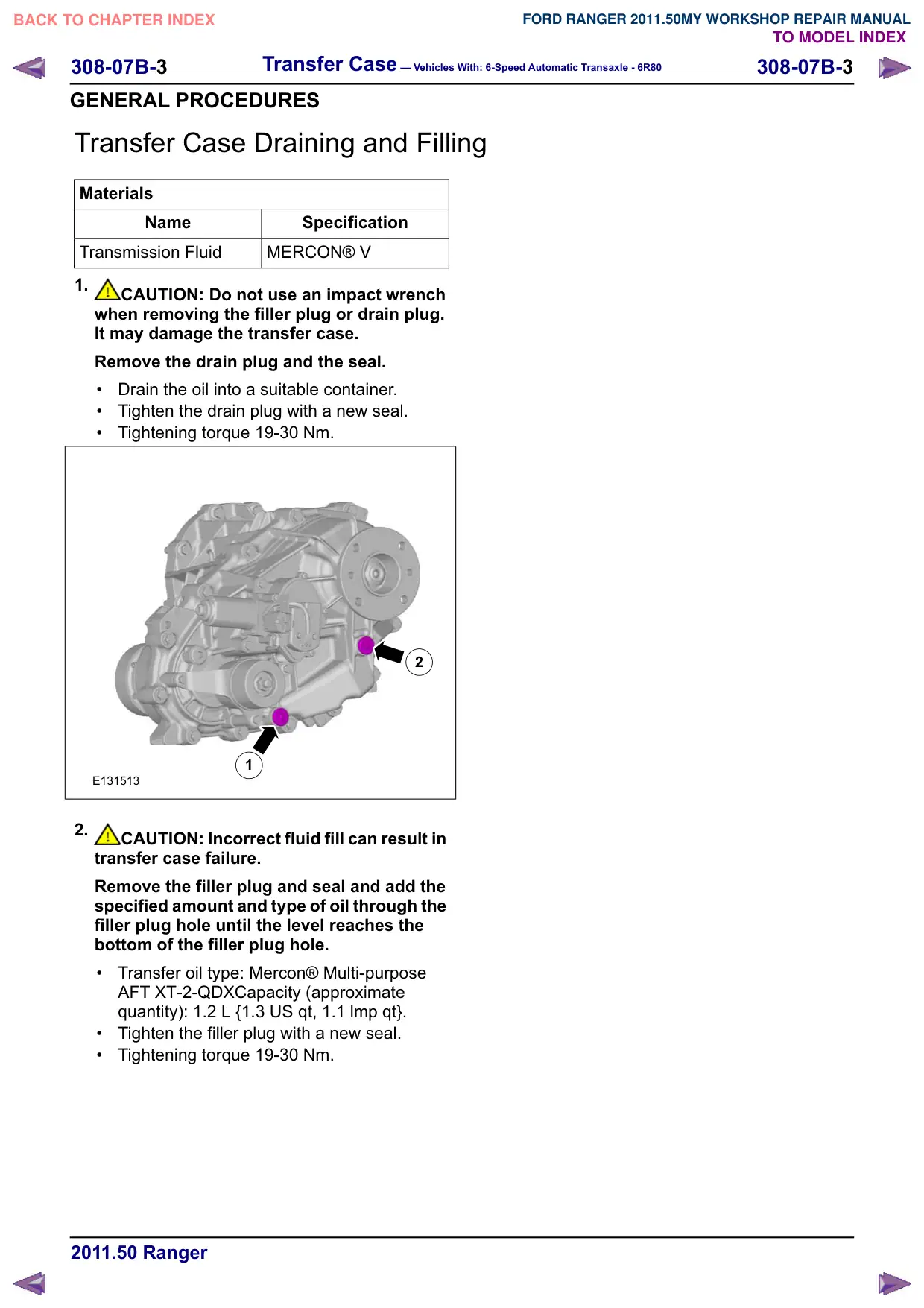

Transfer Case – Vehicles With: 6-Speed Automatic Transaxle - 6R80 308-07B-3 308-07B-3 GENERAL PROCEDURES Transfer Case Draining and Filling Materials Name Specification Transmission Fluid 0(5&21Š 9 1. CAUTION: Do not use an impact wrench when removing the filler plug or drain plug. It may damage the transfer case. Remove the drain plug and the seal. ‡ Drain the oil into a suitable container. ‡ Tighten the drain plug with a new seal. ‡ Tightening torque 19-30 Nm. 2 1 E131513 2. CAUTION: Incorrect fluid fill can result in transfer case failure. Remove the filler plug and seal and add the specified amount and type of oil through the filler plug hole until the level reaches the bottom of the filler plug hole. ‡ Transfer oil type: Mercon® Multi-purpose AFT XT-2-QDXCapacity (approximate quantity): 1.2 L {1.3 US qt, 1.1 lmp qt}. ‡ Tighten the filler plug with a new seal. ‡ Tightening torque 19-30 Nm.

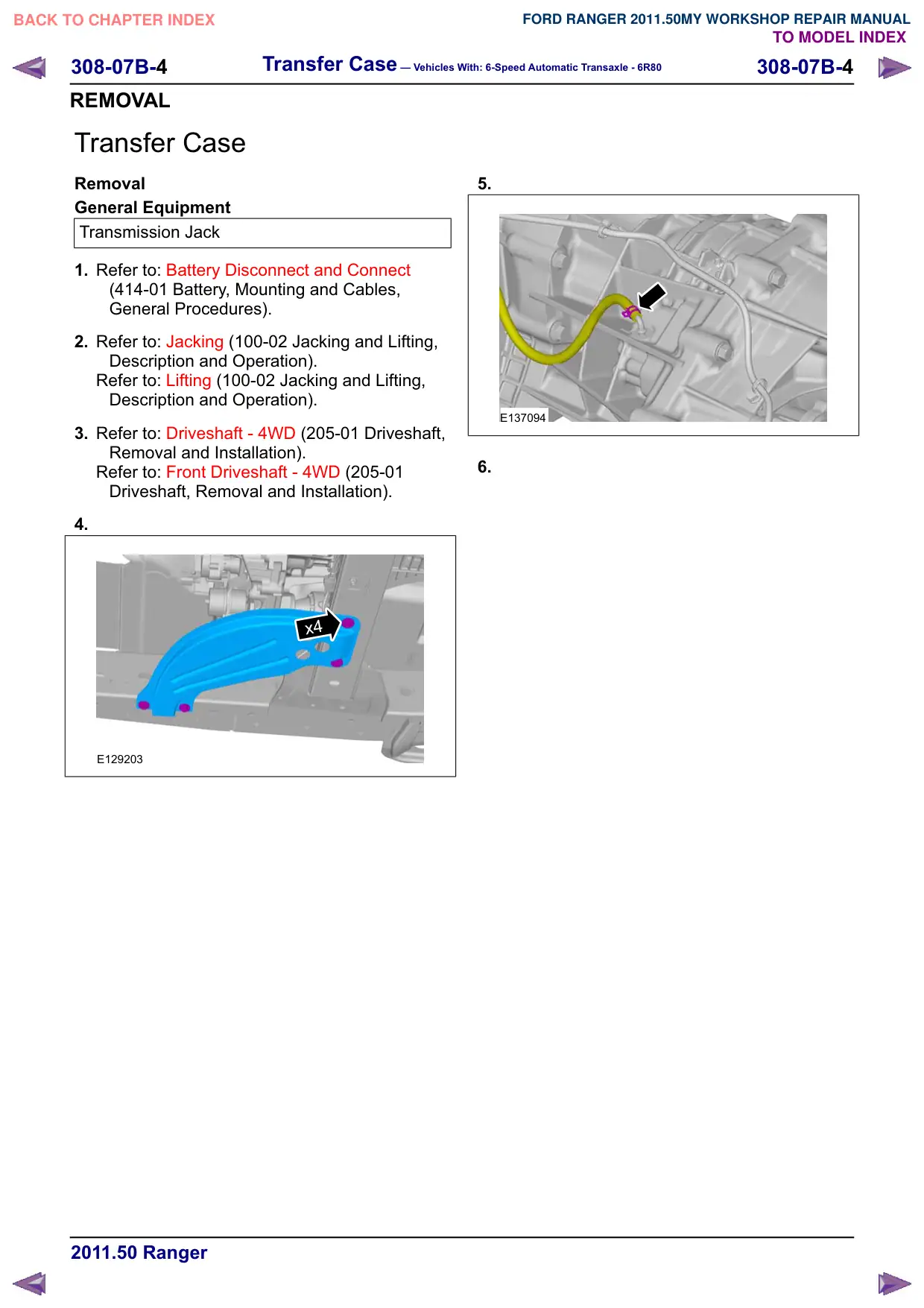

Transfer Case – Vehicles With: 6-Speed Automatic Transaxle - 6R80 308-07B-4 308-07B-4 REMOVAL Transfer Case Removal General Equipment Transmission Jack 1. Refer to: Battery Disconnect and Connect (414-01 Battery, Mounting and Cables, General Procedures). 2. Refer to: Jacking (100-02 Jacking and Lifting, Description and Operation). Refer to: Lifting (100-02 Jacking and Lifting, Description and Operation). 3. Refer to: Driveshaft - 4WD (205-01 Driveshaft, Removal and Installation). Refer to: Front Driveshaft - 4WD (205-01 Driveshaft, Removal and Installation). 4. x4 E129203 5. E137094 6.

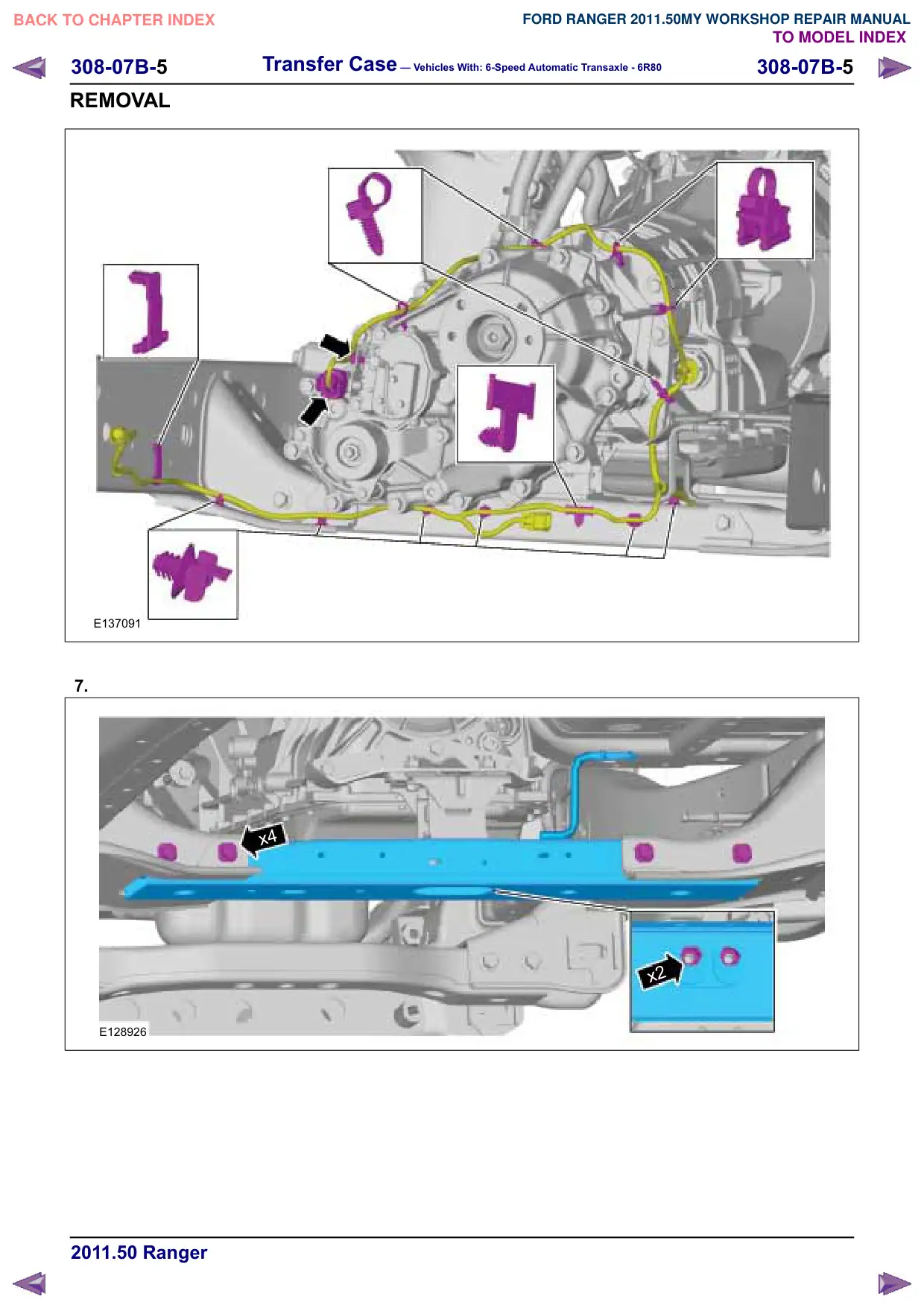

Transfer Case – Vehicles With: 6-Speed Automatic Transaxle - 6R80 308-07B-5 308-07B-5 REMOVAL E137091 7. x4 E128926 x2

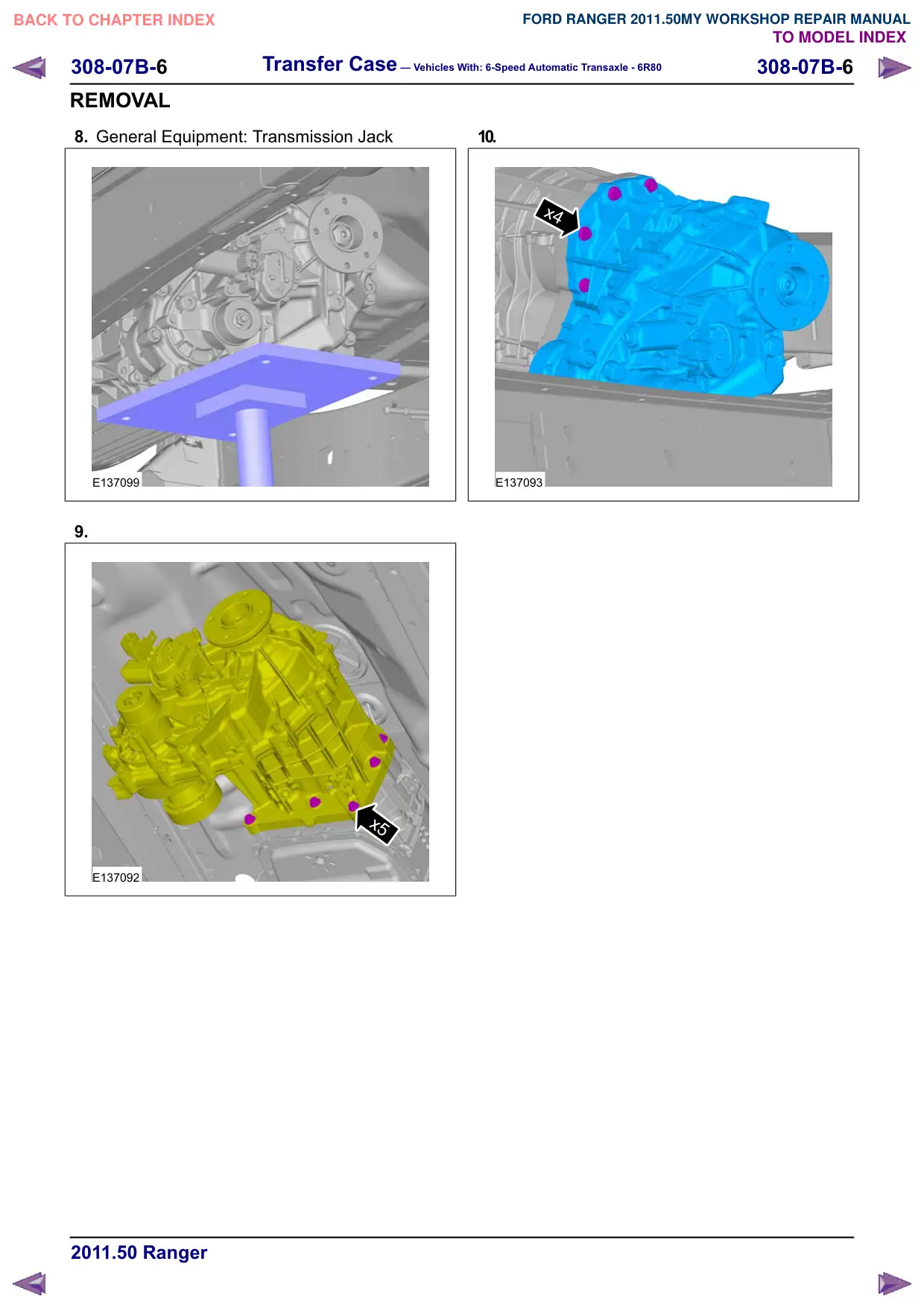

Transfer Case – Vehicles With: 6-Speed Automatic Transaxle - 6R80 308-07B-6 308-07B-6 REMOVAL 8. General Equipment: Transmission Jack E137099 9. x5 E137092 10. x4 E137093

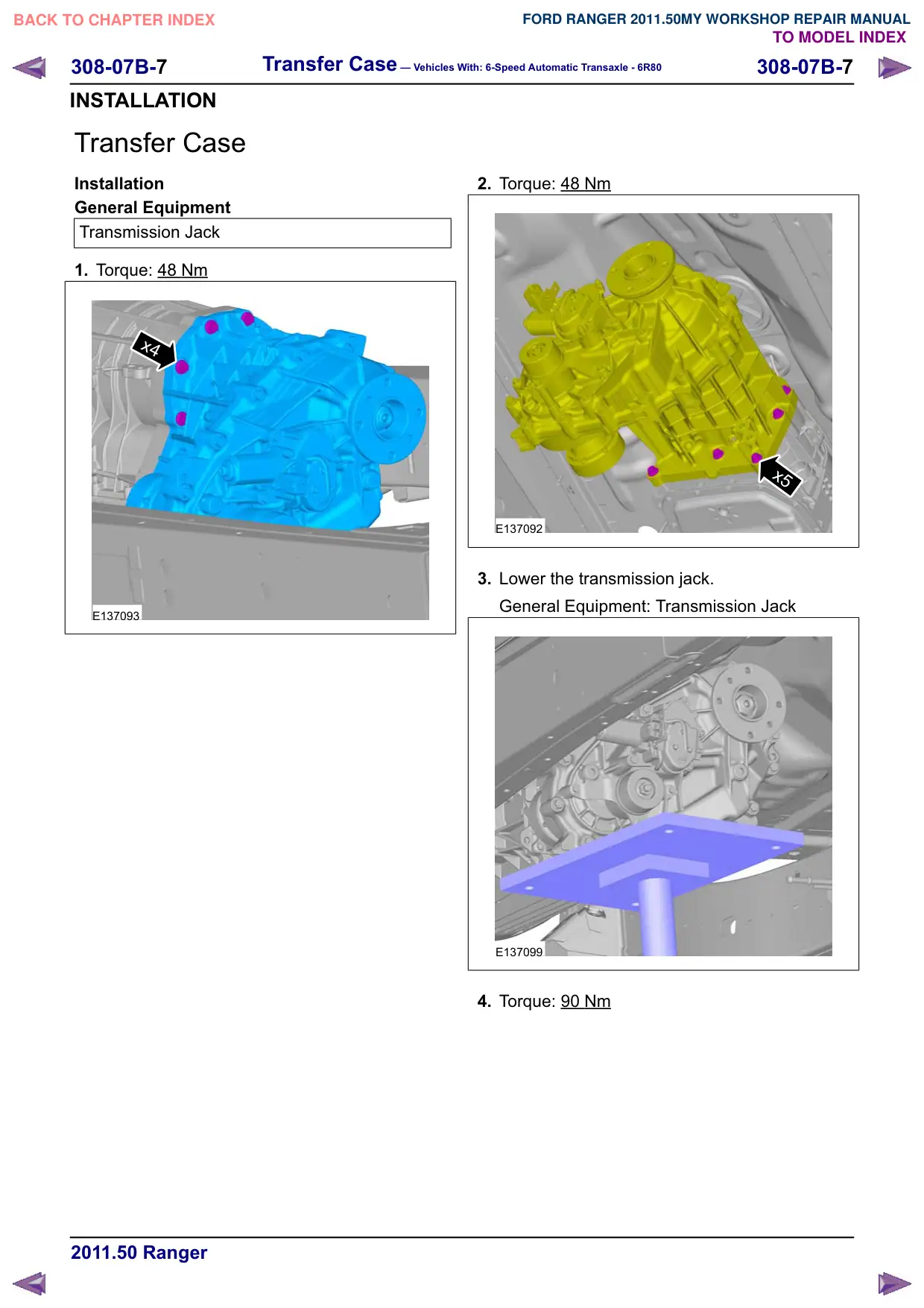

Transfer Case – Vehicles With: 6-Speed Automatic Transaxle - 6R80 308-07B-7 308-07B-7 INSTALLATION Transfer Case Installation General Equipment Transmission Jack 1. Torque: 48 Nm x4 E137093 2. Torque: 48 Nm x5 E137092 3. Lower the transmission jack. General Equipment: Transmission Jack E137099 4. Torque: 90 Nm

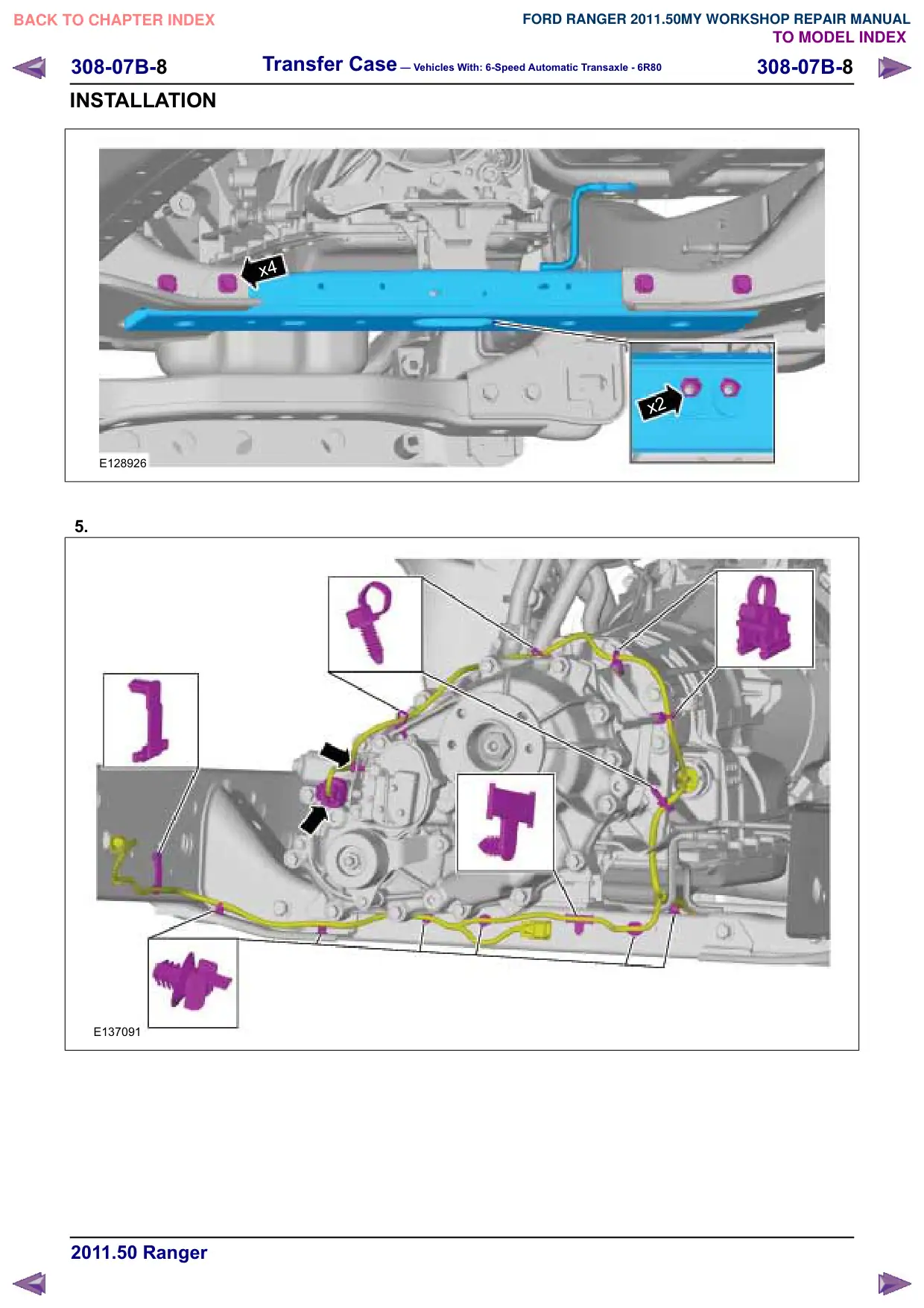

Transfer Case – Vehicles With: 6-Speed Automatic Transaxle - 6R80 308-07B-8 308-07B-8 INSTALLATION x4 E128926 5. E137091 x2

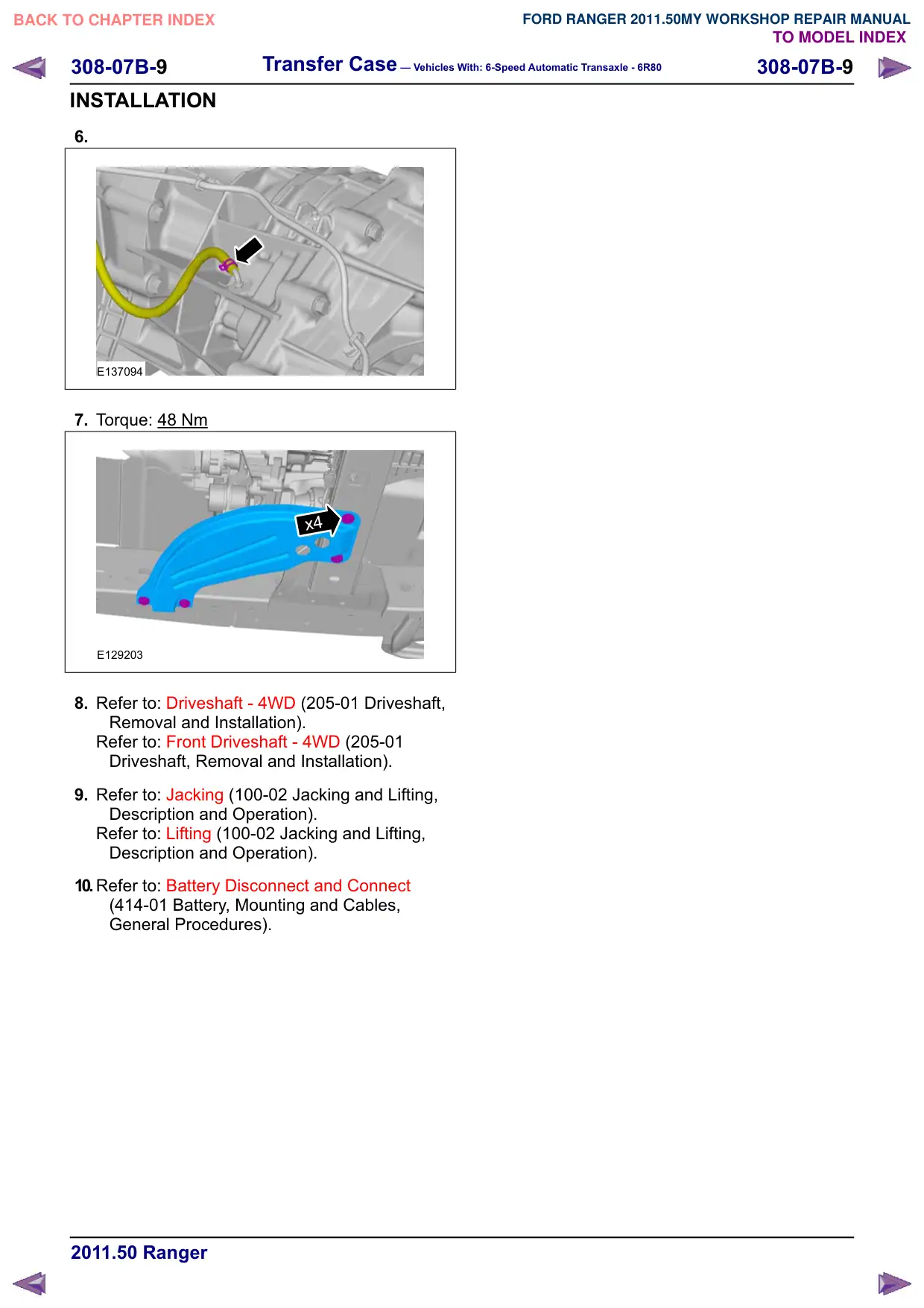

Transfer Case – Vehicles With: 6-Speed Automatic Transaxle - 6R80 308-07B- 308-07B- INSTALLATION 6. E137094 7. Torque: 48 Nm x4 E129203 8. Refer to: Driveshaft - 4WD (205-01 Driveshaft, Removal and Installation). Refer to: Front Driveshaft - 4WD (205-01 Driveshaft, Removal and Installation). 9. Refer to: Jacking (100-02 Jacking and Lifting, Description and Operation). Refer to: Lifting (100-02 Jacking and Lifting, Description and Operation). 10.Refer to: Battery Disconnect and Connect (414-01 Battery, Mounting and Cables, General Procedures).
