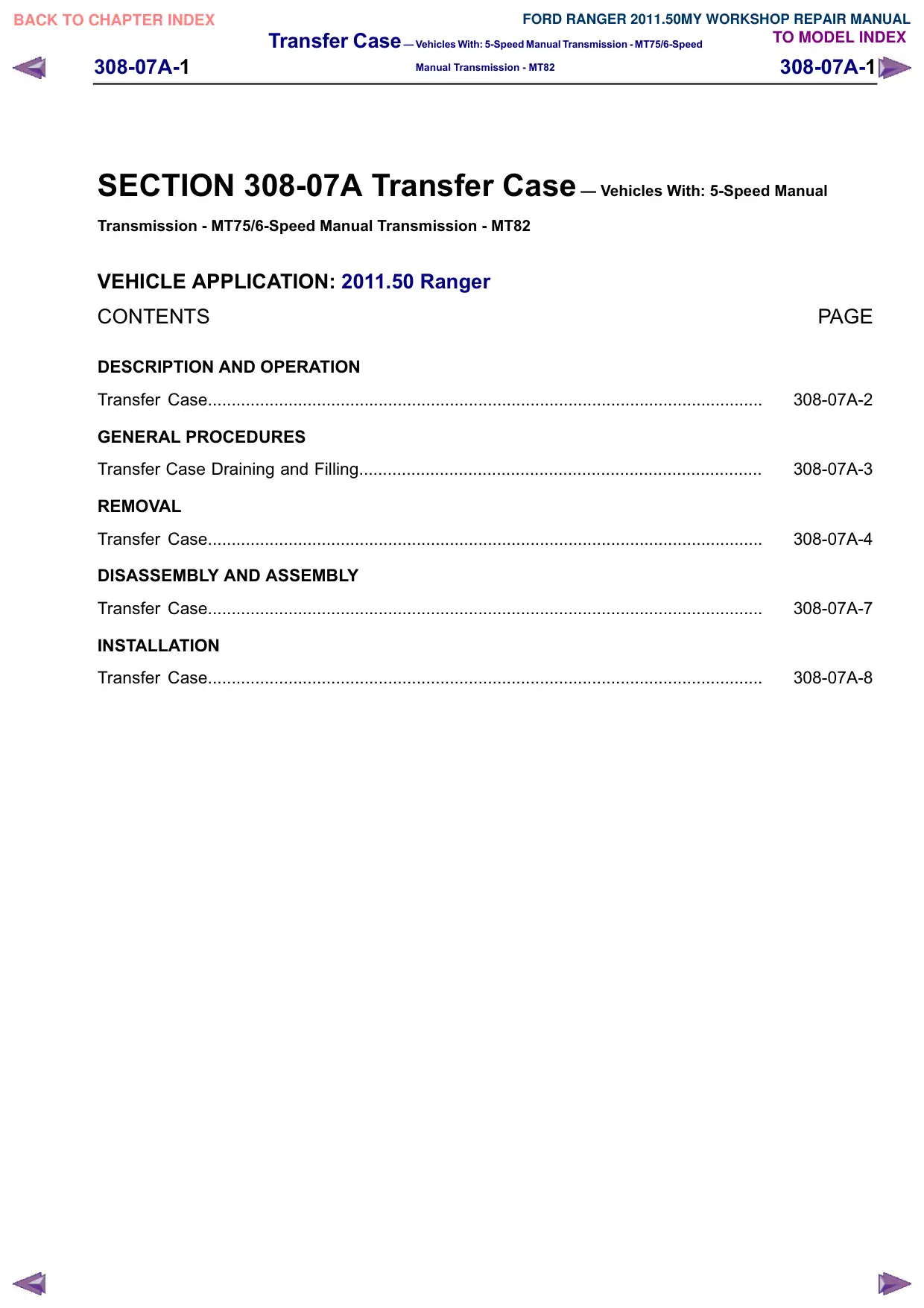

Transfer Case – Vehicles With: 5-Speed Manual Transmission - MT75/6-Speed 308-07A-1 308-07A-1 Manual Transmission - MT82 . SECTION 308-07A Transfer Case – Vehicles With: 5-Speed Manual Transmission - MT75/6-Speed Manual Transmission - MT82 VEHICLE APPLICATION: 2011.50 Ranger CONTENTS DESCRIPTION AND OPERATION Transfer Case..................................................................................................................... GENERAL PROCEDURES Transfer Case Draining and Filling..................................................................................... REMOVAL Transfer Case..................................................................................................................... DISASSEMBLY AND ASSEMBLY Transfer Case..................................................................................................................... INSTALLATION Transfer Case..................................................................................................................... PAGE 308-07A-2 308-07A-3 308-07A-4 308-07A-7 308-07A-8

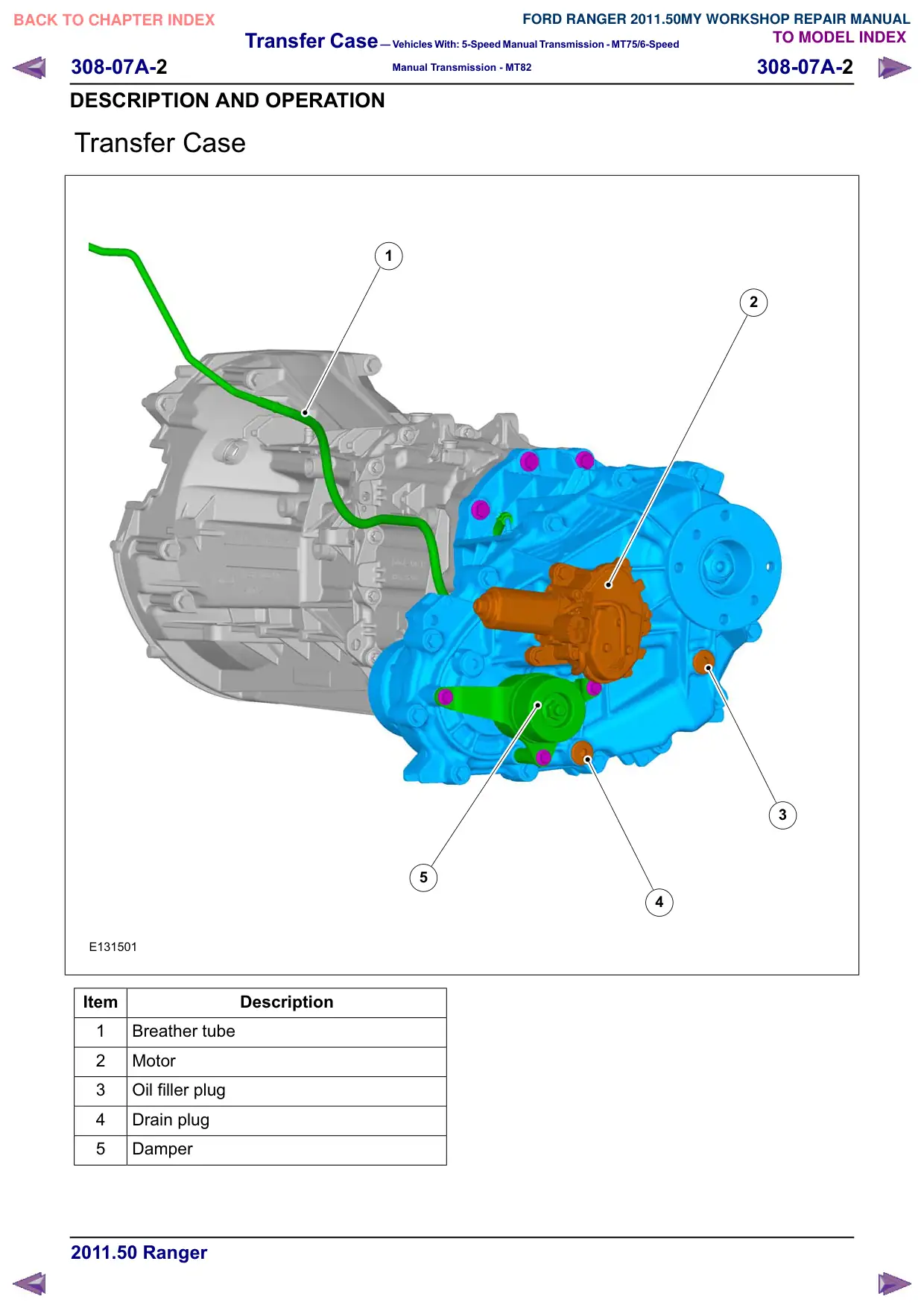

Transfer Case – Vehicles With: 5-Speed Manual Transmission - MT75/6-Speed 308-07A-2 308-07A-2 Manual Transmission - MT82 DESCRIPTION AND OPERATION Transfer Case 1 5 E131501 Item Description 1 Breather tube 2 Motor 3 Oil filler plug 4 Drain plug 5 Damper 2 3 4

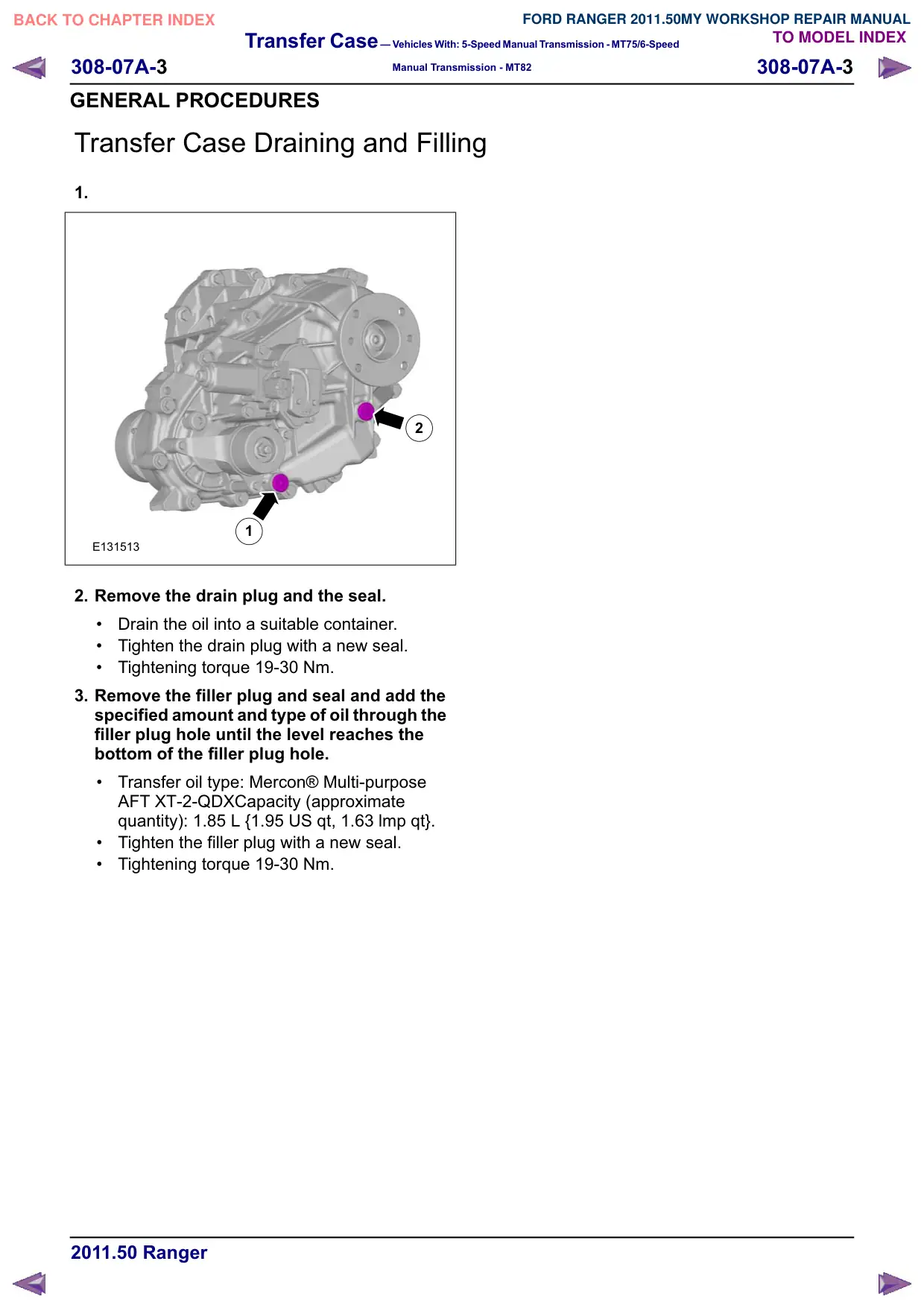

Transfer Case – Vehicles With: 5-Speed Manual Transmission - MT75/6-Speed 308-07A-3 308-07A-3 Manual Transmission - MT82 GENERAL PROCEDURES Transfer Case Draining and Filling 1. 2 1 E131513 2. Remove the drain plug and the seal. ‡ Drain the oil into a suitable container. ‡ Tighten the drain plug with a new seal. ‡ Tightening torque 19-30 Nm. 3. Remove the filler plug and seal and add the specified amount and type of oil through the filler plug hole until the level reaches the bottom of the filler plug hole. ‡ Transfer oil type: Mercon® Multi-purpose AFT XT-2-QDXCapacity (approximate quantity): 1.85 L {1.95 US qt, 1.63 lmp qt}. ‡ Tighten the filler plug with a new seal. ‡ Tightening torque 19-30 Nm.

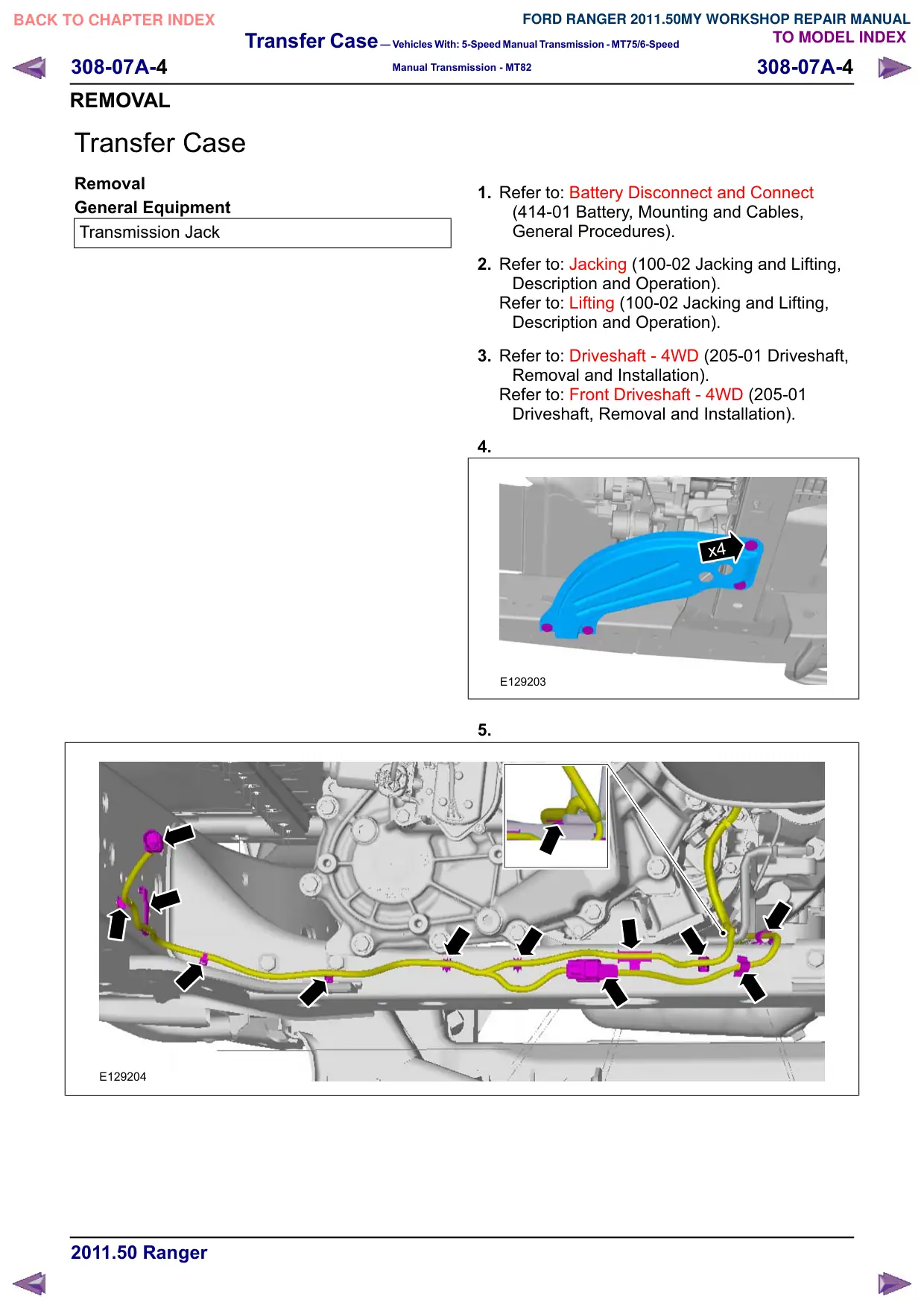

Transfer Case – Vehicles With: 5-Speed Manual Transmission - MT75/6-Speed 308-07A-4 308-07A-4 Manual Transmission - MT82 REMOVAL Transfer Case Removal General Equipment Transmission Jack E129204 1. Refer to: Battery Disconnect and Connect (414-01 Battery, Mounting and Cables, General Procedures). 2. Refer to: Jacking (100-02 Jacking and Lifting, Description and Operation). Refer to: Lifting (100-02 Jacking and Lifting, Description and Operation). 3. Refer to: Driveshaft - 4WD (205-01 Driveshaft, Removal and Installation). Refer to: Front Driveshaft - 4WD (205-01 Driveshaft, Removal and Installation). 4. x4 E129203 5.

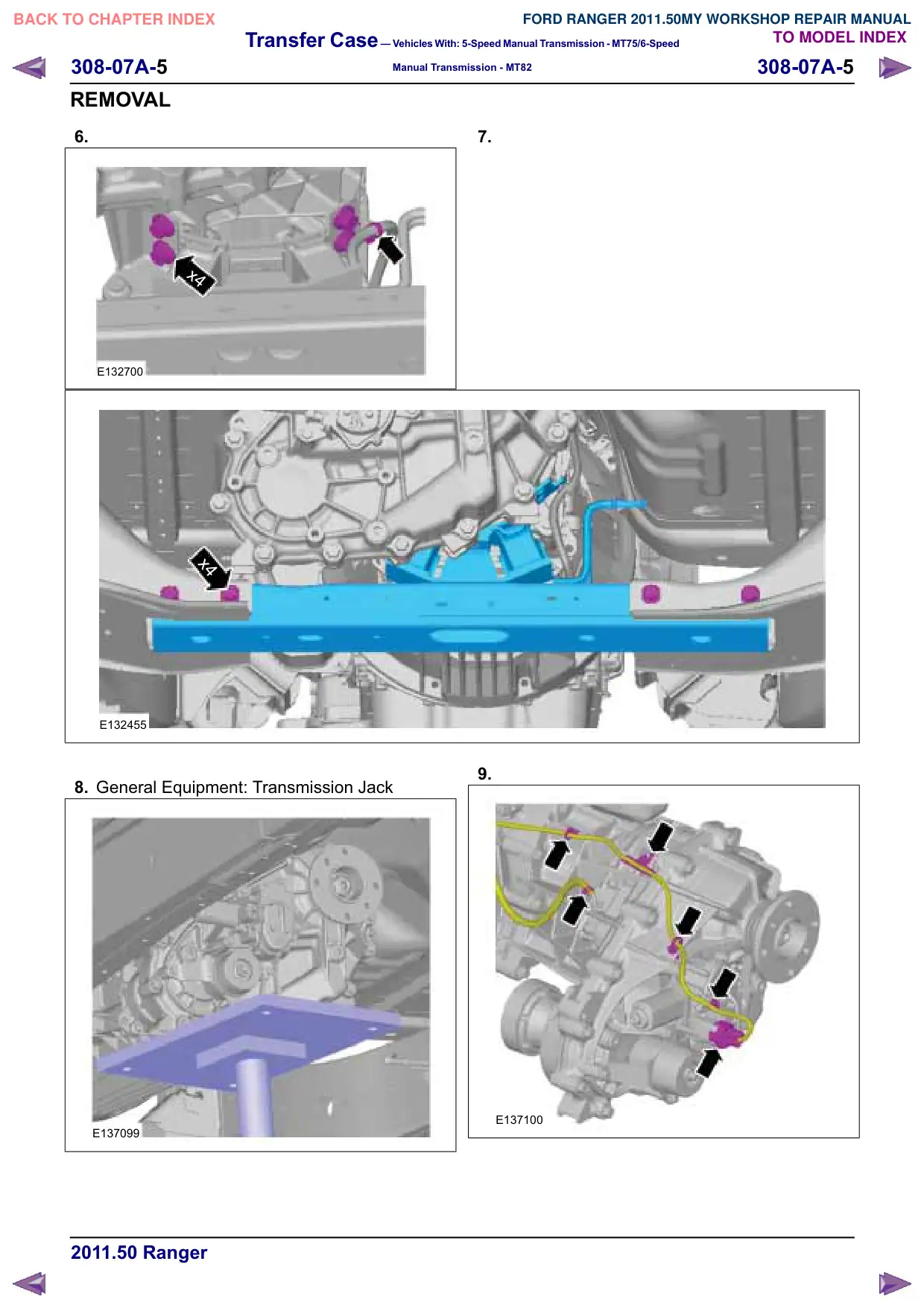

Transfer Case – Vehicles With: 5-Speed Manual Transmission - MT75/6-Speed 308-07A-5 308-07A-5 Manual Transmission - MT82 REMOVAL 6. x4 E132700 x4 E132455 8. General Equipment: Transmission Jack E137099 7. 9. E137100

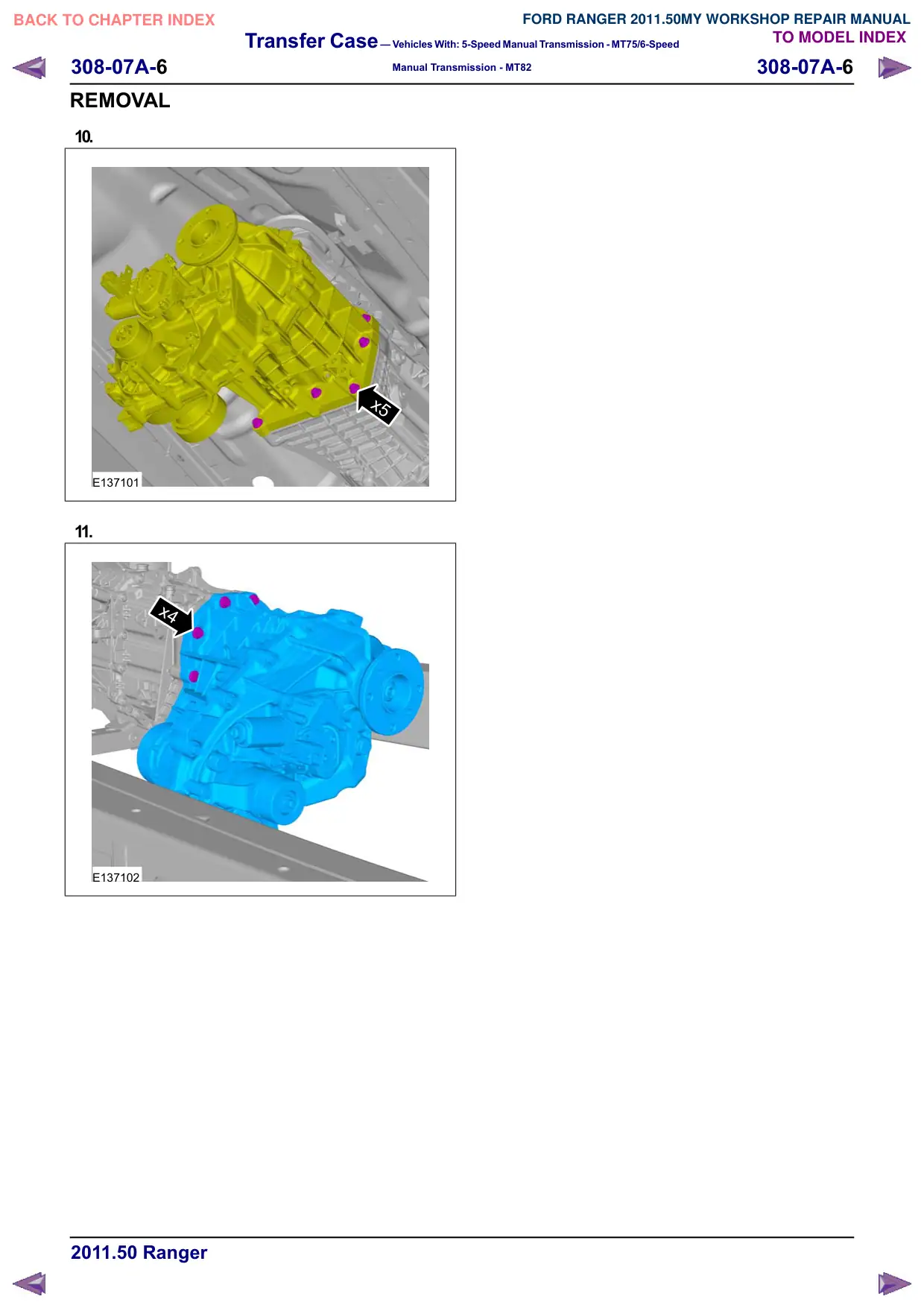

Transfer Case – Vehicles With: 5-Speed Manual Transmission - MT75/6-Speed 308-07A-6 308-07A-6 Manual Transmission - MT82 REMOVAL 10. x5 x5 E137101 11. x4 E137102

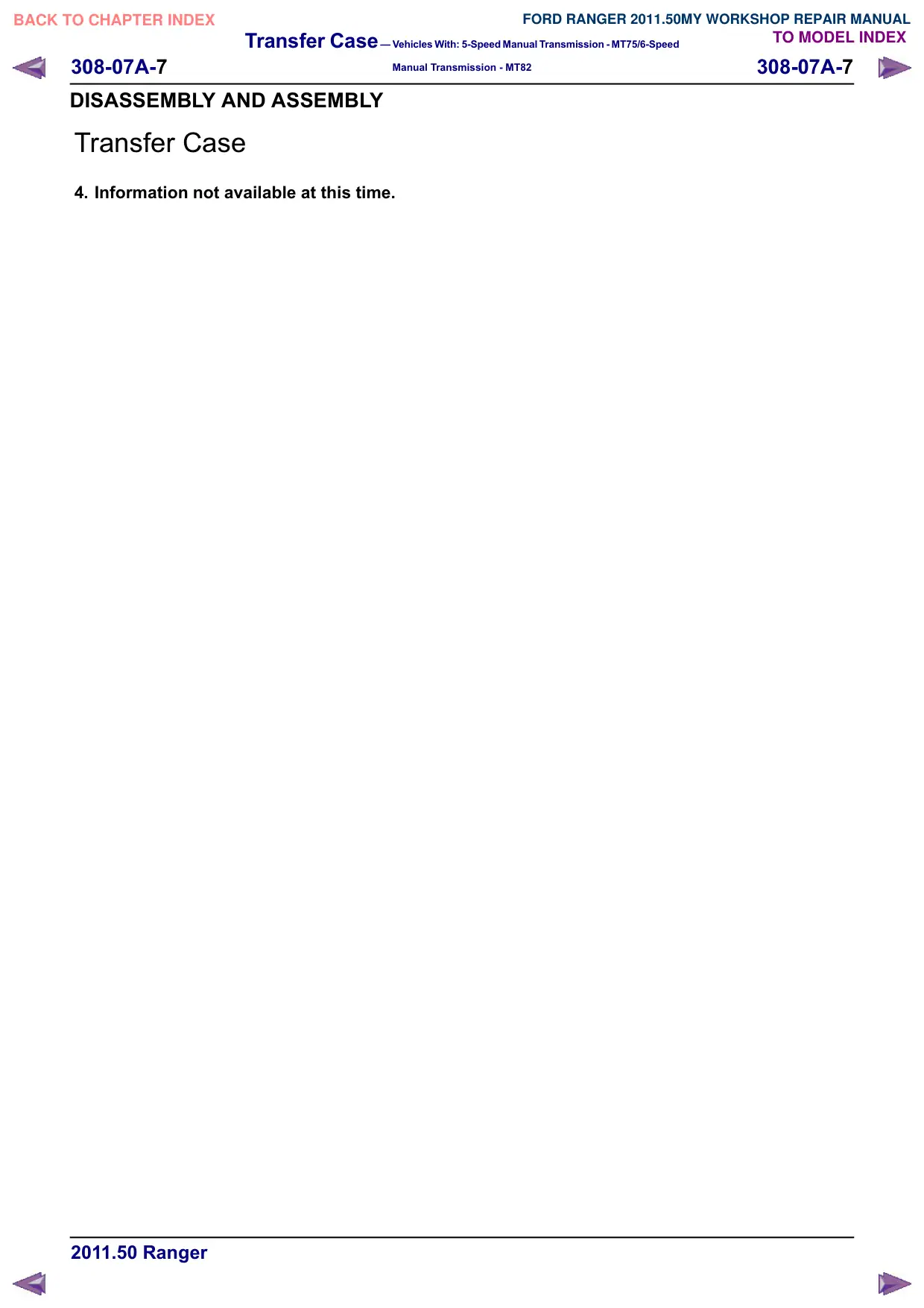

Transfer Case – Vehicles With: 5-Speed Manual Transmission - MT75/6-Speed 308-07A-7 308-07A-7 Manual Transmission - MT82 DISASSEMBLY AND ASSEMBLY Transfer Case 4. Information not available at this time.

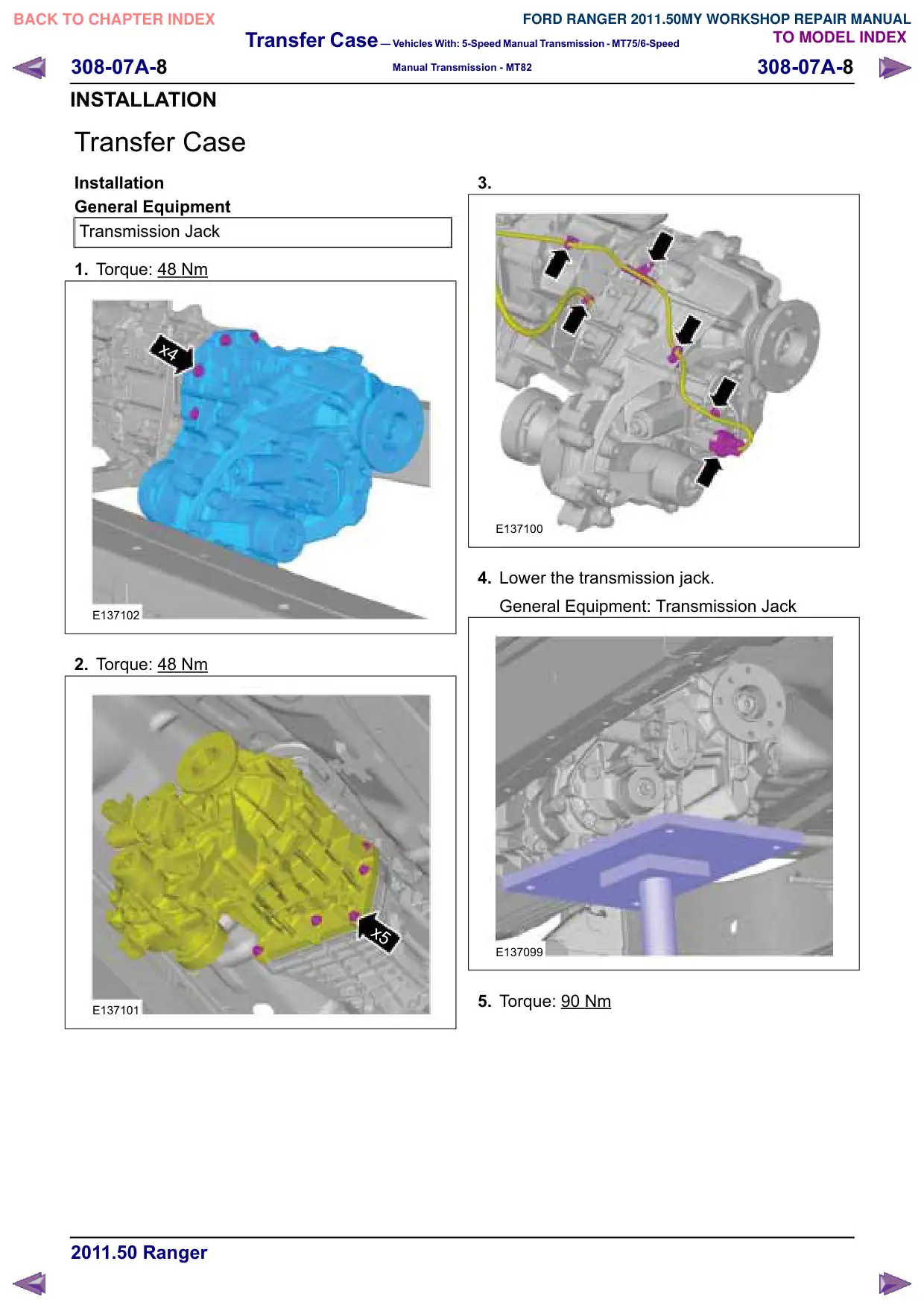

Transfer Case – Vehicles With: 5-Speed Manual Transmission - MT75/6-Speed 308-07A-8 308-07A-8 Manual Transmission - MT82 INSTALLATION Transfer Case Installation General Equipment Transmission Jack 1. Torque: 48 Nm x4 E137102 2. Torque: 48 Nm x5 E137101 3. E137100 4. Lower the transmission jack. General Equipment: Transmission Jack E137099 5. Torque: 90 Nm

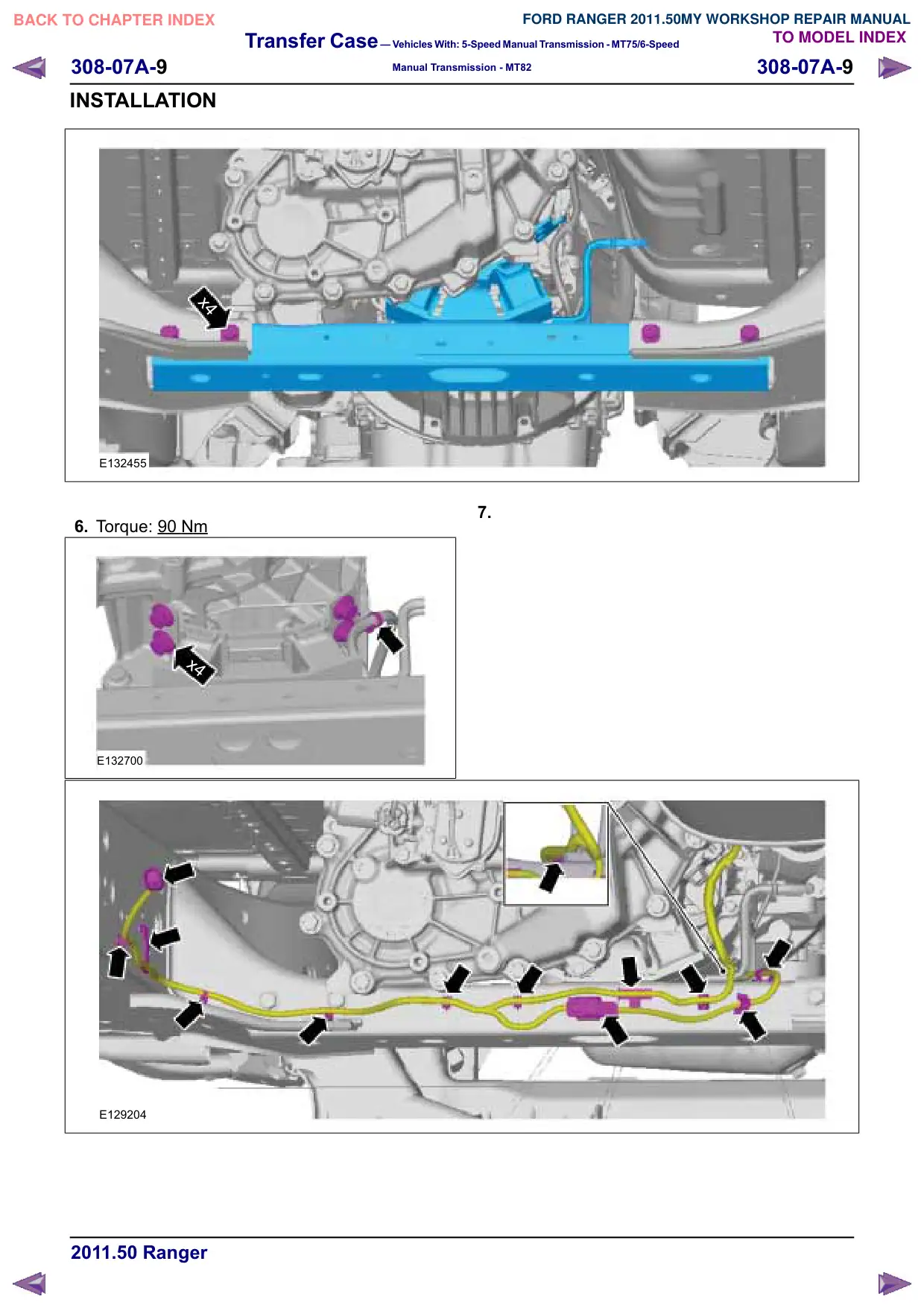

Transfer Case – Vehicles With: 5-Speed Manual Transmission - MT75/6-Speed 308-07A- 308-07A- Manual Transmission - MT82 INSTALLATION x4 E132455 6. Torque: 90 Nm x4 E132700 E129204 7.

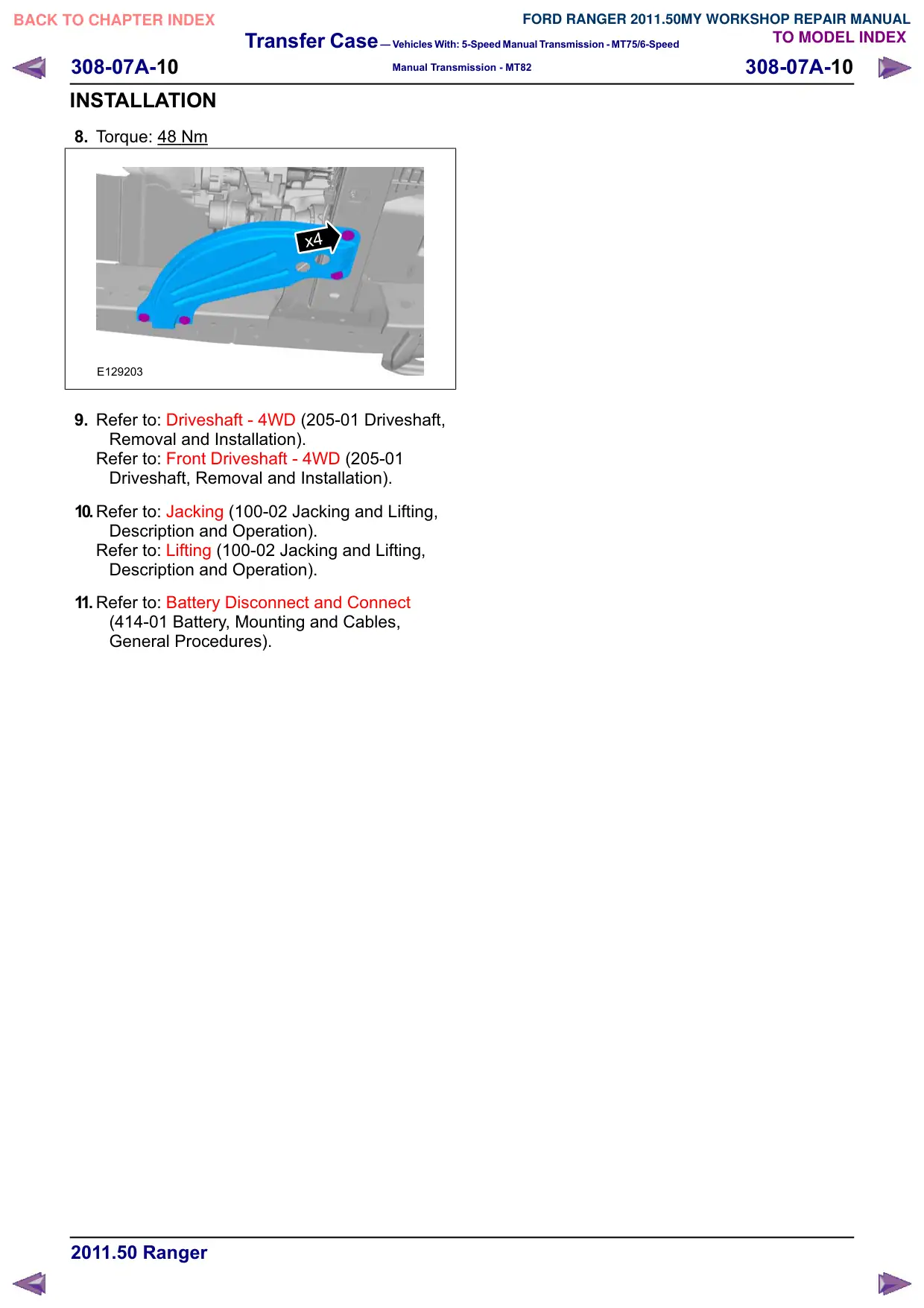

Transfer Case – Vehicles With: 5-Speed Manual Transmission - MT75/6-Speed 308-07A-10 308-07A-10 Manual Transmission - MT82 INSTALLATION 8. Torque: 48 Nm x4 E129203 9. Refer to: Driveshaft - 4WD (205-01 Driveshaft, Removal and Installation). Refer to: Front Driveshaft - 4WD (205-01 Driveshaft, Removal and Installation). 10.Refer to: Jacking (100-02 Jacking and Lifting, Description and Operation). Refer to: Lifting (100-02 Jacking and Lifting, Description and Operation). 11. Refer to: Battery Disconnect and Connect (414-01 Battery, Mounting and Cables, General Procedures).
