Manual Transmission/Transaxle External Controls – Vehicles With: MT82 308-06B-1 308-06B-1 . SECTION 308-06B Manual Transmission/Transaxle External Controls – Vehicles With: MT82 VEHICLE APPLICATION: 2011.50 Ranger CONTENTS DESCRIPTION AND OPERATION External Controls................................................................................................................ External Controls................................................................................................................ REMOVAL AND INSTALLATION Gearshift Lever................................................................................................................... PAGE 308-06B-2 308-06B-2 308-06B-3

Manual Transmission/Transaxle External Controls – Vehicles With: MT82 308-06B-2 308-06B-2 DESCRIPTION AND OPERATION External Controls External Controls 2 1 3 E137595 Item Description 1 Gearshift lever knob 2 Gearshift lever 3 Selector mechanism

Manual Transmission/Transaxle External Controls – Vehicles With: MT82 308-06B-3 308-06B-3 REMOVAL AND INSTALLATION Gearshift Lever Removal All vehicles 1. Refer to: Floor Console - Single Cab (501-12 Instrument Panel and Console, Removal and Installation). Refer to: Floor Console - Double Cab (501-12 Instrument Panel and Console, Removal and Installation). 2. E137564 3. Torque: 28 Nm E137565 4. E137566 5. Torque: 31 Nm E137567

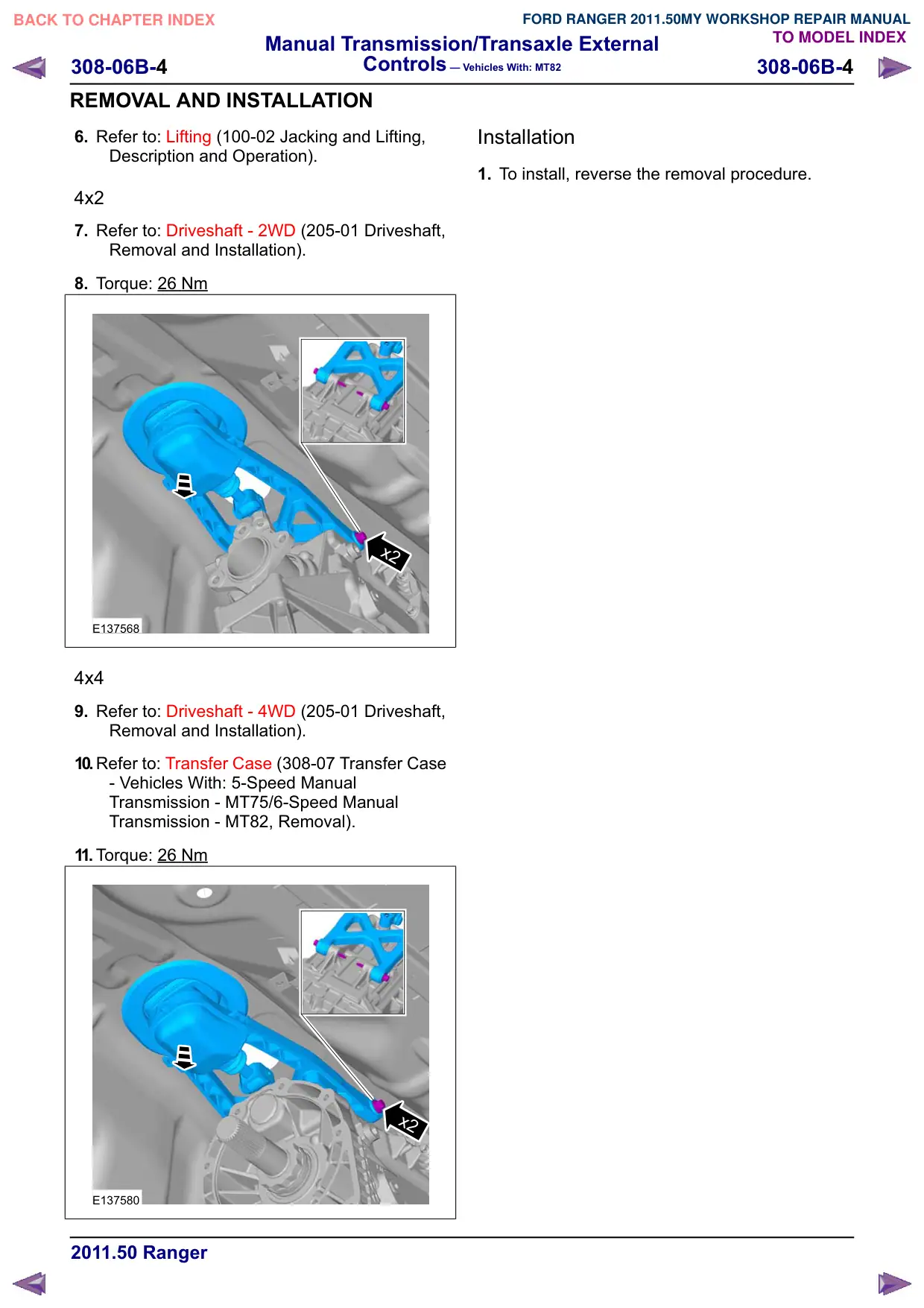

Manual Transmission/Transaxle External Controls – Vehicles With: MT82 308-06B-4 308-06B-4 REMOVAL AND INSTALLATION 6. Refer to: Lifting (100-02 Jacking and Lifting, Description and Operation). 4x2 7. Refer to: Driveshaft - 2WD (205-01 Driveshaft, Removal and Installation). 8. Torque: 26 Nm x2 E137568 4x4 9. Refer to: Driveshaft - 4WD (205-01 Driveshaft, Removal and Installation). 10.Refer to: Transfer Case (308-07 Transfer Case - Vehicles With: 5-Speed Manual Transmission - MT75/6-Speed Manual Transmission - MT82, Removal). 11. Torque: 26 Nm x2 E137580 Installation 1. To install, reverse the removal procedure.
