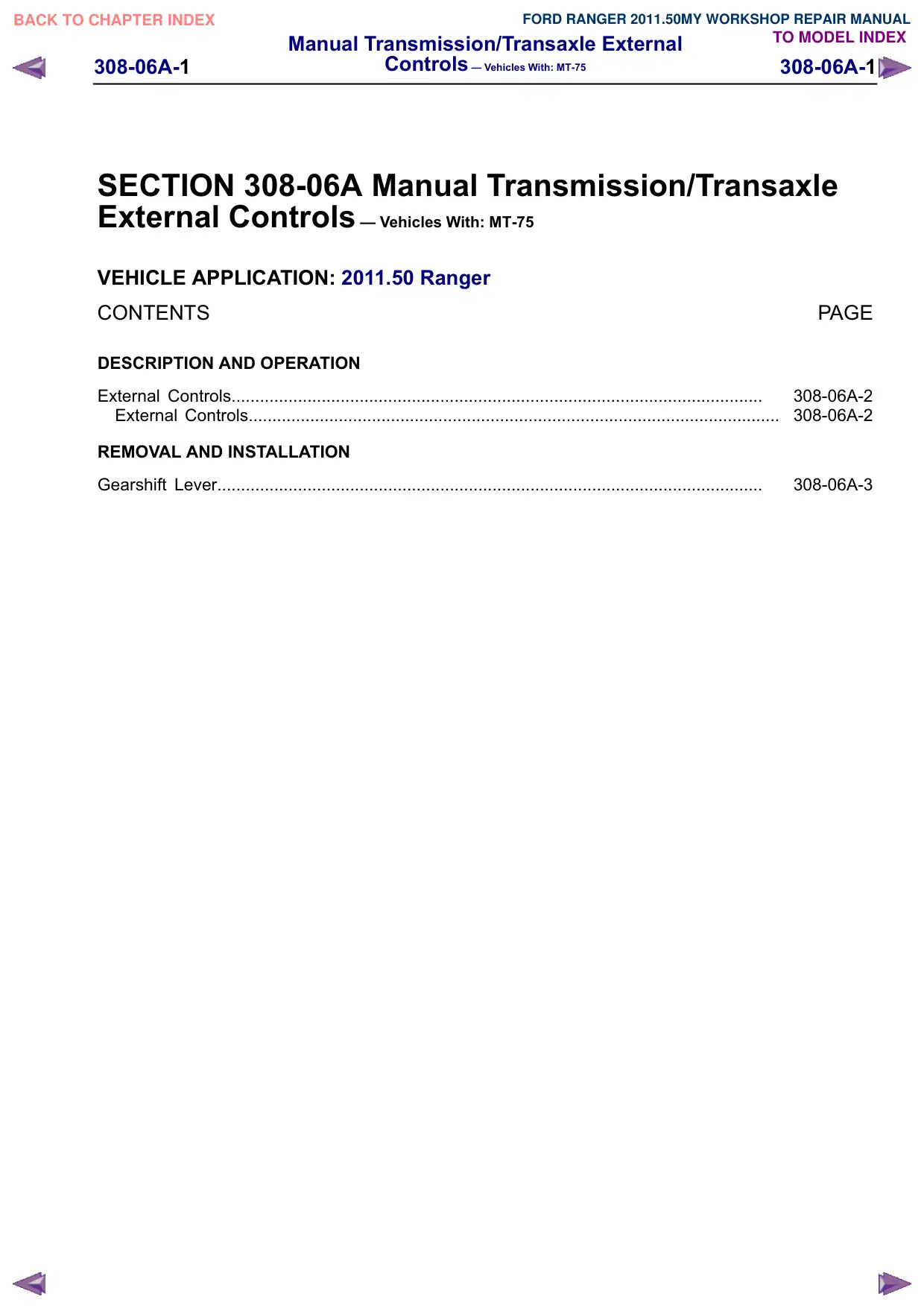

Página 1077 · Controles externos – Veículos com: MT-75
External Controls – Vehicles With: MT-75
https://ranger.mbrace.com.br/oficina/1077 · imagem: https://ranger.mbrace.com.br/img/oficina/1077.webp
Manual Transmission/Transaxle External
Controls – Vehicles With: MT-75
308-06A-1
308-06A-1
.
SECTION 308-06A Manual Transmission/Transaxle
External Controls – Vehicles With: MT-75
VEHICLE APPLICATION: 2011.50 Ranger
CONTENTS
DESCRIPTION AND OPERATION
External Controls................................................................................................................
External Controls................................................................................................................
REMOVAL AND INSTALLATION
Gearshift Lever...................................................................................................................
PAGE
308-06A-2
308-06A-2
308-06A-3
Página 1078 · Controles externos
External Controls
https://ranger.mbrace.com.br/oficina/1078 · imagem: https://ranger.mbrace.com.br/img/oficina/1078.webp
Manual Transmission/Transaxle External
Controls – Vehicles With: MT-75
308-06A-2
308-06A-2
DESCRIPTION AND OPERATION
External Controls
External Controls
1
2
3
E135513
Item
Description
1
Gearshift lever knob
2
Gearshift lever
3
Selector mechanism

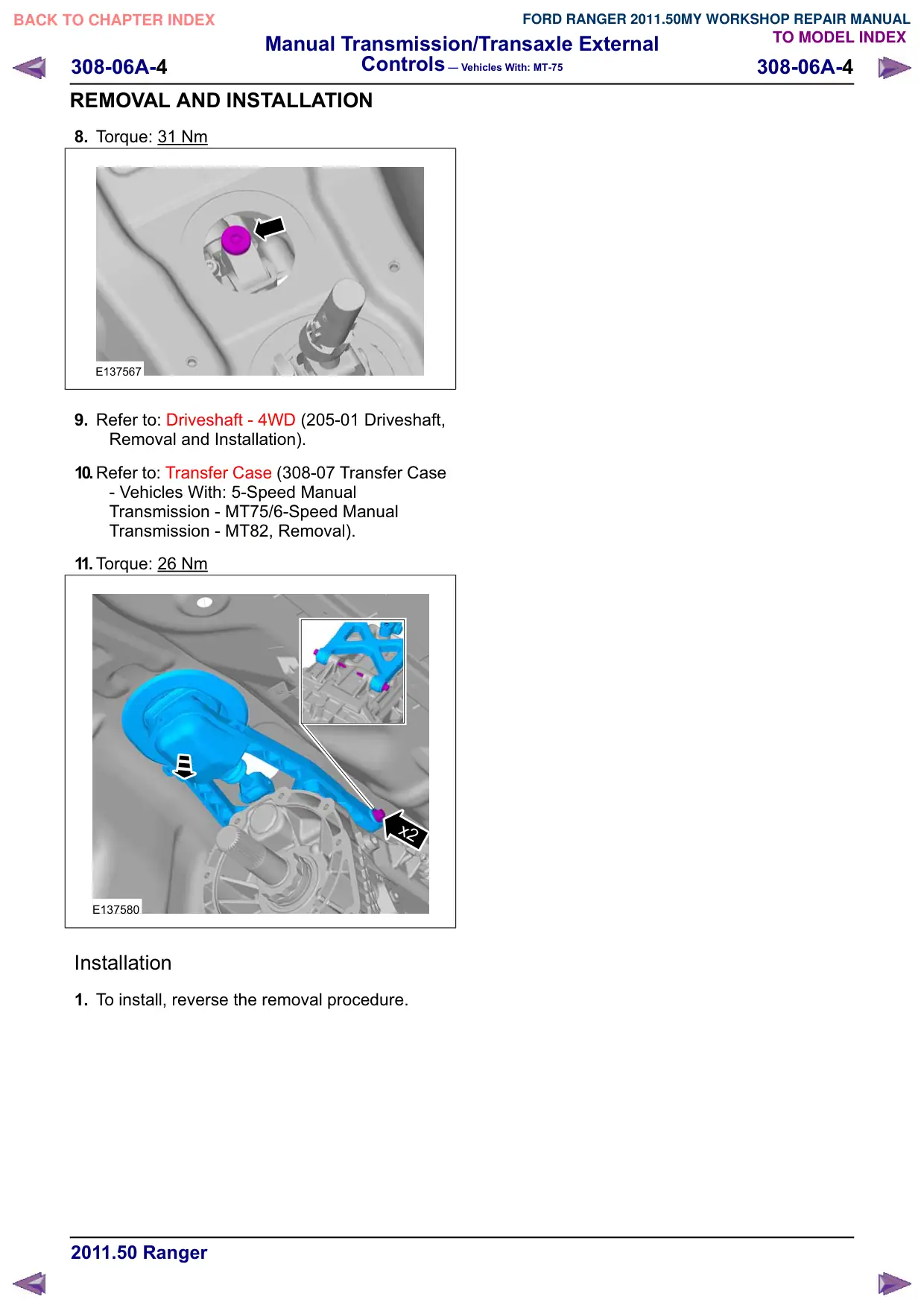

Página 1079 · Alavanca de câmbio
Gearshift Lever
https://ranger.mbrace.com.br/oficina/1079 · imagem: https://ranger.mbrace.com.br/img/oficina/1079.webp
Manual Transmission/Transaxle External
Controls – Vehicles With: MT-75
308-06A-3
308-06A-3
REMOVAL AND INSTALLATION
Gearshift Lever
Removal
All vehicles
1. Refer to: Floor Console - Single Cab (501-12
Instrument Panel and Console, Removal and
Installation).
Refer to: Floor Console - Double Cab (501-12
Instrument Panel and Console, Removal and
Installation).
2.
E137564
3. Torque: 28 Nm
E137565
4. Refer to: Lifting (100-02 Jacking and Lifting,
Description and Operation).
4x2
5. Refer to: Driveshaft - 2WD (205-01 Driveshaft,
Removal and Installation).
6. Torque: 26 Nm
1
2
x2
x2
E134601
4x4
7.
E137566

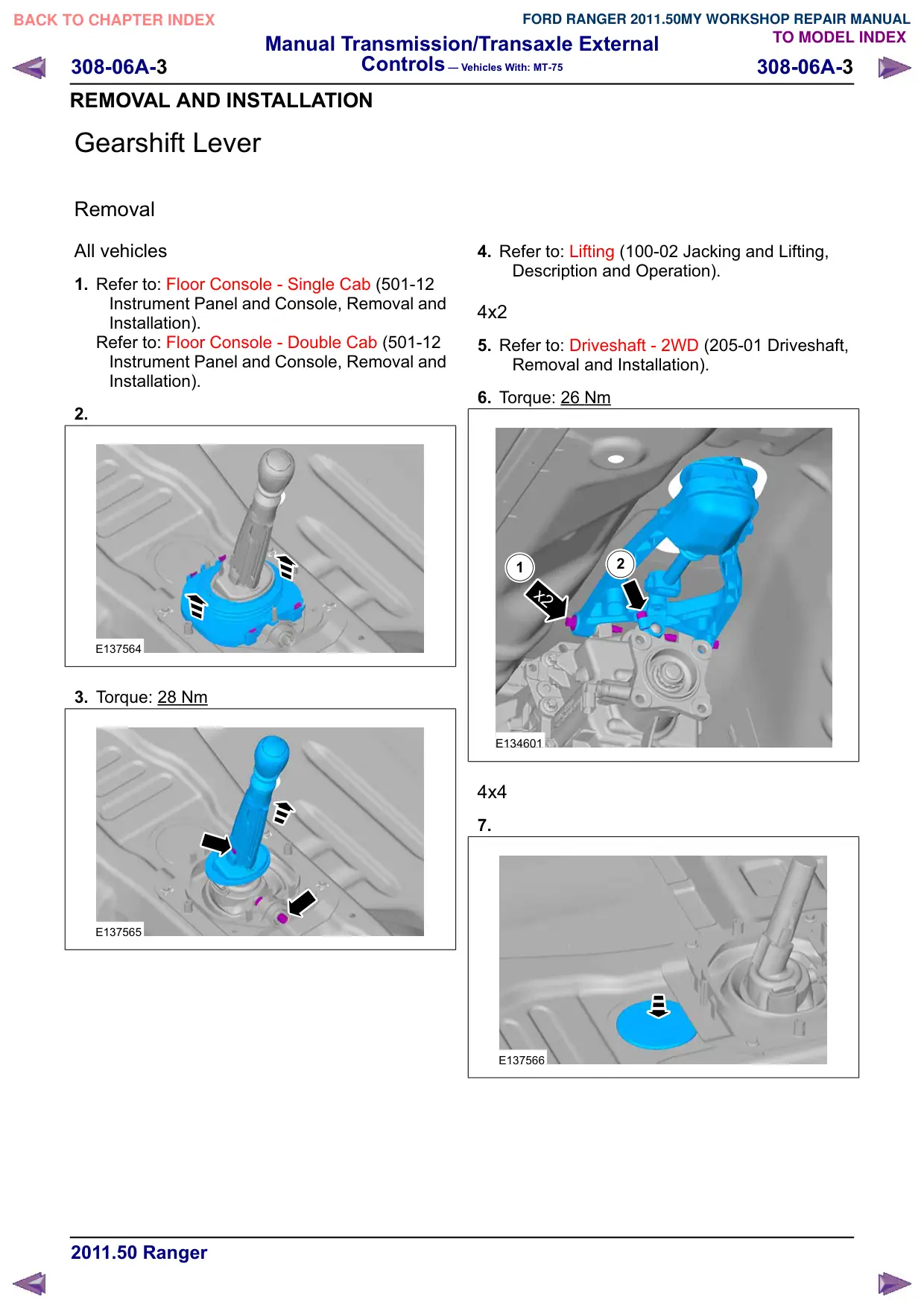

Página 1080 · Alavanca de câmbio
Gearshift Lever
https://ranger.mbrace.com.br/oficina/1080 · imagem: https://ranger.mbrace.com.br/img/oficina/1080.webp
Manual Transmission/Transaxle External
Controls – Vehicles With: MT-75
308-06A-4
308-06A-4
REMOVAL AND INSTALLATION
8. Torque: 31 Nm
E137567
9. Refer to: Driveshaft - 4WD (205-01 Driveshaft,
Removal and Installation).
10.Refer to: Transfer Case (308-07 Transfer Case
- Vehicles With: 5-Speed Manual
Transmission - MT75/6-Speed Manual
Transmission - MT82, Removal).
11. Torque: 26 Nm
x2
E137580
Installation
1. To install, reverse the removal procedure.
