308-01B Embreagem – câmbio MT82 (6 marchas)

Clutch – Vehicles With: 6-Speed Manual Transmission - MT82 308-01B-1 308-01B-1 . SECTION 308-01B Clutch – Vehicles With: 6-Speed Manual Transmission - MT82 VEHICLE APPLICATION: 2011.50 Ranger CONTENTS REMOVAL AND INSTALLATION Clutch Disc and Pressure Plate.......................................................................................... Pilot Bearing – 2.2L Duratorq-TDCi (88kW/120PS) - Puma/2.2L Duratorq-TDCi (96kW/130PS) - Puma/2.2L Duratorq-TDCi (110kW/150PS) - Puma/3.2L Duratorq-TDCi (148kW/200PS) - Puma.................................................................................................... PAGE 308-01B-2 308-01B-6

Clutch – Vehicles With: 6-Speed Manual Transmission - MT82 308-01B-2 308-01B-2 REMOVAL AND INSTALLATION Clutch Disc and Pressure Plate Special Tool(s) 303-254 Locking Tool, Flywheel 21135 Removal NOTE: Removal steps in this procedure may contain installation details. Special Tool(s) 308-204 Aligner, Clutch Disc 16067

Clutch – Vehicles With: 6-Speed Manual Transmission - MT82 308-01B-3 308-01B-3 REMOVAL AND INSTALLATION 1. Refer to: Health and Safety Precautions (100-00 General Information, Description and Operation). 2. Refer to: Battery Disconnect and Connect (414-01 Battery, Mounting and Cables, General Procedures). 3. Refer to: Transmission - 2.2L Duratorq-TDCi (88kW/120PS) - Puma/2.2L Duratorq-TDCi (96kW/130PS) - Puma/2.2L Duratorq-TDCi (110kW/150PS) - Puma/3.2L Duratorq-TDCi (148kW/200PS) - Puma, 2WD (308-03 Manual Transmission/Transaxle - Vehicles With: 6-Speed Manual Transmission - MT82, Removal). Refer to: Transmission - 2.2L Duratorq-TDCi (88kW/120PS) - Puma/2.2L Duratorq-TDCi (96kW/130PS) - Puma/2.2L Duratorq-TDCi (110kW/150PS) - Puma/3.2L Duratorq-TDCi (148kW/200PS) - Puma, 4WD (308-03 Manual Transmission/Transaxle - Vehicles With: 6-Speed Manual Transmission - MT82, Removal). 4. Special Tool(s): 303-254 303-254 E133584 5. CAUTION: Loosen the clutch pressure plate retaining bolts by two turns at a time in the sequence shown. 6 1 4 x2 3 2 5 E129960 Installation 1. Using the special tool, centralize the clutch disc on the pressure plate. Special Tool(s): 308-204 308-204 E129961 2. NOTE: Check the pilot bearing for damage. If damaged, install a new pilot bearing. NOTE: Do not apply grease to a newly installed pilot bearing. Refer to: Pilot Bearing - 2.2L Duratorq-TDCi (88kW/120PS) - Puma/2.2L Duratorq-TDCi (96kW/130PS) - Puma/2.2L Duratorq-TDCi

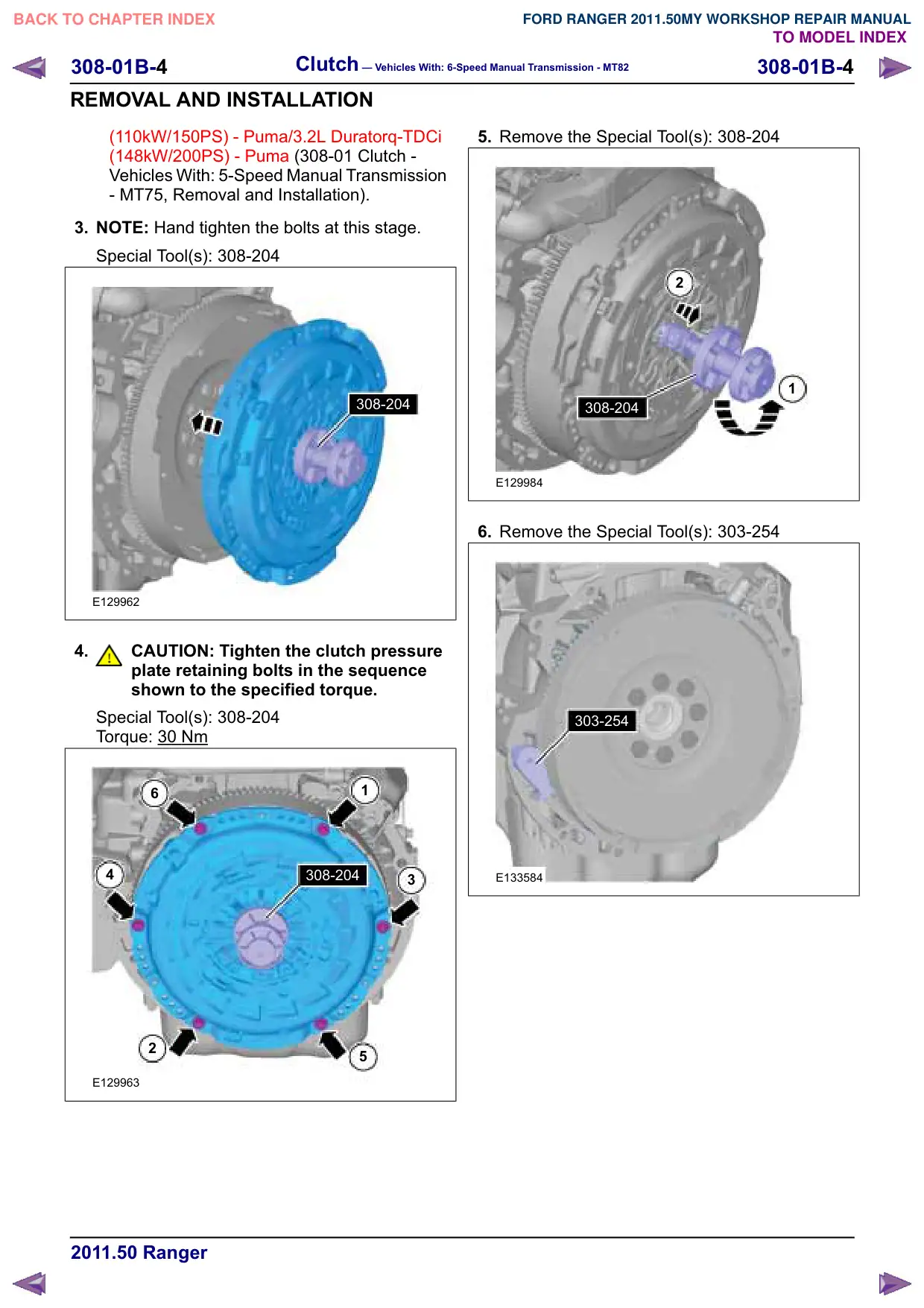

308-01B-4 Clutch – Vehicles With: 6-Speed Manual Transmission - MT82 308-01B-4 REMOVAL AND INSTALLATION (110kW/150PS) - Puma/3.2L Duratorq-TDCi (148kW/200PS) - Puma (308-01 Clutch - Vehicles With: 5-Speed Manual Transmission - MT75, Removal and Installation). 3. NOTE: Hand tighten the bolts at this stage. Special Tool(s): 308-204 308-204 E129962 4. CAUTION: Tighten the clutch pressure plate retaining bolts in the sequence shown to the specified torque. Special Tool(s): 308-204 Torque: 30 Nm 1 6 4 308-204 3 2 5 E129963 5. Remove the Special Tool(s): 308-204 2 1 308-204 E129984 6. Remove the Special Tool(s): 303-254 303-254 E133584

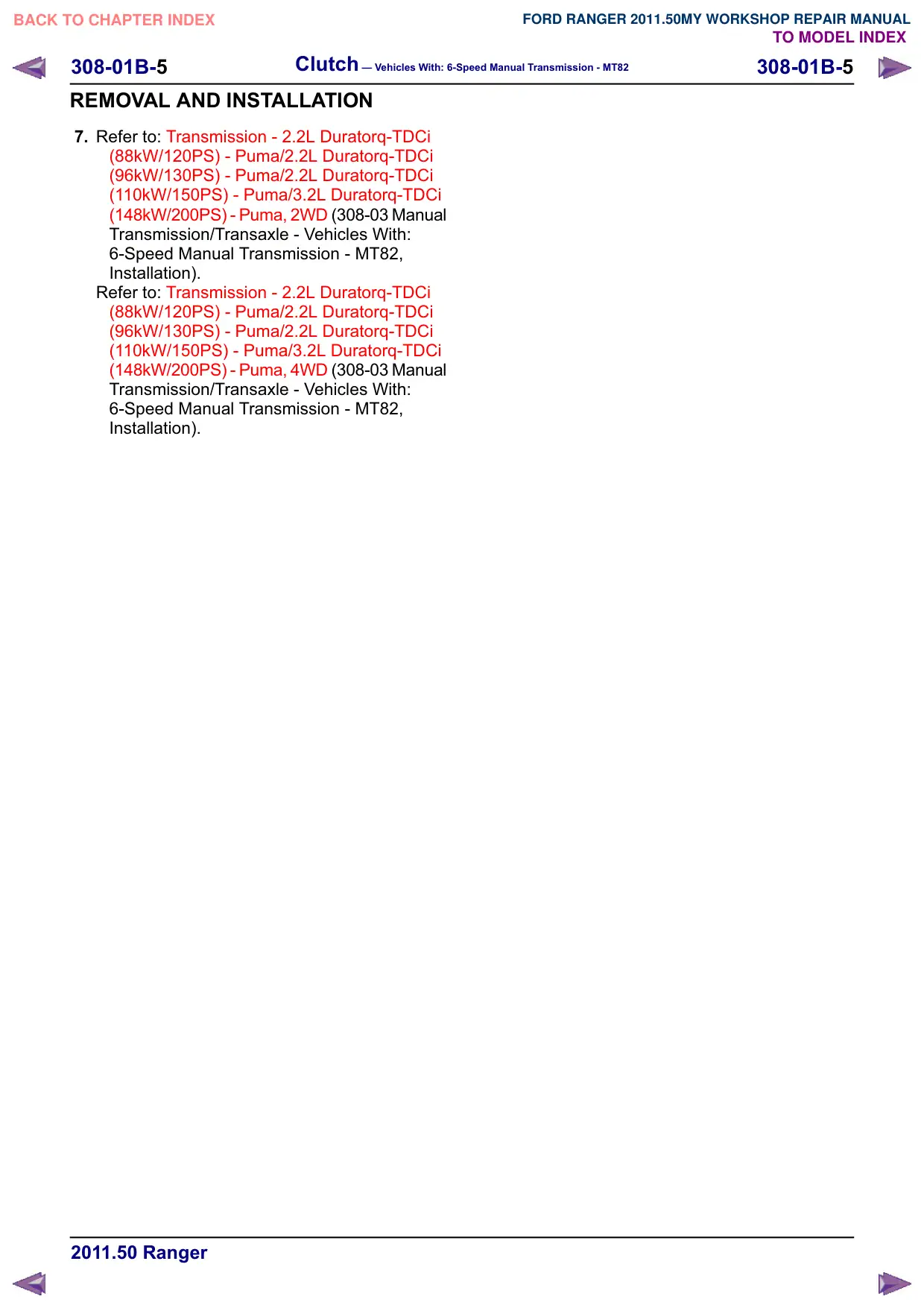

Clutch – Vehicles With: 6-Speed Manual Transmission - MT82 308-01B-5 308-01B-5 REMOVAL AND INSTALLATION 7. Refer to: Transmission - 2.2L Duratorq-TDCi (88kW/120PS) - Puma/2.2L Duratorq-TDCi (96kW/130PS) - Puma/2.2L Duratorq-TDCi (110kW/150PS) - Puma/3.2L Duratorq-TDCi (148kW/200PS) - Puma, 2WD (308-03 Manual Transmission/Transaxle - Vehicles With: 6-Speed Manual Transmission - MT82, Installation). Refer to: Transmission - 2.2L Duratorq-TDCi (88kW/120PS) - Puma/2.2L Duratorq-TDCi (96kW/130PS) - Puma/2.2L Duratorq-TDCi (110kW/150PS) - Puma/3.2L Duratorq-TDCi (148kW/200PS) - Puma, 4WD (308-03 Manual Transmission/Transaxle - Vehicles With: 6-Speed Manual Transmission - MT82, Installation).

Clutch – Vehicles With: 6-Speed Manual Transmission - MT82 308-01B-6 308-01B-6 REMOVAL AND INSTALLATION Pilot Bearing – 2.2L Duratorq-TDCi (88kW/120PS) - Puma/2.2L Duratorq-TDCi (96kW/130PS) - Puma/2.2L Duratorq-TDCi (110kW/150PS) - Puma/3.2L Duratorq-TDCi (148kW/200PS) - Puma Special Tool(s) 205-311 Remover, Bearing/Gear 15092 Removal NOTE: Removal steps in this procedure may contain installation details. Special Tool(s) 303-090 Installer, Crankshaft Pilot Bearing 21045 303-1365 Remover, Crankshaft Pilot Bearing E92318 1. Refer to: Clutch Disc and Pressure Plate (308-01 Clutch - Vehicles With: 6-Speed Manual Transmission - MT82, Removal and Installation). Refer to: Clutch Disc and Pressure Plate (308-01 Clutch - Vehicles With: 5-Speed Manual Transmission - MT75, Removal and Installation). 2. Special Tool(s): 205-311, 303-1365 303-1365 303-1365 205-311 205-311 E97029

Clutch – Vehicles With: 6-Speed Manual Transmission - MT82 308-01B-7 308-01B-7 REMOVAL AND INSTALLATION Installation 1. Special Tool(s): 303-090 303-090 E97031 2. Refer to: Clutch Disc and Pressure Plate (308-01 Clutch - Vehicles With: 6-Speed Manual Transmission - MT82, Removal and Installation). Refer to: Clutch Disc and Pressure Plate (308-01 Clutch - Vehicles With: 5-Speed Manual Transmission - MT75, Removal and Installation).
