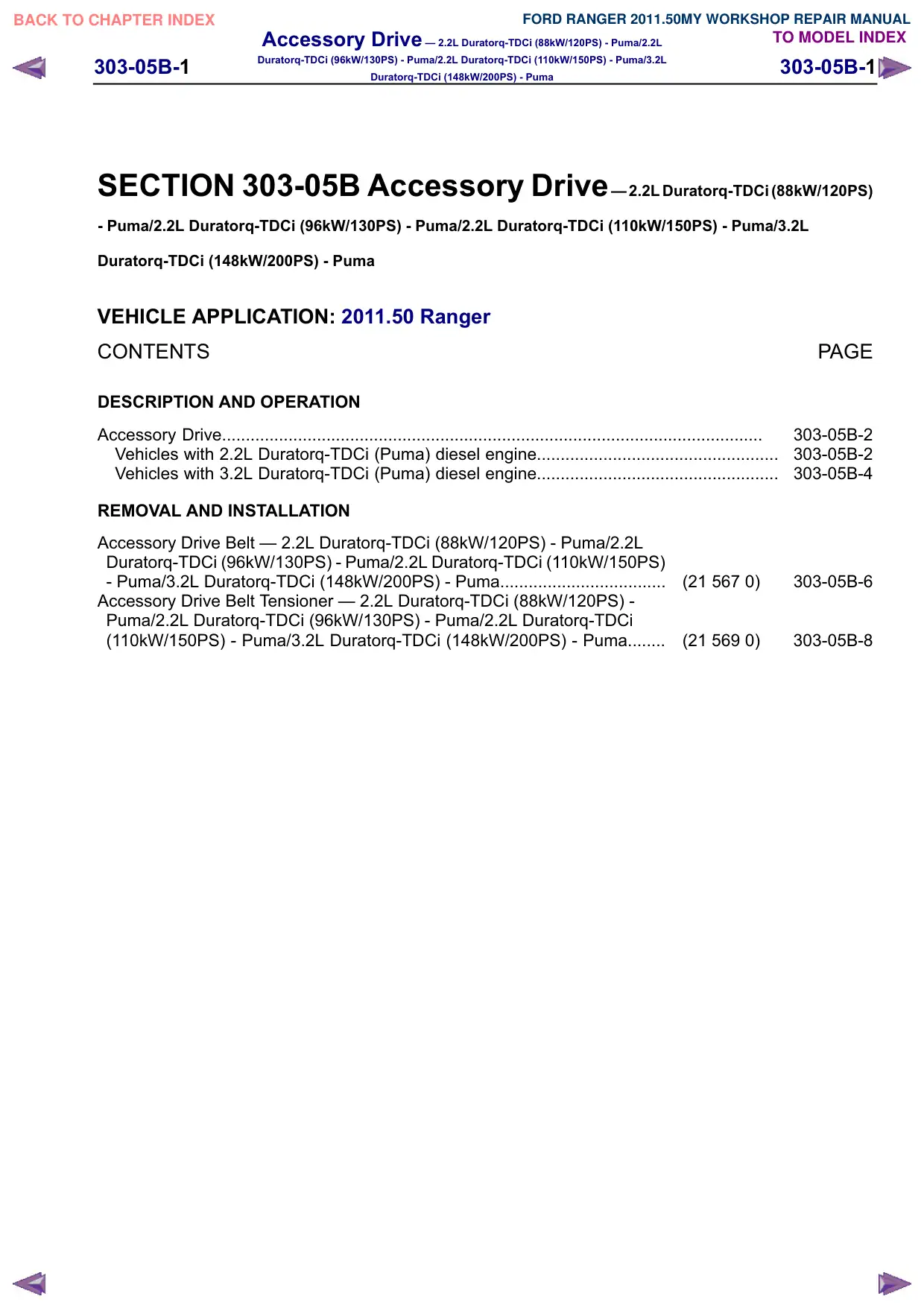

Accessory Drive – 2.2L Duratorq-TDCi (88kW/120PS) - Puma/2.2L Duratorq-TDCi (96kW/130PS) - Puma/2.2L Duratorq-TDCi (110kW/150PS) - Puma/3.2L 303-05B-1 303-05B-1 Duratorq-TDCi (148kW/200PS) - Puma . SECTION 303-05B Accessory Drive – 2.2L Duratorq-TDCi(88kW/120PS) - Puma/2.2L Duratorq-TDCi (96kW/130PS) - Puma/2.2L Duratorq-TDCi (110kW/150PS) - Puma/3.2L Duratorq-TDCi (148kW/200PS) - Puma VEHICLE APPLICATION: 2011.50 Ranger CONTENTS DESCRIPTION AND OPERATION Accessory Drive.................................................................................................................. Vehicles with 2.2L Duratorq-TDCi (Puma) diesel engine................................................... Vehicles with 3.2L Duratorq-TDCi (Puma) diesel engine................................................... REMOVAL AND INSTALLATION Accessory Drive Belt – 2.2L Duratorq-TDCi (88kW/120PS) - Puma/2.2L Duratorq-TDCi (96kW/130PS) - Puma/2.2L Duratorq-TDCi (110kW/150PS) - Puma/3.2L Duratorq-TDCi (148kW/200PS) - Puma................................... Accessory Drive Belt Tensioner – 2.2L Duratorq-TDCi (88kW/120PS) - Puma/2.2L Duratorq-TDCi (96kW/130PS) - Puma/2.2L Duratorq-TDCi (110kW/150PS) - Puma/3.2L Duratorq-TDCi (148kW/200PS) - Puma........ PAGE 303-05B-2 303-05B-2 303-05B-4 (21 567 0) 303-05B-6 (21 569 0) 303-05B-8

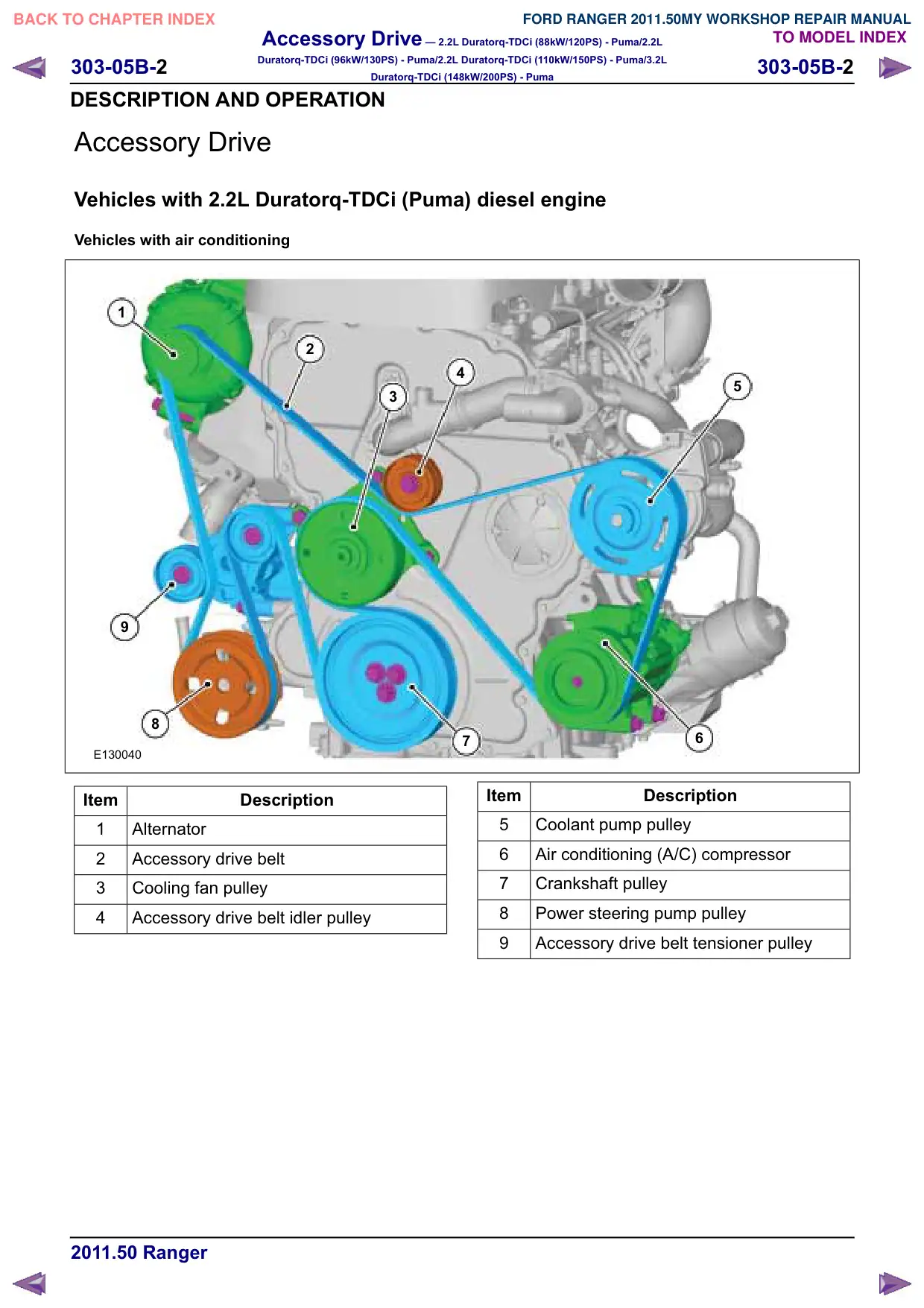

Accessory Drive – 2.2L Duratorq-TDCi (88kW/120PS) - Puma/2.2L 303-05B-2 Duratorq-TDCi (96kW/130PS) - Puma/2.2L Duratorq-TDCi (110kW/150PS) - Puma/3.2L 303-05B-2 Duratorq-TDCi (148kW/200PS) - Puma DESCRIPTION AND OPERATION Accessory Drive Vehicles with 2.2L Duratorq-TDCi (Puma) diesel engine Vehicles with air conditioning 1 2 3 8 E130040 Item Description 1 Alternator 2 Accessory drive belt 3 Cooling fan pulley 4 Accessory drive belt idler pulley 4 5 6 7 Item Description 5 Coolant pump pulley 6 Air conditioning (A/C) compressor 7 Crankshaft pulley 8 Power steering pump pulley Accessory drive belt tensioner pulley

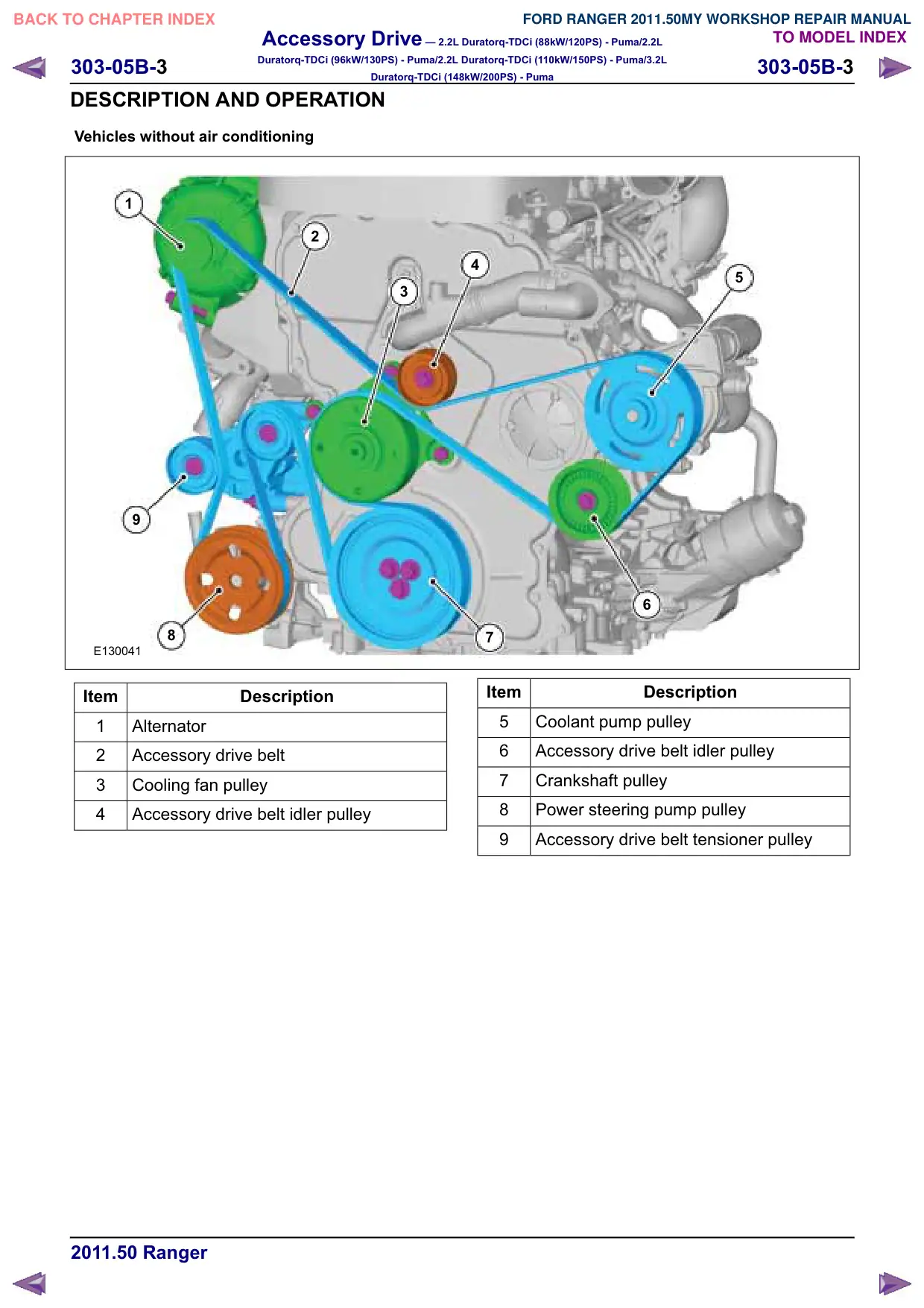

Accessory Drive – 2.2L Duratorq-TDCi (88kW/120PS) - Puma/2.2L 303-05B-3 Duratorq-TDCi (96kW/130PS) - Puma/2.2L Duratorq-TDCi (110kW/150PS) - Puma/3.2L 303-05B-3 Duratorq-TDCi (148kW/200PS) - Puma DESCRIPTION AND OPERATION Vehicles without air conditioning 1 2 3 8 E130041 Item Description 1 Alternator 2 Accessory drive belt 3 Cooling fan pulley 4 Accessory drive belt idler pulley 4 5 6 7 Item Description 5 Coolant pump pulley 6 Accessory drive belt idler pulley 7 Crankshaft pulley 8 Power steering pump pulley Accessory drive belt tensioner pulley

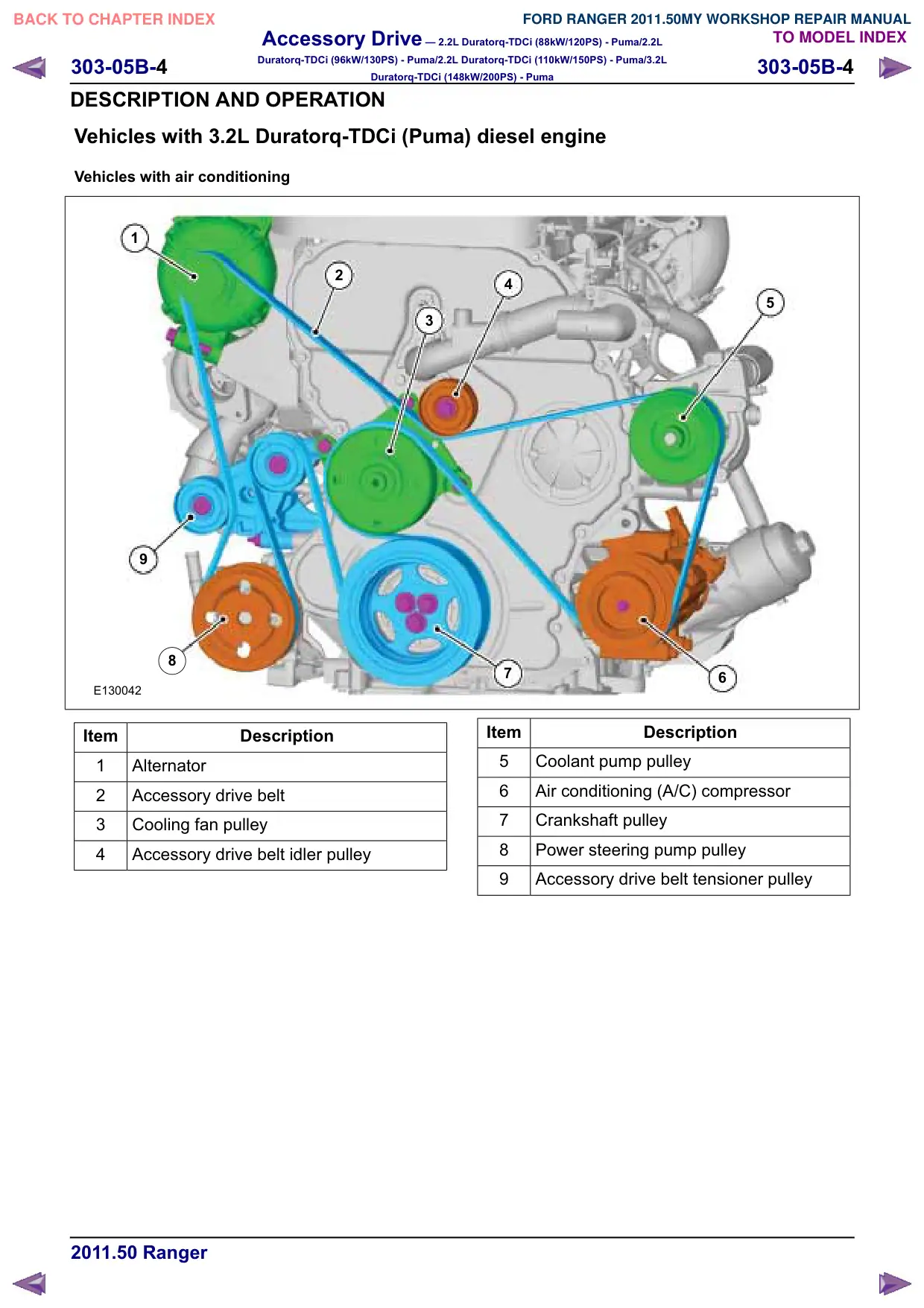

Accessory Drive – 2.2L Duratorq-TDCi (88kW/120PS) - Puma/2.2L 303-05B-4 Duratorq-TDCi (96kW/130PS) - Puma/2.2L Duratorq-TDCi (110kW/150PS) - Puma/3.2L 303-05B-4 Duratorq-TDCi (148kW/200PS) - Puma DESCRIPTION AND OPERATION Vehicles with 3.2L Duratorq-TDCi (Puma) diesel engine Vehicles with air conditioning 1 2 3 8 E130042 Item Description 1 Alternator 2 Accessory drive belt 3 Cooling fan pulley 4 Accessory drive belt idler pulley 4 5 7 6 Item Description 5 Coolant pump pulley 6 Air conditioning (A/C) compressor 7 Crankshaft pulley 8 Power steering pump pulley Accessory drive belt tensioner pulley

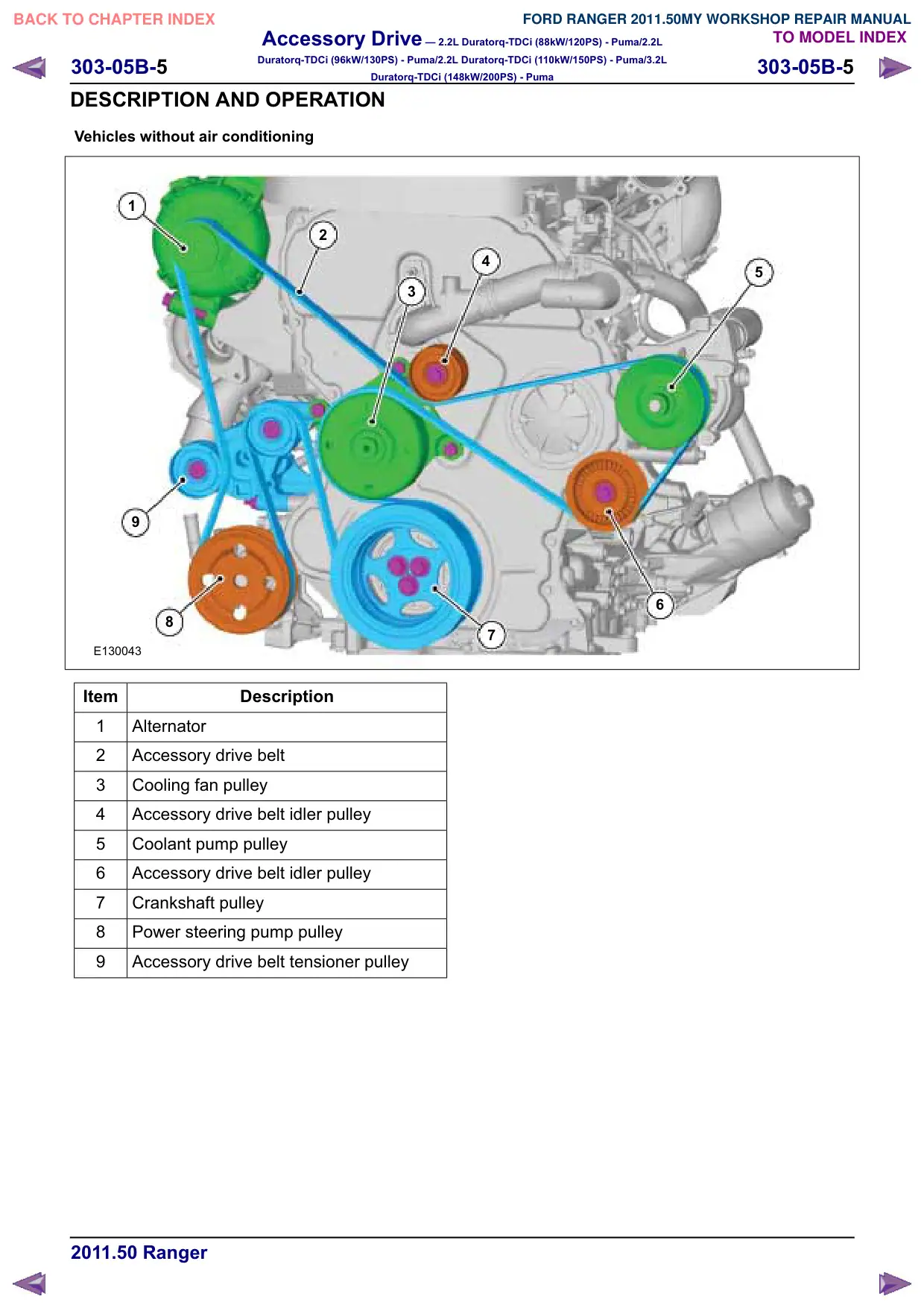

Accessory Drive – 2.2L Duratorq-TDCi (88kW/120PS) - Puma/2.2L 303-05B-5 Duratorq-TDCi (96kW/130PS) - Puma/2.2L Duratorq-TDCi (110kW/150PS) - Puma/3.2L 303-05B-5 Duratorq-TDCi (148kW/200PS) - Puma DESCRIPTION AND OPERATION Vehicles without air conditioning 1 2 3 8 E130043 Item Description 1 Alternator 2 Accessory drive belt 3 Cooling fan pulley 4 Accessory drive belt idler pulley 5 Coolant pump pulley 6 Accessory drive belt idler pulley 7 Crankshaft pulley 8 Power steering pump pulley Accessory drive belt tensioner pulley 4 5 6 7

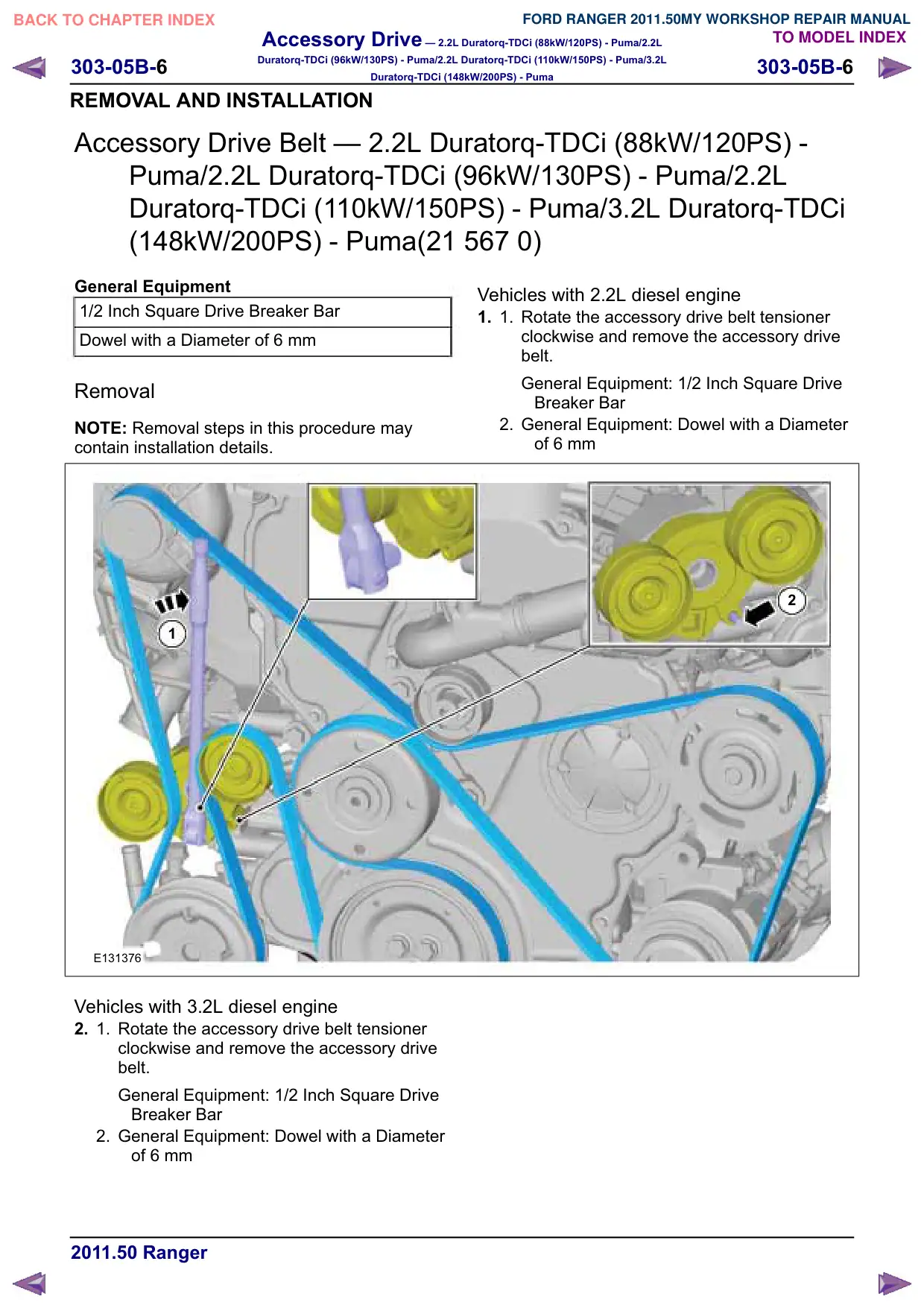

Accessory Drive – 2.2L Duratorq-TDCi (88kW/120PS) - Puma/2.2L Duratorq-TDCi (96kW/130PS) - Puma/2.2L Duratorq-TDCi (110kW/150PS) - Puma/3.2L 303-05B-6 303-05B-6 Duratorq-TDCi (148kW/200PS) - Puma REMOVAL AND INSTALLATION Accessory Drive Belt – 2.2L Duratorq-TDCi (88kW/120PS) - Puma/2.2L Duratorq-TDCi (96kW/130PS) - Puma/2.2L Duratorq-TDCi (110kW/150PS) - Puma/3.2L Duratorq-TDCi (148kW/200PS) - Puma(21 567 0) General Equipment 1/2 Inch Square Drive Breaker Bar Dowel with a Diameter of 6 mm Removal NOTE: Removal steps in this procedure may contain installation details. 1 E131376 Vehicles with 3.2L diesel engine 2. 1. Rotate the accessory drive belt tensioner clockwise and remove the accessory drive belt. General Equipment: 1/2 Inch Square Drive Breaker Bar 2. General Equipment: Dowel with a Diameter of 6 mm Vehicles with 2.2L diesel engine 1. 1. Rotate the accessory drive belt tensioner clockwise and remove the accessory drive belt. General Equipment: 1/2 Inch Square Drive Breaker Bar 2. General Equipment: Dowel with a Diameter of 6 mm 2

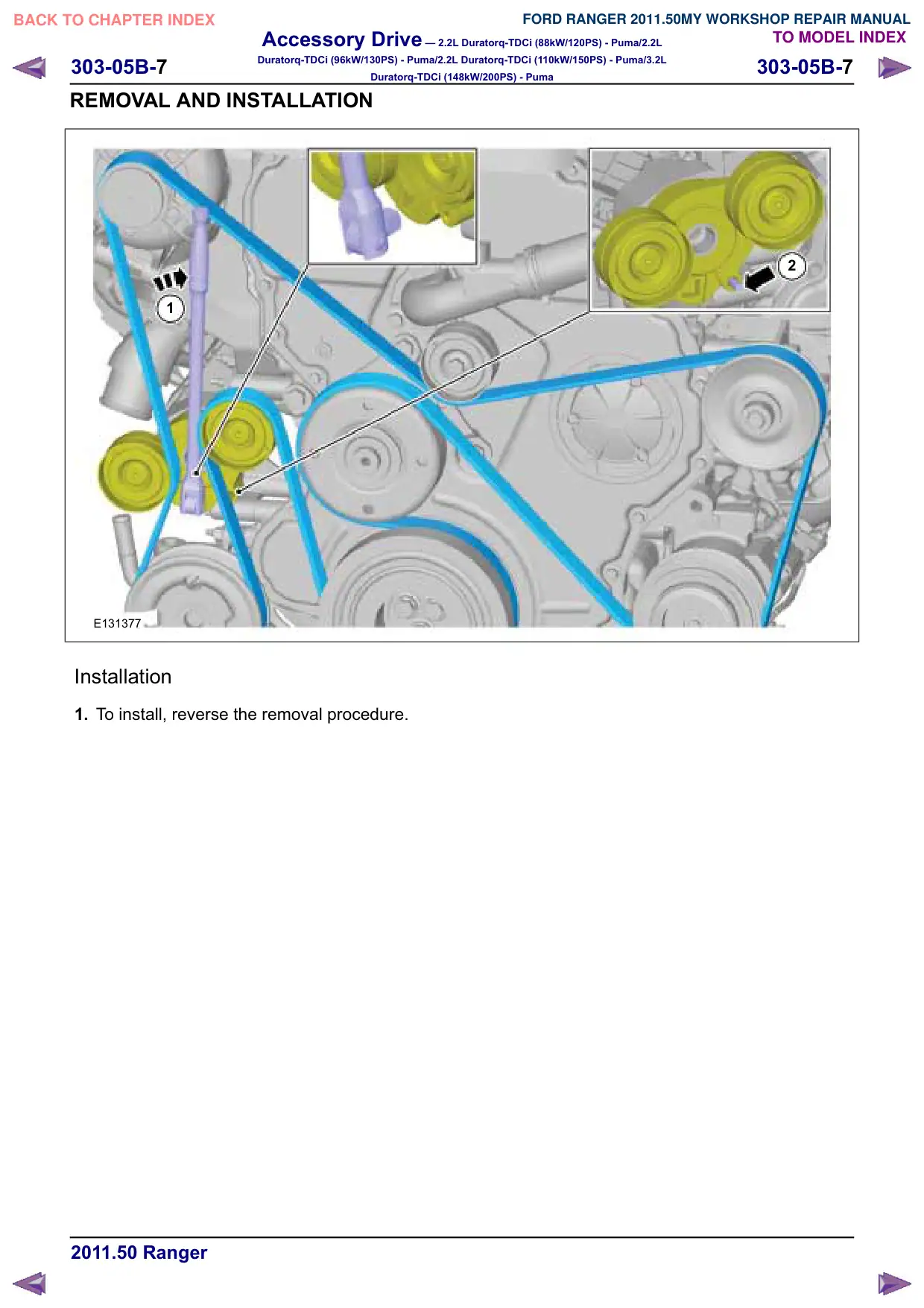

Accessory Drive – 2.2L Duratorq-TDCi (88kW/120PS) - Puma/2.2L Duratorq-TDCi (96kW/130PS) - Puma/2.2L Duratorq-TDCi (110kW/150PS) - Puma/3.2L 303-05B-7 303-05B-7 Duratorq-TDCi (148kW/200PS) - Puma REMOVAL AND INSTALLATION 1 E131377 Installation 1. To install, reverse the removal procedure. 2

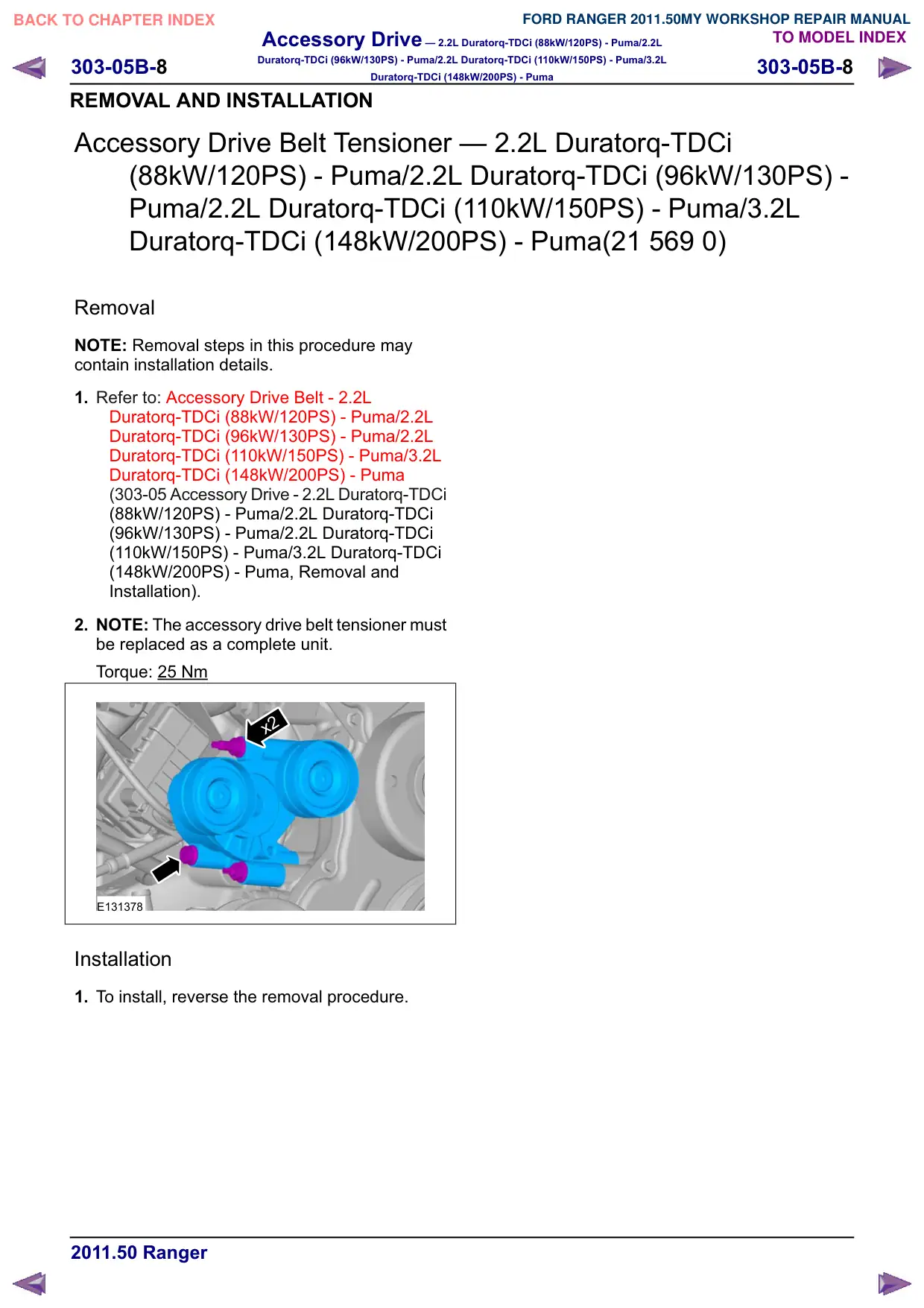

Accessory Drive – 2.2L Duratorq-TDCi (88kW/120PS) - Puma/2.2L Duratorq-TDCi (96kW/130PS) - Puma/2.2L Duratorq-TDCi (110kW/150PS) - Puma/3.2L 303-05B-8 303-05B-8 Duratorq-TDCi (148kW/200PS) - Puma REMOVAL AND INSTALLATION Accessory Drive Belt Tensioner – 2.2L Duratorq-TDCi (88kW/120PS) - Puma/2.2L Duratorq-TDCi (96kW/130PS) - Puma/2.2L Duratorq-TDCi (110kW/150PS) - Puma/3.2L Duratorq-TDCi (148kW/200PS) - Puma(21 569 0) Removal NOTE: Removal steps in this procedure may contain installation details. 1. Refer to: Accessory Drive Belt - 2.2L Duratorq-TDCi (88kW/120PS) - Puma/2.2L Duratorq-TDCi (96kW/130PS) - Puma/2.2L Duratorq-TDCi (110kW/150PS) - Puma/3.2L Duratorq-TDCi (148kW/200PS) - Puma (303-05 Accessory Drive - 2.2L Duratorq-TDCi (88kW/120PS) - Puma/2.2L Duratorq-TDCi (96kW/130PS) - Puma/2.2L Duratorq-TDCi (110kW/150PS) - Puma/3.2L Duratorq-TDCi (148kW/200PS) - Puma, Removal and Installation). 2. NOTE: The accessory drive belt tensioner must be replaced as a complete unit. Torque: 25 Nm x2 E131378 Installation 1. To install, reverse the removal procedure.
