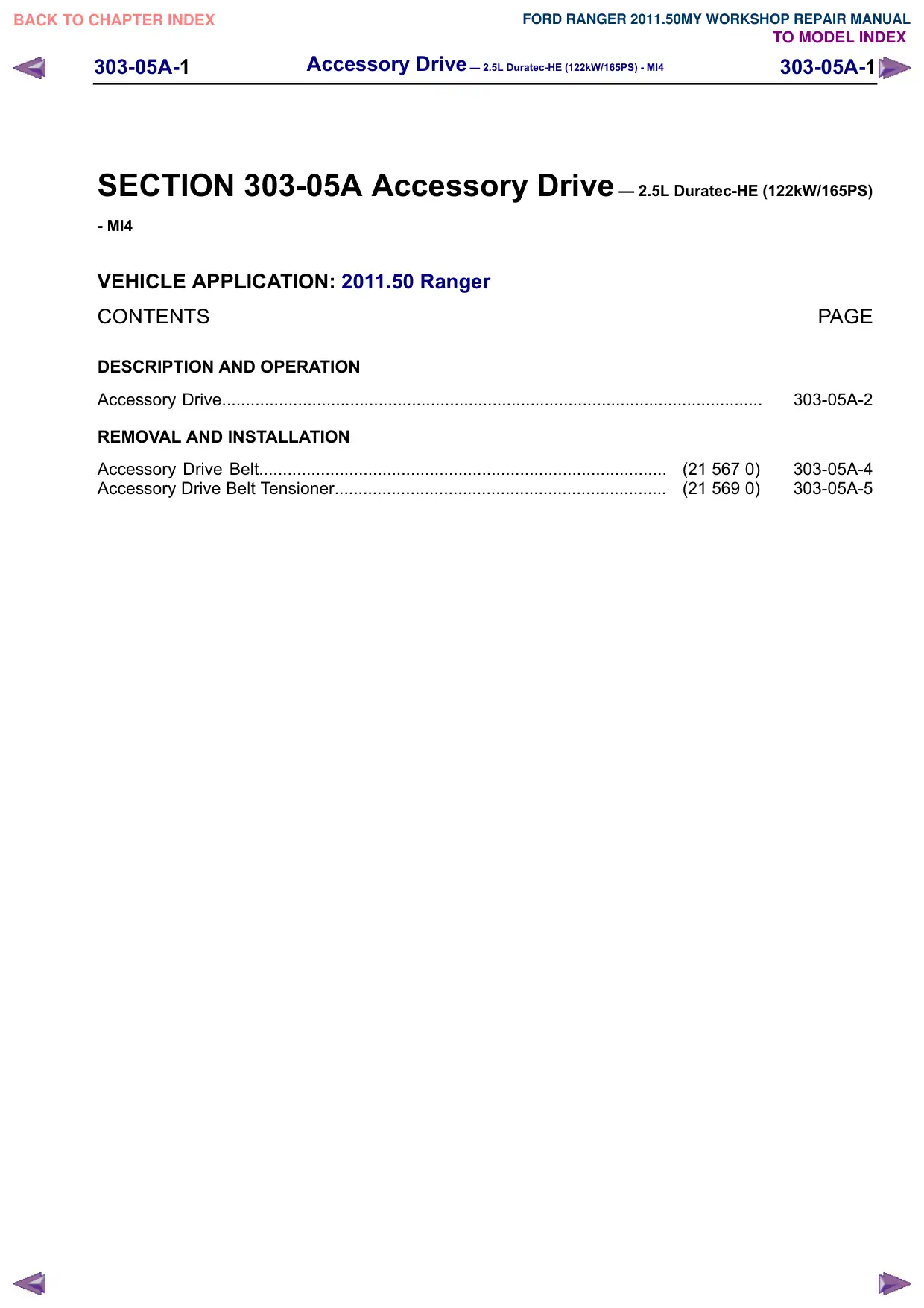

Accessory Drive – 2.5L Duratec-HE (122kW/165PS) - MI4
303-05A-1
303-05A-1
.
SECTION 303-05A Accessory Drive – 2.5L Duratec-HE (122kW/165PS)
- MI4
VEHICLE APPLICATION: 2011.50 Ranger
CONTENTS
DESCRIPTION AND OPERATION
Accessory Drive..................................................................................................................
REMOVAL AND INSTALLATION
Accessory Drive Belt......................................................................................
Accessory Drive Belt Tensioner......................................................................
PAGE
303-05A-2
(21 567 0)
303-05A-4
(21 569 0)
303-05A-5
Página 797 · Acionamento de acessórios

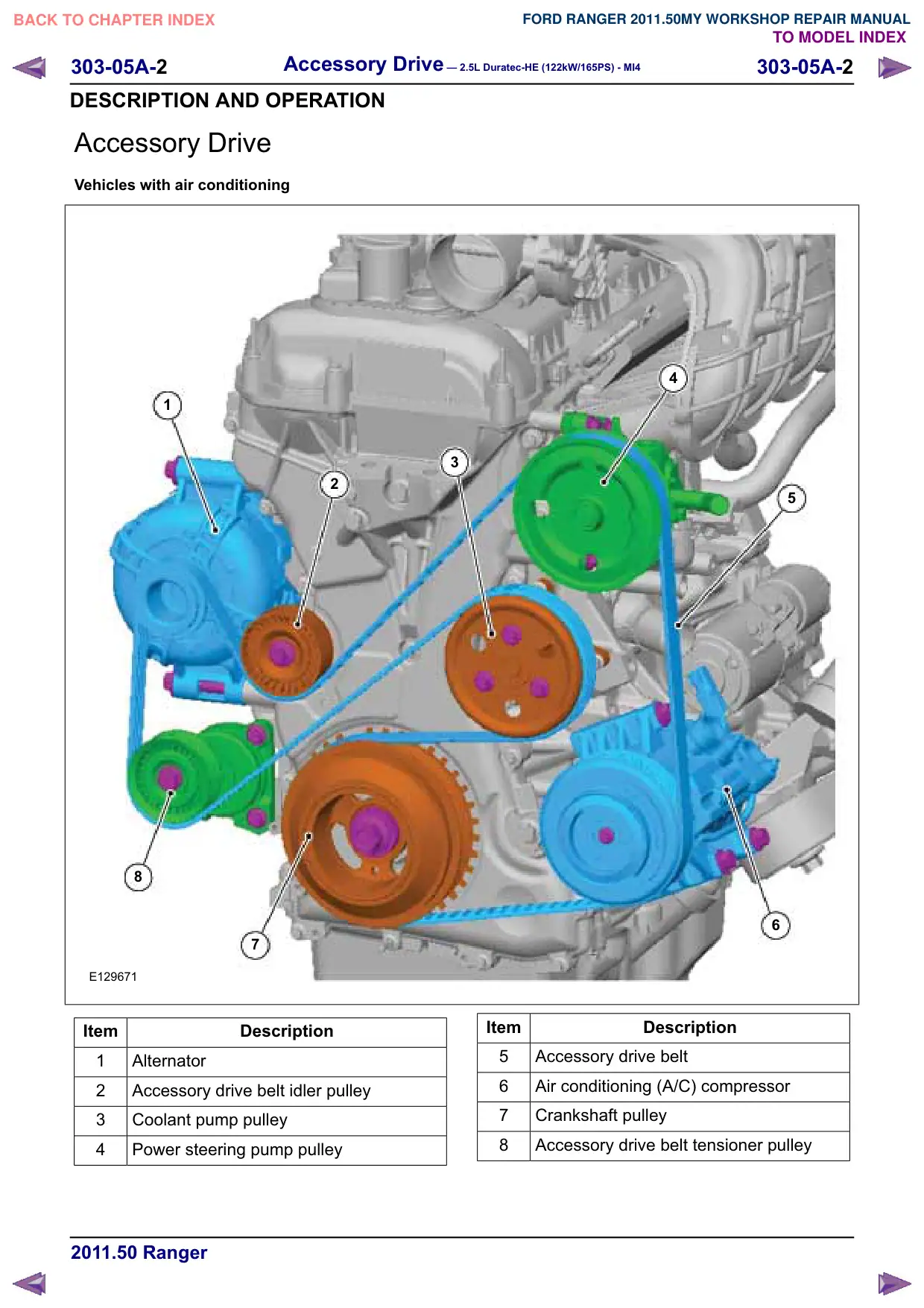

Accessory Drive
https://ranger.mbrace.com.br/oficina/797 · imagem: https://ranger.mbrace.com.br/img/oficina/797.webp
Accessory Drive – 2.5L Duratec-HE (122kW/165PS) - MI4
303-05A-2
303-05A-2
DESCRIPTION AND OPERATION
Accessory Drive
Vehicles with air conditioning
1
2
8
7
E129671
Item
Description
1
Alternator
2
Accessory drive belt idler pulley
3
Coolant pump pulley
4
Power steering pump pulley
4
3
5
6
Item
Description
5
Accessory drive belt
6
Air conditioning (A/C) compressor
7
Crankshaft pulley
8
Accessory drive belt tensioner pulley
Página 798 · Acionamento de acessórios

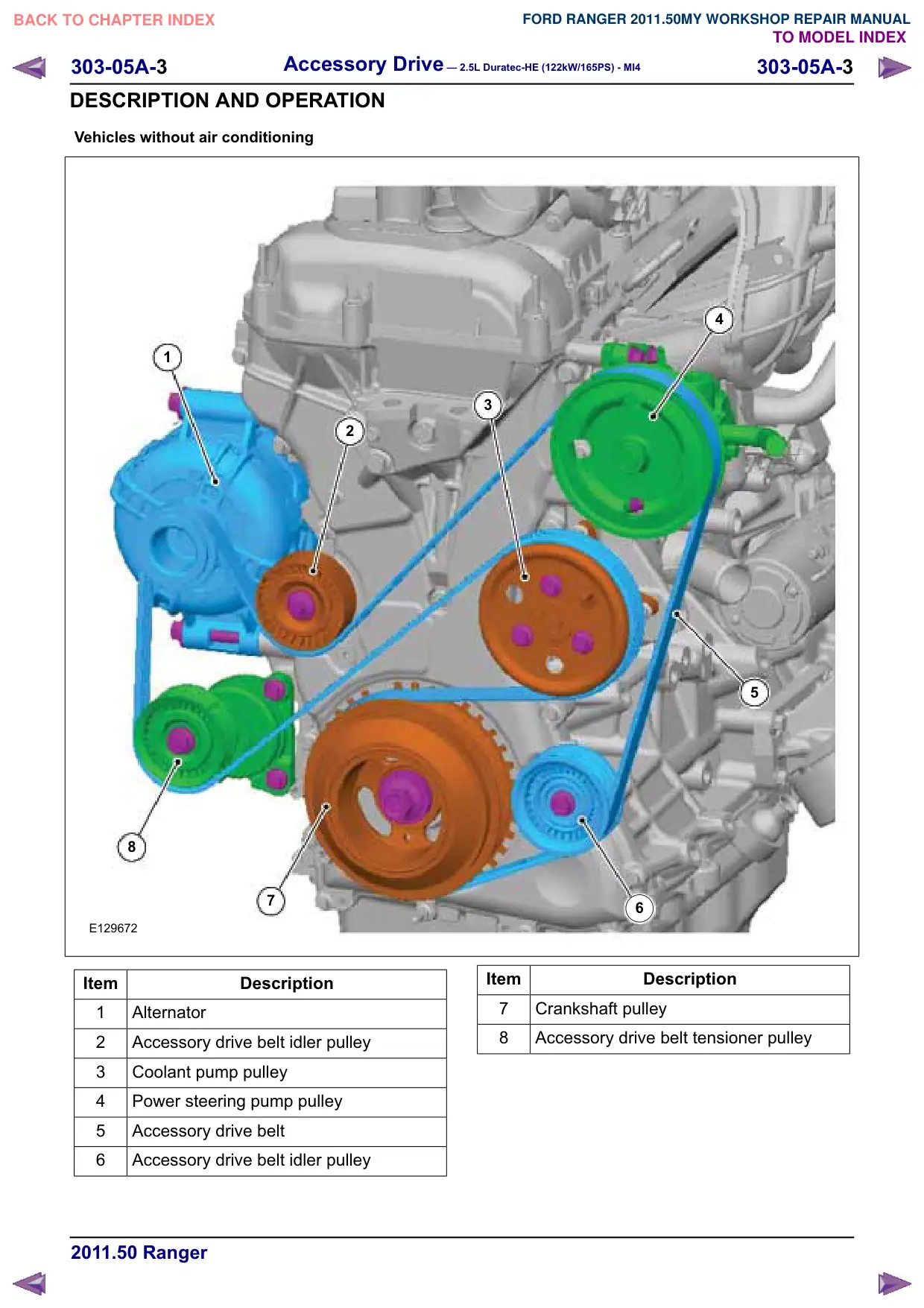

Accessory Drive
https://ranger.mbrace.com.br/oficina/798 · imagem: https://ranger.mbrace.com.br/img/oficina/798.webp
Accessory Drive – 2.5L Duratec-HE (122kW/165PS) - MI4
303-05A-3
303-05A-3
DESCRIPTION AND OPERATION
Vehicles without air conditioning
1
2
8
7
E129672
Item
Description
1
Alternator
2
Accessory drive belt idler pulley
3
Coolant pump pulley
4
Power steering pump pulley
5
Accessory drive belt
6
Accessory drive belt idler pulley
4
3
5
6
Item
Description
7
Crankshaft pulley
8
Accessory drive belt tensioner pulley
Página 799 · Correia de acessórios
Accessory Drive Belt
https://ranger.mbrace.com.br/oficina/799 · imagem: https://ranger.mbrace.com.br/img/oficina/799.webp
Accessory Drive – 2.5L Duratec-HE (122kW/165PS) - MI4
303-05A-4
303-05A-4
REMOVAL AND INSTALLATION
Accessory Drive Belt(21 567 0)
Special Tool(s)
303-676
Release Tool, Belt Tensioner
303676
Removal
NOTE: Removal steps in this procedure may
contain installation details.
1. Refer to: Lifting (100-02 Jacking and Lifting,
Description and Operation).
2. Torque: 30 Nm
x4
E130132
3. Rotate the accessory drive belt tensioner
clockwise and remove the accessory drive belt.
Remove the Special Tool(s): 303-676
303-676
E131246
Installation
1. To install, reverse the removal procedure.
Refer to: Accessory Drive (303-05 Accessory
Drive - 2.5L Duratec-HE (122kW/165PS) -
MI4, Description and Operation).
Página 800 · Tensor da correia de acessórios
Accessory Drive Belt Tensioner
https://ranger.mbrace.com.br/oficina/800 · imagem: https://ranger.mbrace.com.br/img/oficina/800.webp
Accessory Drive – 2.5L Duratec-HE (122kW/165PS) - MI4
303-05A-5
303-05A-5
REMOVAL AND INSTALLATION
Accessory Drive Belt Tensioner(21 569 0)
Removal
NOTE: Removal steps in this procedure may
contain installation details.
1. Refer to: Accessory Drive Belt (303-05
Accessory Drive - 2.5L Duratec-HE
(122kW/165PS) - MI4, Removal and
Installation).
2. NOTE: The accessory drive belt tensioner must
be replaced as a complete unit.
Torque: 25 Nm
x2
E131257
Installation
1. To install, reverse the removal procedure.
