206-07 Servofreio e bomba de vácuo

Power Brake Actuation 206-07-1 206-07-1 . SECTION 206-07 Power Brake Actuation VEHICLE APPLICATION: 2011.50 Ranger CONTENTS REMOVAL AND INSTALLATION Brake Booster – LHD 4WD/LHD RWD......................................................... Brake Booster – RHD 4WD/RHD RWD........................................................ Brake Vacuum Pump – 2.2L Duratorq-TDCi (88kW/120PS) - Puma/2.2L Duratorq-TDCi (96kW/130PS) - Puma/2.2L Duratorq-TDCi (110kW/150PS) - Puma.......................................................................................................... Brake Vacuum Pump – 3.2L Duratorq-TDCi (148kW/200PS) - Puma.......... PAGE (12 451 0) 206-07-2 (12 451 0) 206-07-4 (12 414 0) 206-07-5 (12 414 0) 206-07-7

Power Brake Actuation 206-07-2 206-07-2 REMOVAL AND INSTALLATION Brake Booster – LHD 4WD/LHD RWD(12 451 0) Removal NOTE: Removal steps in this procedure may contain installation details. 1. Refer to: Brake System Health and Safety Precautions (100-00 General Information, Description and Operation). 2. Refer to: Battery Disconnect and Connect (414-01 Battery, Mounting and Cables, General Procedures). Vehicles with 2.5L engine 3. Torque: 25 Nm x4 E126814 Vehicles with diesel engine 4. Refer to: Hydraulic Control Unit (HCU) - LHD 4WD/LHD RWD (206-09 Anti-Lock Control, Removal and Installation). 5. Torque: 25 Nm x4 E126816 All vehicles 6. Refer to: Brake Master Cylinder - LHD 4WD/LHD RWD (206-06 Hydraulic Brake Actuation, Removal and Installation). 7. 2. Torque: 15 Nm x4 2 1 E126813

Power Brake Actuation 206-07-3 206-07-3 REMOVAL AND INSTALLATION 8. 1 E126818 Installation CAUTION: Make sure that the brake booster pushrod is correctly located. 1. To install, reverse the removal procedure.

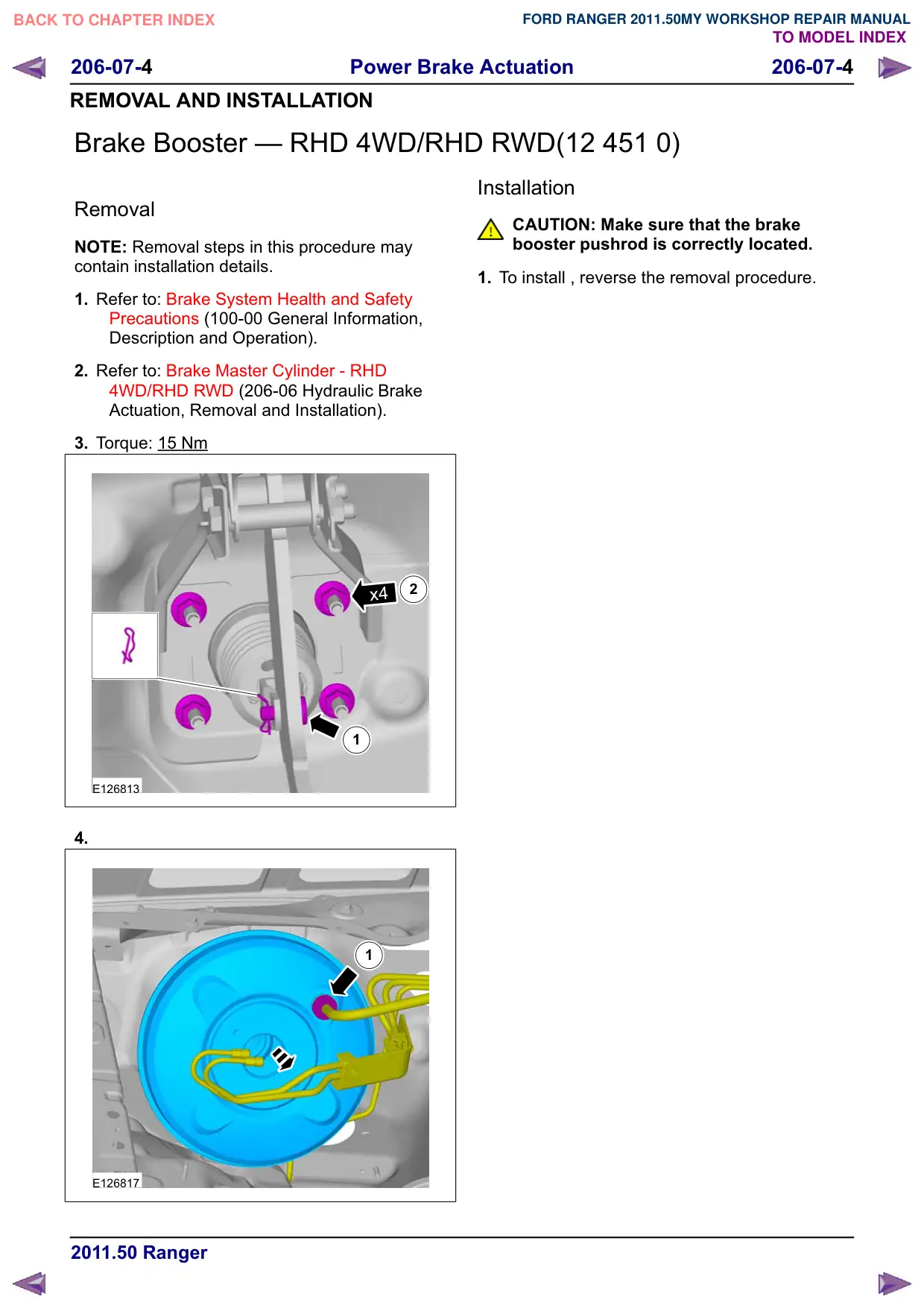

Power Brake Actuation 206-07-4 206-07-4 REMOVAL AND INSTALLATION Brake Booster – RHD 4WD/RHD RWD(12 451 0) Removal NOTE: Removal steps in this procedure may contain installation details. 1. Refer to: Brake System Health and Safety Precautions (100-00 General Information, Description and Operation). 2. Refer to: Brake Master Cylinder - RHD 4WD/RHD RWD (206-06 Hydraulic Brake Actuation, Removal and Installation). 3. Torque: 15 Nm 2 x4 1 E126813 4. 1 E126817 Installation CAUTION: Make sure that the brake booster pushrod is correctly located. 1. To install , reverse the removal procedure.

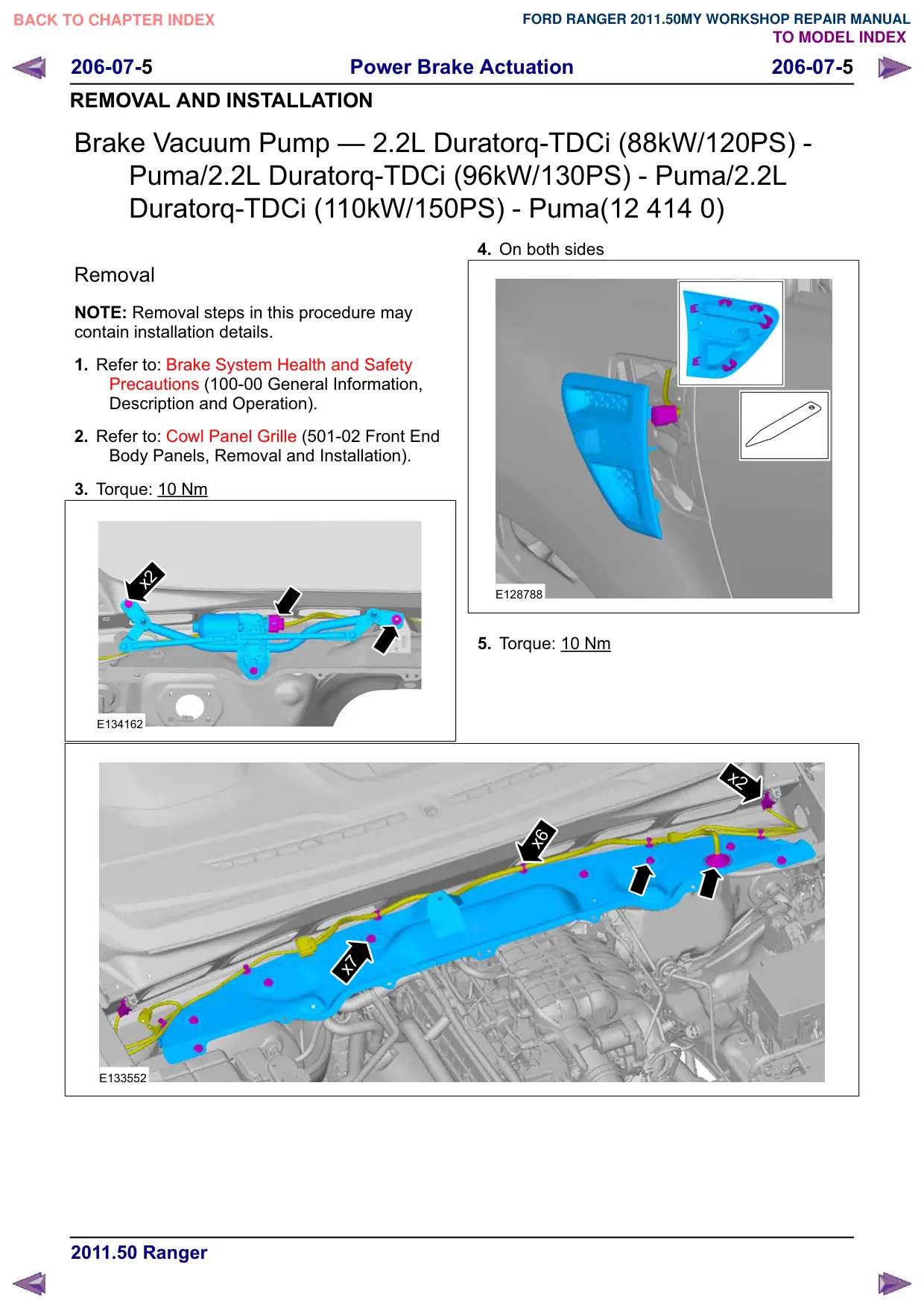

Power Brake Actuation 206-07-5 206-07-5 REMOVAL AND INSTALLATION Brake Vacuum Pump – 2.2L Duratorq-TDCi (88kW/120PS) - Puma/2.2L Duratorq-TDCi (96kW/130PS) - Puma/2.2L Duratorq-TDCi (110kW/150PS) - Puma(12 414 0) Removal NOTE: Removal steps in this procedure may contain installation details. 1. Refer to: Brake System Health and Safety Precautions (100-00 General Information, Description and Operation). 2. Refer to: Cowl Panel Grille (501-02 Front End Body Panels, Removal and Installation). 3. Torque: 10 Nm x2 E134162 x7 E133552 4. On both sides E128788 5. Torque: 10 Nm x2 x6

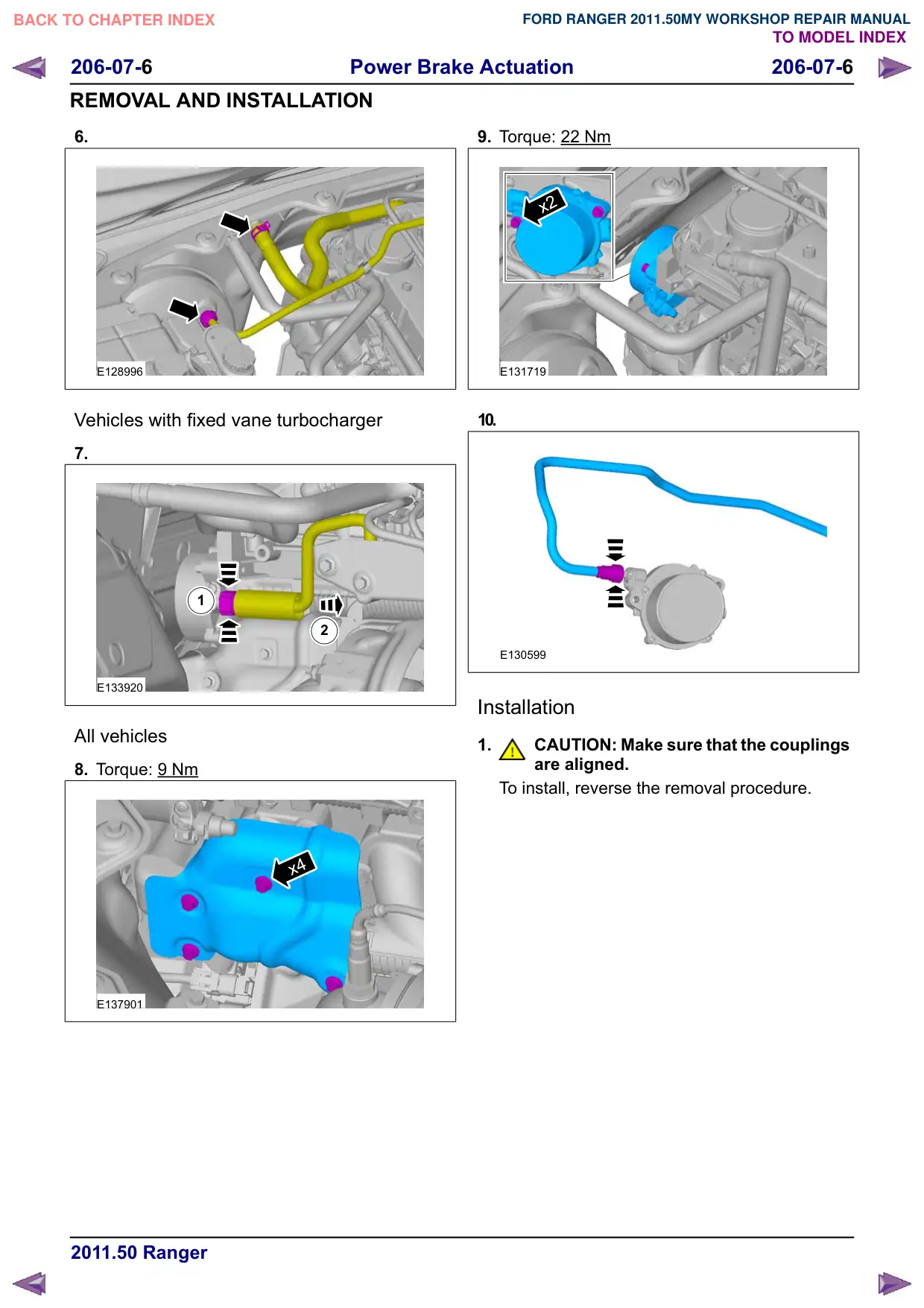

Power Brake Actuation 206-07-6 206-07-6 REMOVAL AND INSTALLATION 6. E128996 Vehicles with fixed vane turbocharger 7. 1 2 E133920 All vehicles 8. Torque: 9 Nm x4 E137901 9. Torque: 22 Nm x2 E131719 10. E130599 Installation 1. CAUTION: Make sure that the couplings are aligned. To install, reverse the removal procedure.

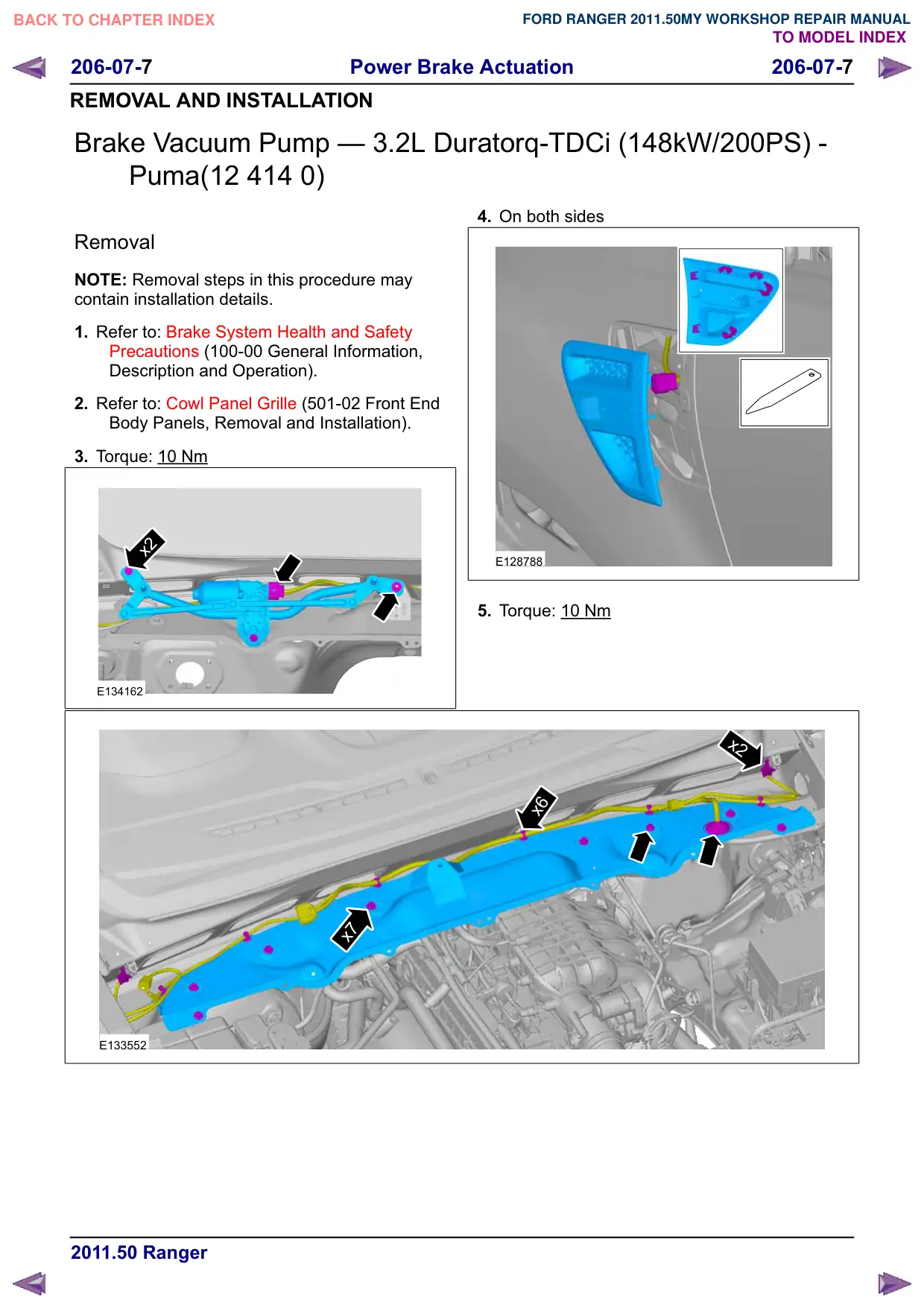

Power Brake Actuation 206-07-7 206-07-7 REMOVAL AND INSTALLATION Brake Vacuum Pump – 3.2L Duratorq-TDCi (148kW/200PS) - Puma(12 414 0) Removal NOTE: Removal steps in this procedure may contain installation details. 1. Refer to: Brake System Health and Safety Precautions (100-00 General Information, Description and Operation). 2. Refer to: Cowl Panel Grille (501-02 Front End Body Panels, Removal and Installation). 3. Torque: 10 Nm x2 E134162 x7 E133552 4. On both sides E128788 5. Torque: 10 Nm x2 x6

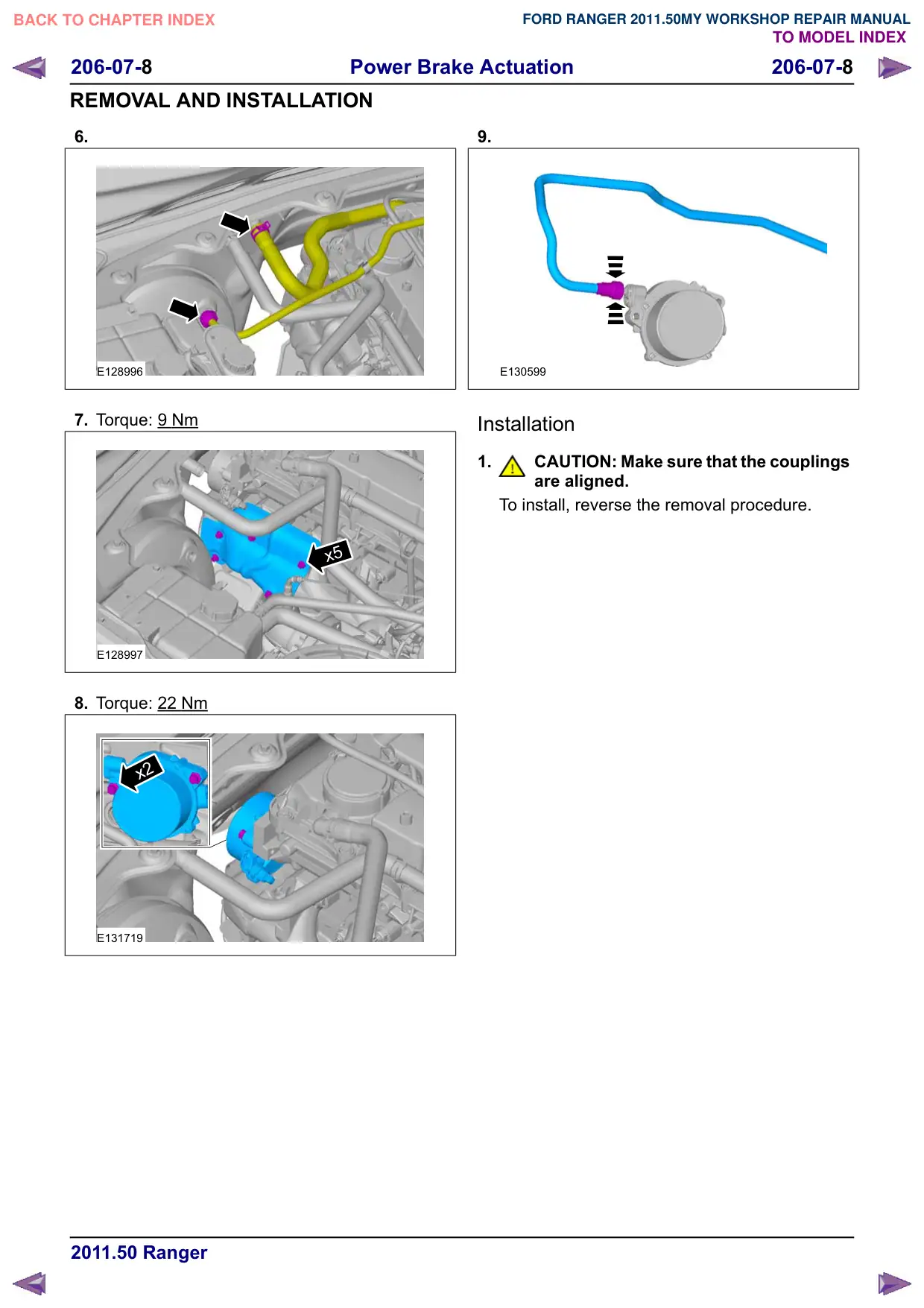

Power Brake Actuation 206-07-8 206-07-8 REMOVAL AND INSTALLATION 6. E128996 7. Torque: 9 Nm x5 x5 E128997 8. Torque: 22 Nm x2 E131719 9. E130599 Installation 1. CAUTION: Make sure that the couplings are aligned. To install, reverse the removal procedure.
