206-05 Freio de estacionamento

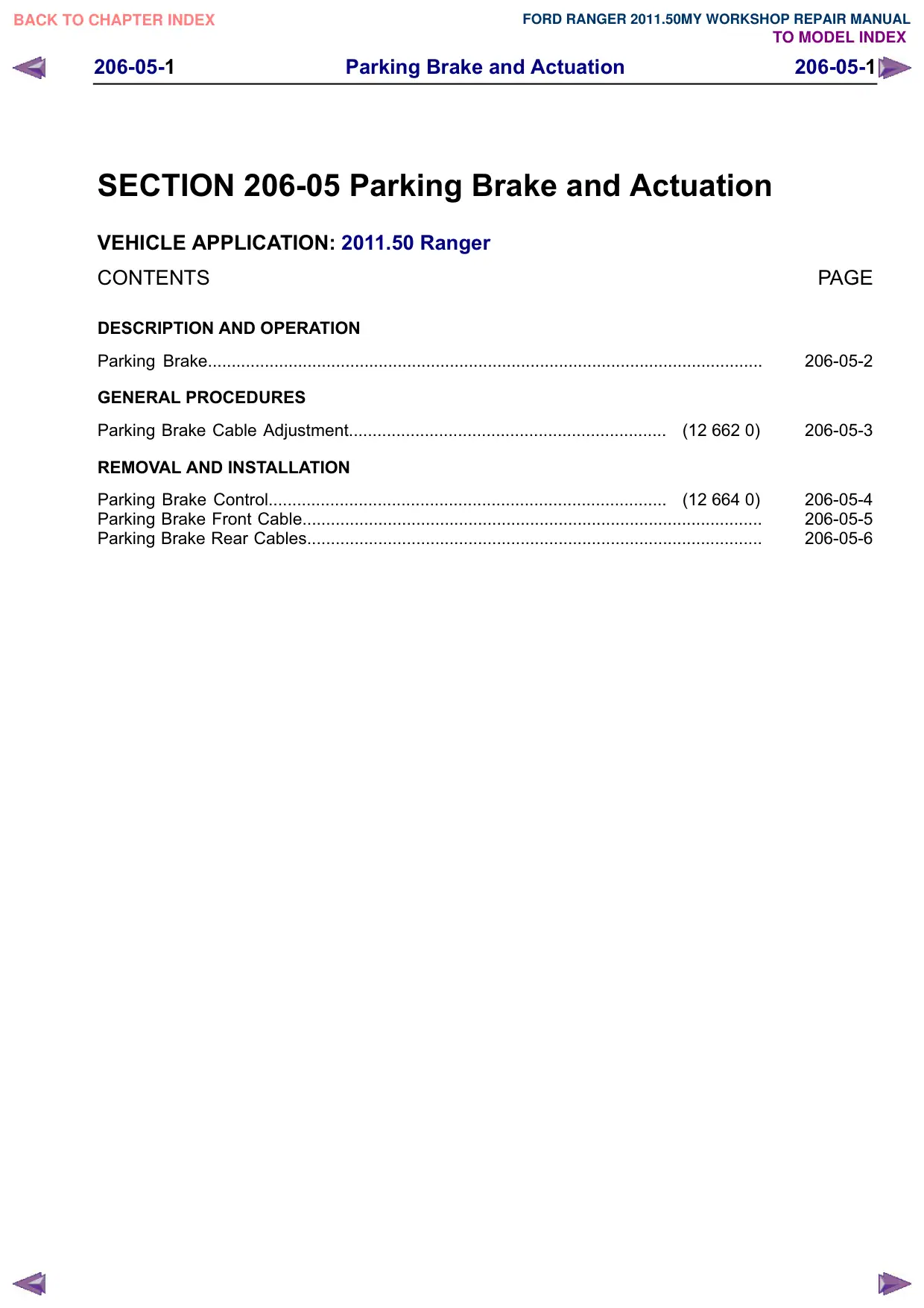

Parking Brake and Actuation 206-05-1 206-05-1 . SECTION 206-05 Parking Brake and Actuation VEHICLE APPLICATION: 2011.50 Ranger CONTENTS DESCRIPTION AND OPERATION Parking Brake..................................................................................................................... GENERAL PROCEDURES Parking Brake Cable Adjustment................................................................... REMOVAL AND INSTALLATION Parking Brake Control.................................................................................... Parking Brake Front Cable................................................................................................. Parking Brake Rear Cables................................................................................................ PAGE 206-05-2 (12 662 0) 206-05-3 (12 664 0) 206-05-4 206-05-5 206-05-6

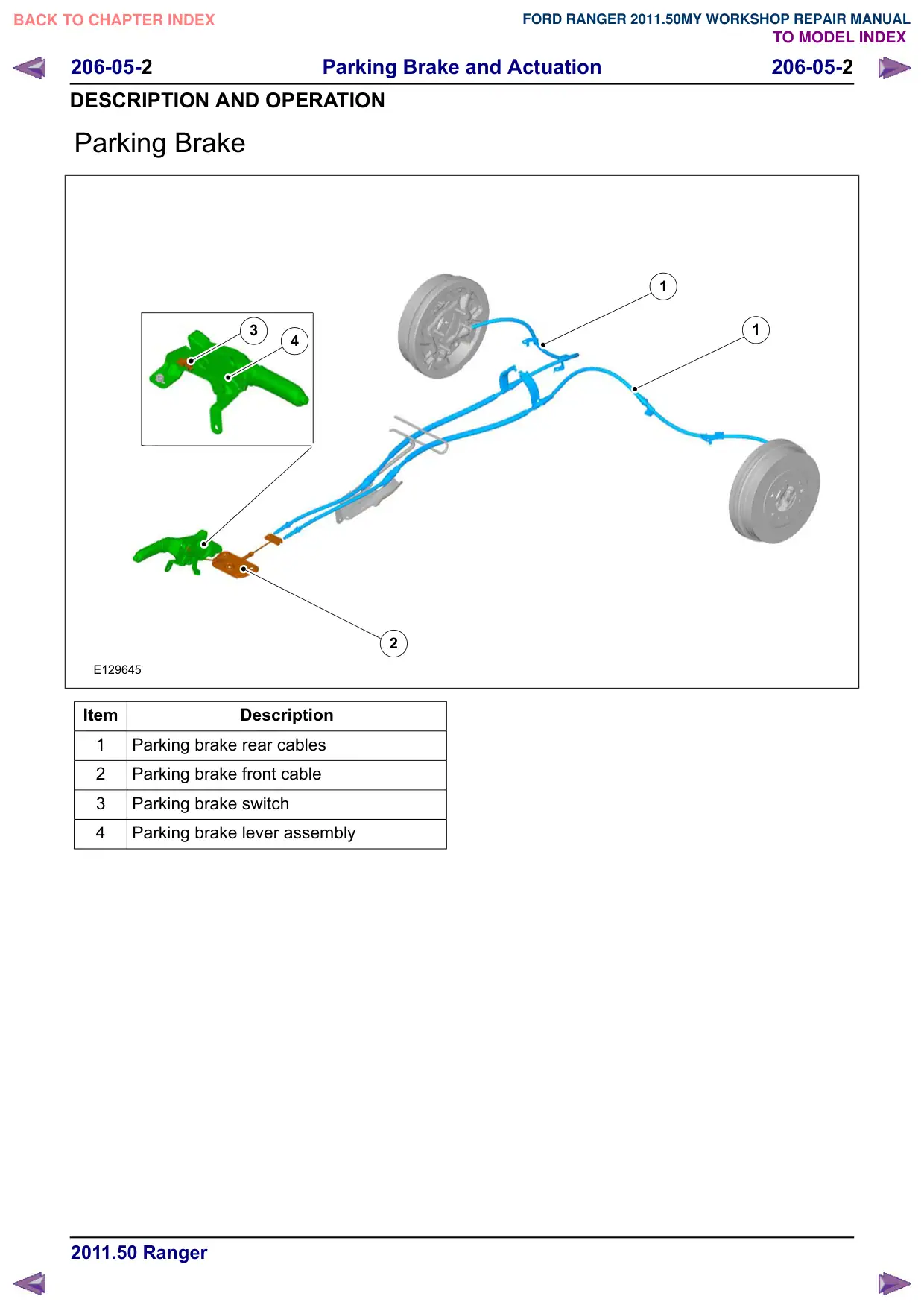

Parking Brake and Actuation 206-05-2 206-05-2 DESCRIPTION AND OPERATION Parking Brake 3 4 2 E129645 Item Description 1 Parking brake rear cables 2 Parking brake front cable 3 Parking brake switch 4 Parking brake lever assembly 1 1

Parking Brake and Actuation 206-05-3 206-05-3 GENERAL PROCEDURES Parking Brake Cable Adjustment(12 662 0) 1. Before adjustment, depress the brake pedal several times while the vehicle is moving in reverse. 2. Pull the parking lever two to three times and turn the adjustment nut until the stroke reaches within range. ‡ Parking brake lever stroke when pulled at 98 N (10 kgf, 22 lbf ) 3-6 notches. E132603 3. After adjustment, pull the parking brake lever one notch and verify that the parking brake warning light illuminates. 4. Verify that the rear brakes do not drag.

Parking Brake and Actuation 206-05-4 206-05-4 REMOVAL AND INSTALLATION Parking Brake Control(12 664 0) Removal NOTE: Removal steps in this procedure may contain installation details. 1. Refer to: Brake System Health and Safety Precautions (100-00 General Information, Description and Operation). 2. Refer to: Floor Console - Single Cab (501-12 Instrument Panel and Console, Removal and Installation). Refer to: Floor Console - Double Cab (501-12 Instrument Panel and Console, Removal and Installation). 3. 2 1 E130347 4. Torque: 22 Nm E130348 5. Torque: 22 Nm x2 E130351 Installation 1. To install, reverse the removal procedure. 2. Refer to: Parking Brake Cable Adjustment (206-05 Parking Brake and Actuation, General Procedures).

Parking Brake and Actuation 206-05-5 206-05-5 REMOVAL AND INSTALLATION Parking Brake Front Cable Removal NOTE: Removal steps in this procedure may contain installation details. 1. Refer to: Floor Console - Single Cab (501-12 Instrument Panel and Console, Removal and Installation). Refer to: Floor Console - Double Cab (501-12 Instrument Panel and Console, Removal and Installation). 2. 2 1 E130347 3. Torque: 18 Nm E137587 4. Refer to: Lifting (100-02 Jacking and Lifting, Description and Operation). 5. 2 1 x2 2 E130350 6. Torque: 18 Nm x2 E137588 Installation 1. To install, reverse the removal procedure. 2. Refer to: Parking Brake Cable Adjustment (206-05 Parking Brake and Actuation, General Procedures).

206-05-6 Parking Brake and Actuation 206-05-6 REMOVAL AND INSTALLATION Parking Brake Rear Cables Removal NOTE: Removal steps in this procedure may contain installation details. 1. Refer to: Brake Shoes (206-02 Drum Brake, Removal and Installation). 2. 2 1 x2 2 E130350 E133813 3. Torque: 17 Nm E133811 4. Torque: 17 Nm E133812 5. Torque: 17 Nm

Parking Brake and Actuation 206-05-7 206-05-7 REMOVAL AND INSTALLATION 6. On both sides. 1 E133814 Installation 1. To install, reverse the removal procedure. 2. Refer to: Parking Brake Cable Adjustment (206-05 Parking Brake and Actuation, General Procedures).
