206-02 Freio a tambor

Drum Brake 206-02-1 206-02-1 . SECTION 206-02 Drum Brake VEHICLE APPLICATION: 2011.50 Ranger CONTENTS REMOVAL AND INSTALLATION Wheel Cylinder................................................................................................................... Brake Shoes....................................................................................................................... PAGE 206-02-2 206-02-3

Drum Brake 206-02-2 206-02-2 REMOVAL AND INSTALLATION Wheel Cylinder Removal NOTE: Removal steps in this procedure may contain installation details. 1. Refer to: Brake System Health and Safety Precautions (100-00 General Information, Description and Operation). 2. Refer to: Brake Shoes (206-02 Drum Brake, Removal and Installation). 3. 1. Torque: 19 Nm 2. Torque: 13 Nm 1 x2 2 E126657 Installation 1. To install, reverse the removal procedure. 2. Refer to: Brake System Bleeding (206-00 Brake System - General Information, General Procedures).

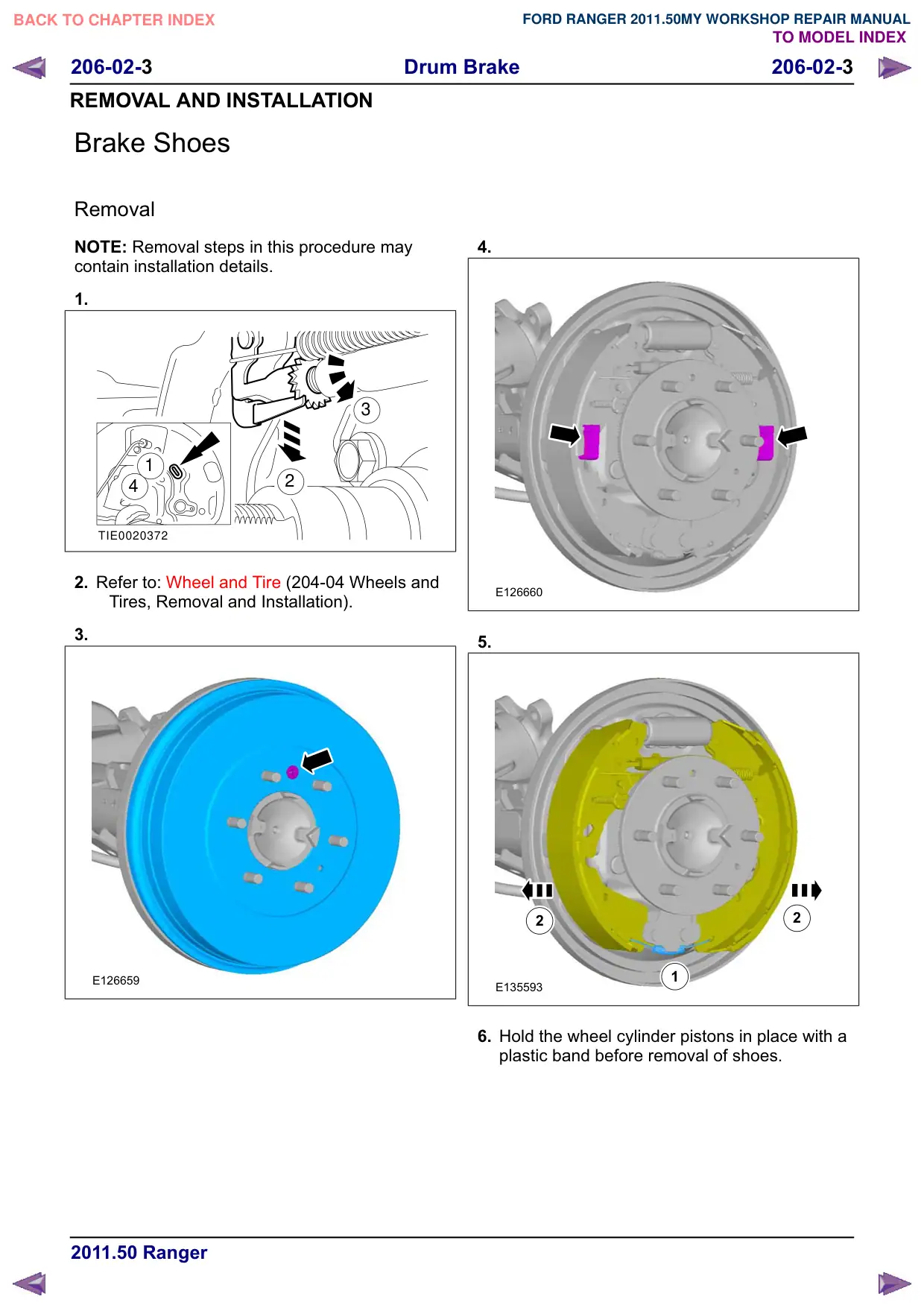

Drum Brake 206-02-3 206-02-3 REMOVAL AND INSTALLATION Brake Shoes Removal NOTE: Removal steps in this procedure may contain installation details. 1. 3 1 2 4 TIE0020372 2. Refer to: Wheel and Tire (204-04 Wheels and Tires, Removal and Installation). 3. E126659 4. E126660 5. 2 2 1 E135593 6. Hold the wheel cylinder pistons in place with a plastic band before removal of shoes.

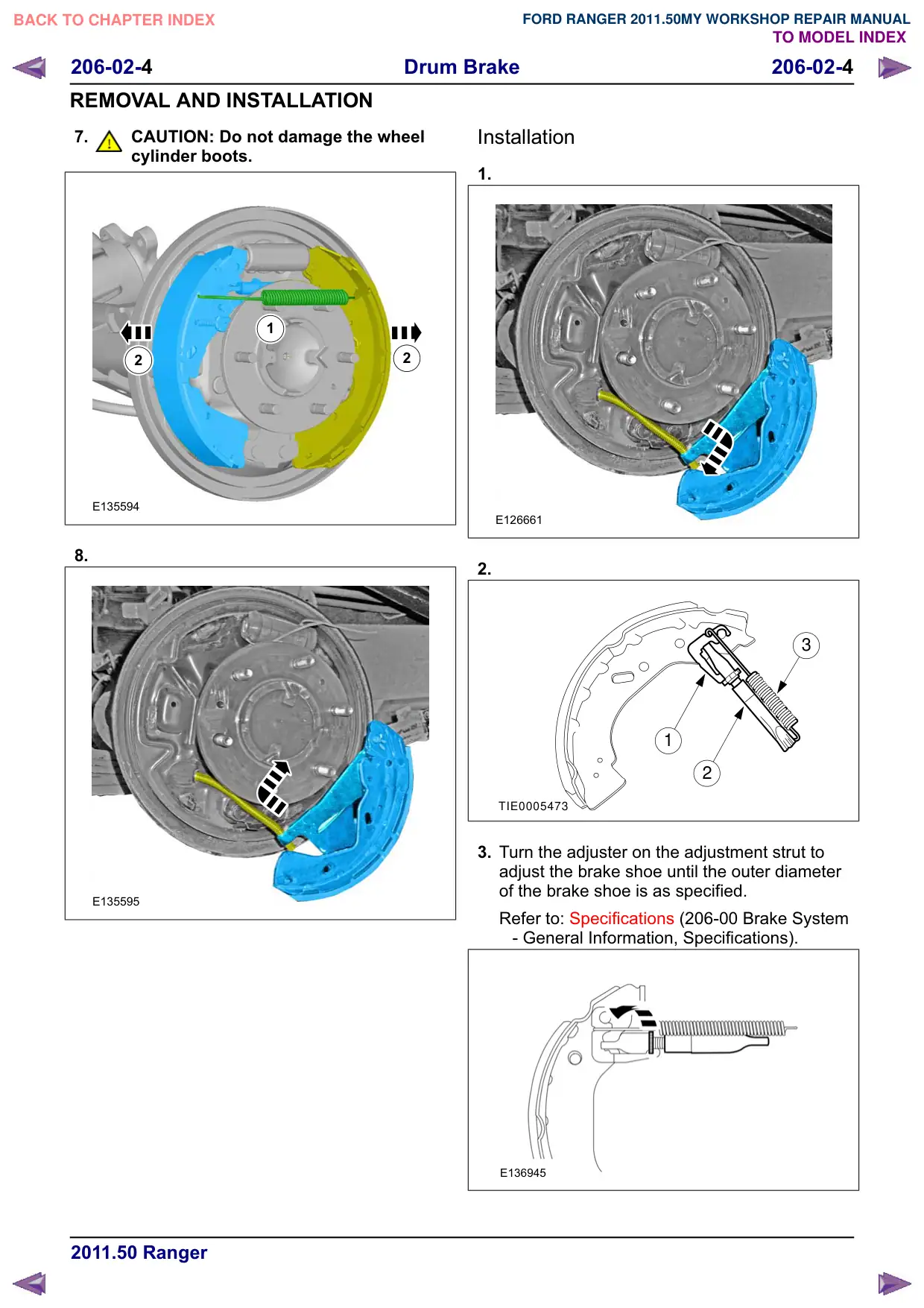

Drum Brake 206-02-4 206-02-4 REMOVAL AND INSTALLATION 7. CAUTION: Do not damage the wheel cylinder boots. 1 2 2 E135594 8. E135595 Installation 1. E126661 2. 3 1 2 TIE0005473 3. Turn the adjuster on the adjustment strut to adjust the brake shoe until the outer diameter of the brake shoe is as specified. Refer to: Specifications (206-00 Brake System - General Information, Specifications). E136945

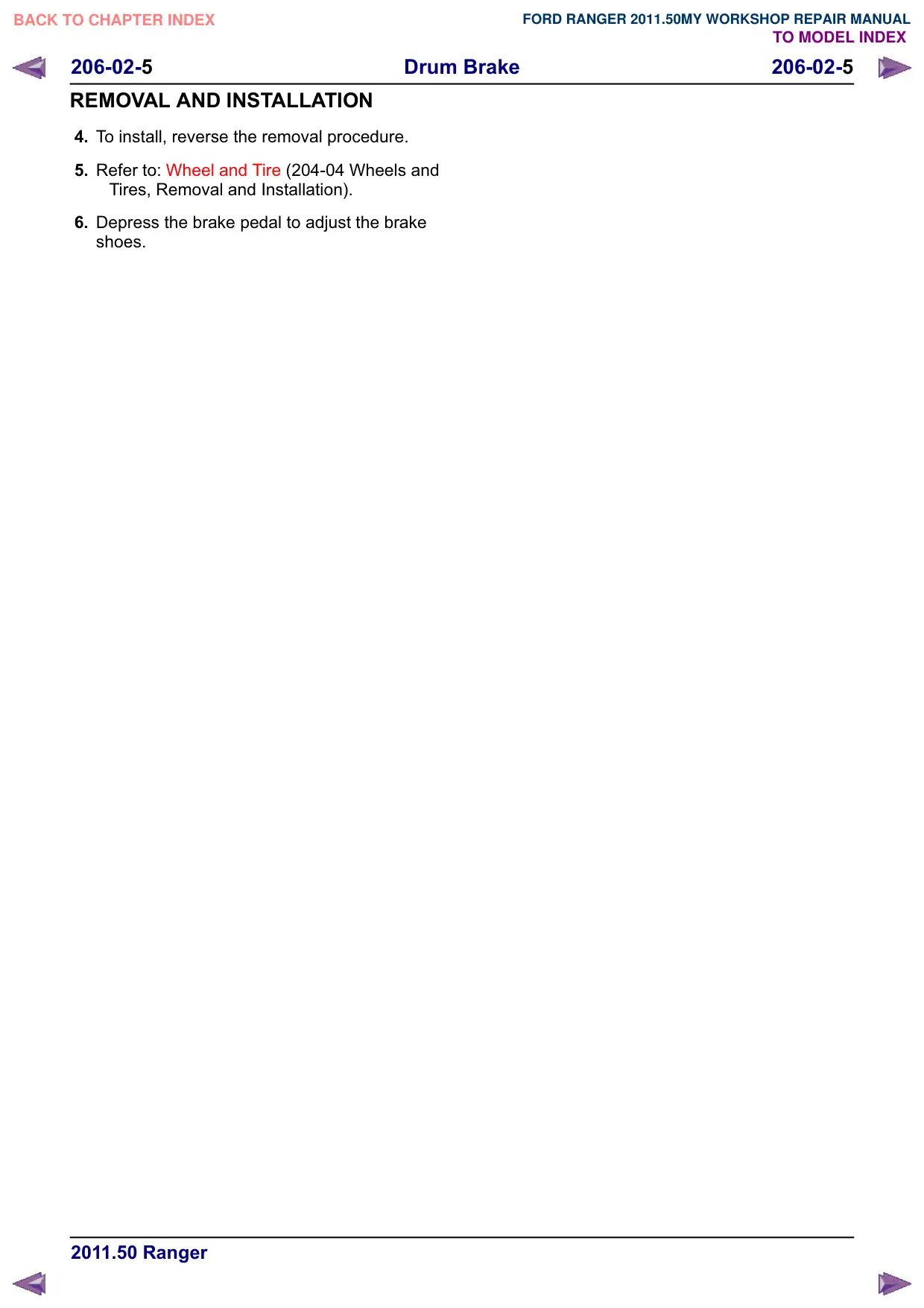

Drum Brake 206-02-5 206-02-5 REMOVAL AND INSTALLATION 4. To install, reverse the removal procedure. 5. Refer to: Wheel and Tire (204-04 Wheels and Tires, Removal and Installation). 6. Depress the brake pedal to adjust the brake shoes.
