205-05 Semieixos traseiros

Oficina · páginas 157–162

Texto completo da seção, página por página. Toque no título para ver a página com a imagem.

  1. Índice da seção p. 157
  2. Semieixo traseiro p. 158–162

Página 157 · Índice da seção

Contents

https://ranger.mbrace.com.br/oficina/157 · imagem: https://ranger.mbrace.com.br/img/oficina/157.webp

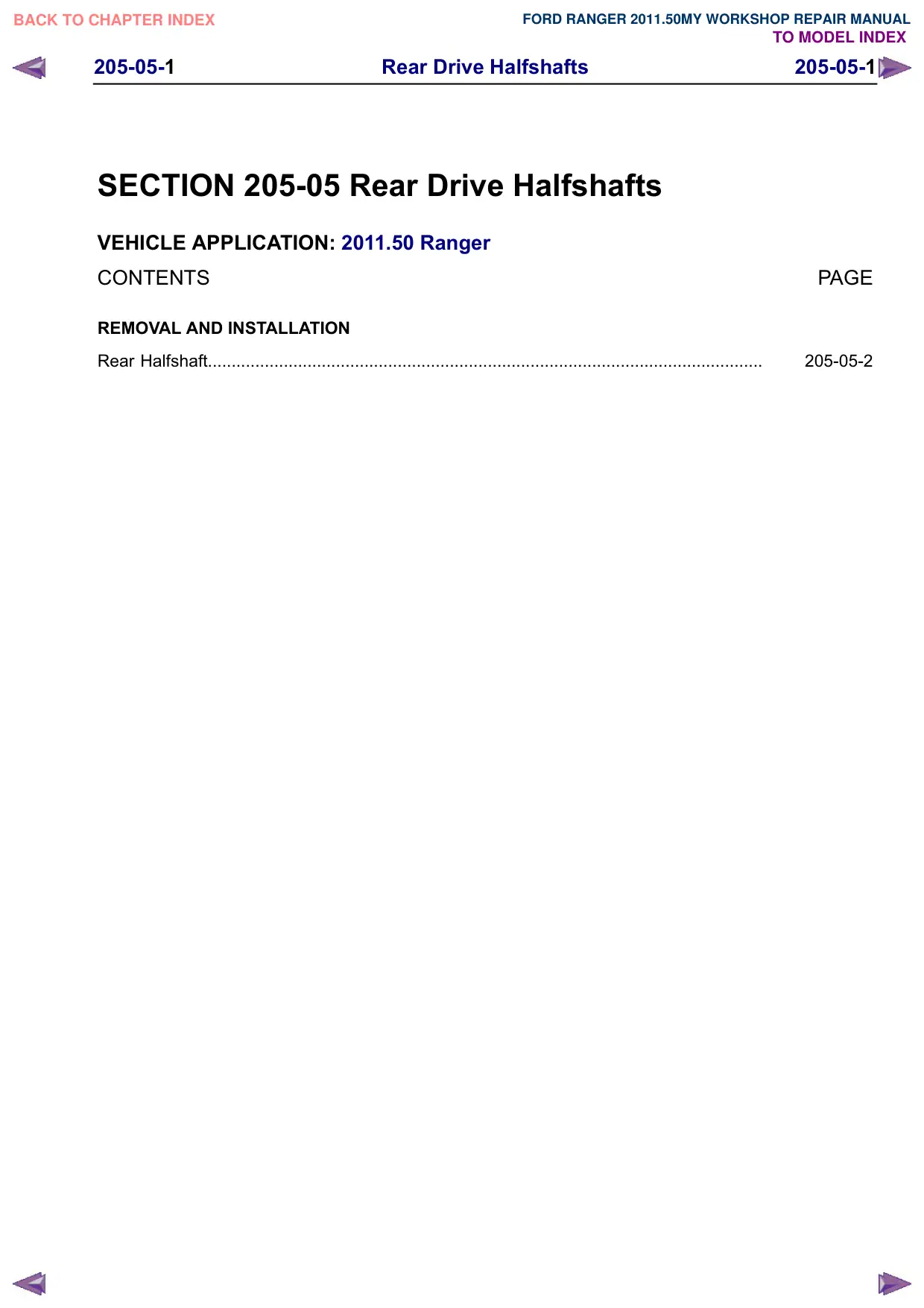

Rear Drive Halfshafts 205-05-1 205-05-1 . SECTION 205-05 Rear Drive Halfshafts VEHICLE APPLICATION: 2011.50 Ranger CONTENTS REMOVAL AND INSTALLATION Rear Halfshaft..................................................................................................................... PAGE 205-05-2

Página 158 · Semieixo traseiro

Rear Halfshaft

https://ranger.mbrace.com.br/oficina/158 · imagem: https://ranger.mbrace.com.br/img/oficina/158.webp

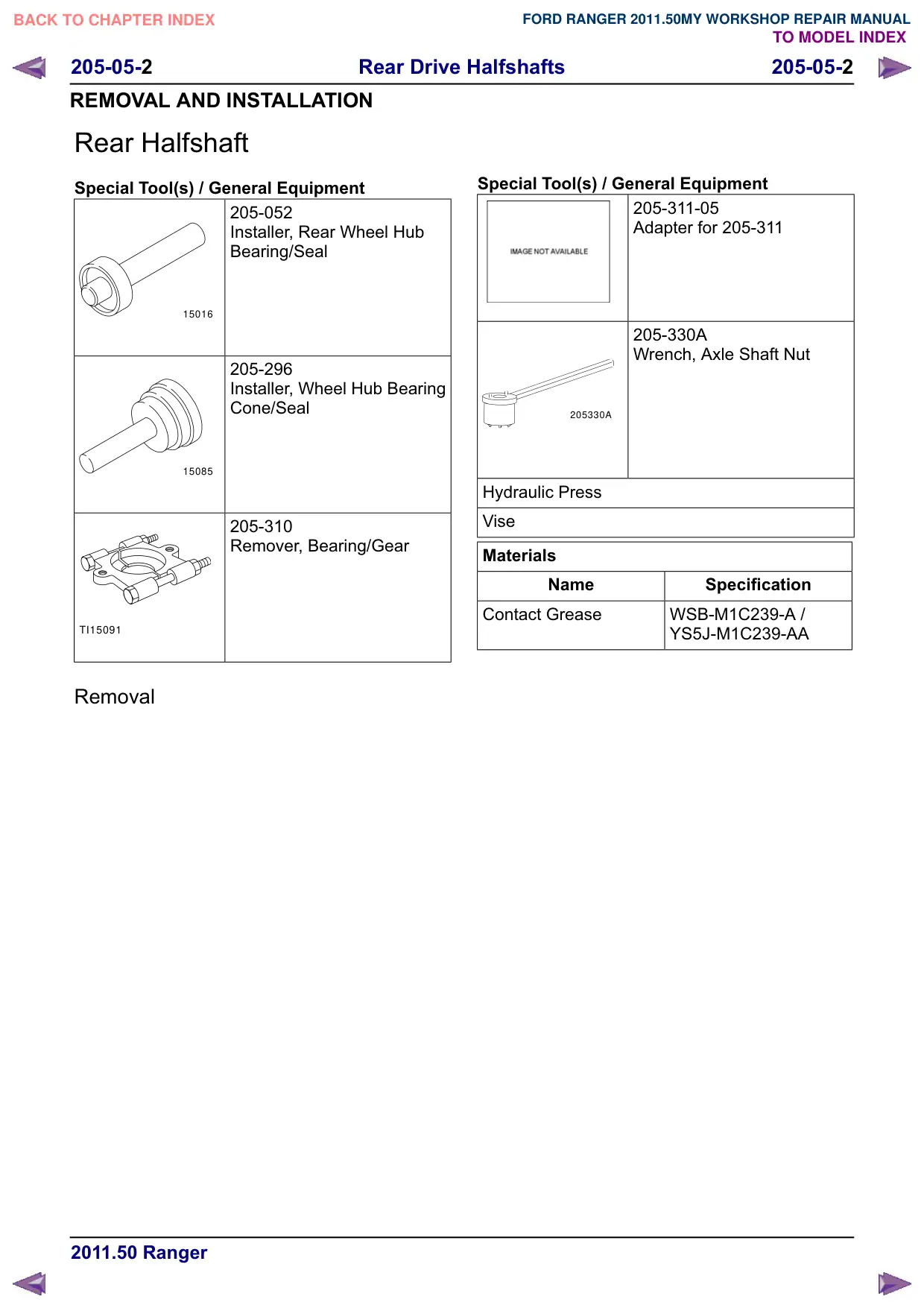

Rear Drive Halfshafts 205-05-2 205-05-2 REMOVAL AND INSTALLATION Rear Halfshaft Special Tool(s) / General Equipment 205-052 Installer, Rear Wheel Hub Bearing/Seal 15016 205-296 Installer, Wheel Hub Bearing Cone/Seal 15085 205-310 Remover, Bearing/Gear TI15091 Removal Special Tool(s) / General Equipment 205-311-05 Adapter for 205-311 205-330A Wrench, Axle Shaft Nut 205330A Hydraulic Press Vise Materials Name Specification Contact Grease WSB-M1C239-A / YS5J-M1C239-AA

Página 159 · Semieixo traseiro

Rear Halfshaft

https://ranger.mbrace.com.br/oficina/159 · imagem: https://ranger.mbrace.com.br/img/oficina/159.webp

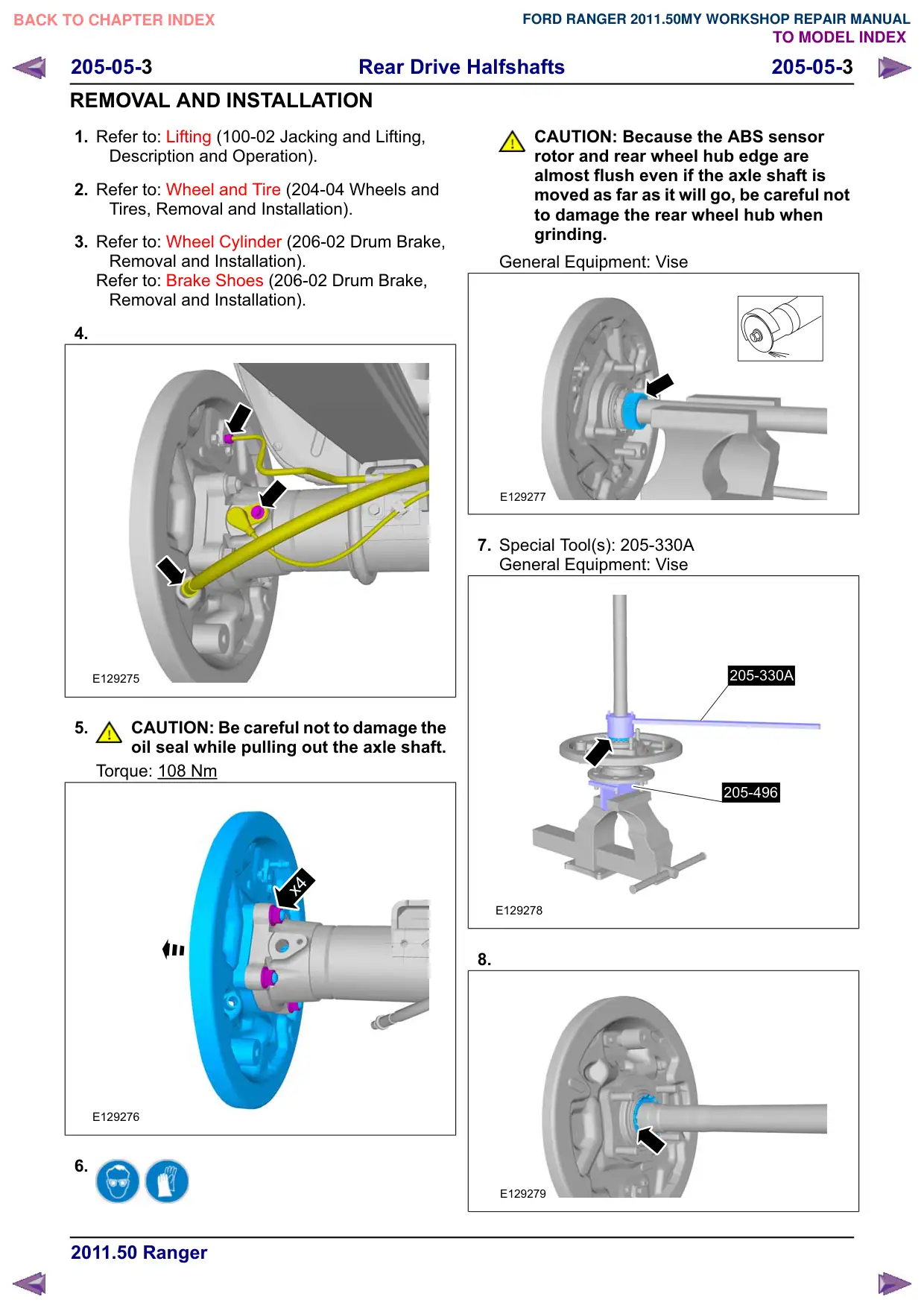

Rear Drive Halfshafts 205-05-3 205-05-3 REMOVAL AND INSTALLATION 1. Refer to: Lifting (100-02 Jacking and Lifting, Description and Operation). 2. Refer to: Wheel and Tire (204-04 Wheels and Tires, Removal and Installation). 3. Refer to: Wheel Cylinder (206-02 Drum Brake, Removal and Installation). Refer to: Brake Shoes (206-02 Drum Brake, Removal and Installation). 4. E129275 5. CAUTION: Be careful not to damage the oil seal while pulling out the axle shaft. Torque: 108 Nm x4 E129276 6. CAUTION: Because the ABS sensor rotor and rear wheel hub edge are almost flush even if the axle shaft is moved as far as it will go, be careful not to damage the rear wheel hub when grinding. General Equipment: Vise E129277 7. Special Tool(s): 205-330A General Equipment: Vise 205-330A 205-496 E129278 8. E129279

Página 160 · Semieixo traseiro

Rear Halfshaft

https://ranger.mbrace.com.br/oficina/160 · imagem: https://ranger.mbrace.com.br/img/oficina/160.webp

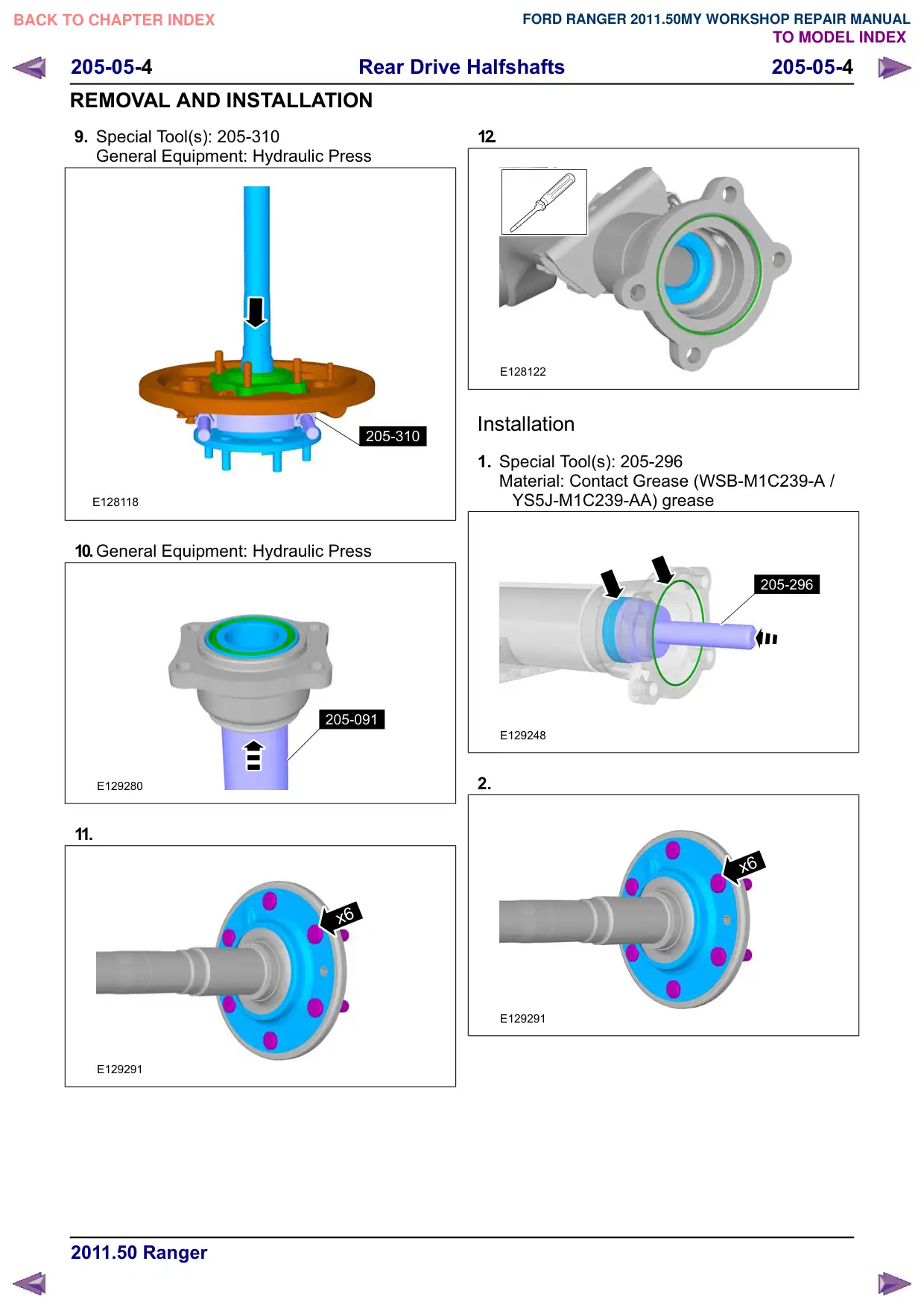

Rear Drive Halfshafts 205-05-4 205-05-4 REMOVAL AND INSTALLATION 9. Special Tool(s): 205-310 General Equipment: Hydraulic Press 205-310 E128118 10.General Equipment: Hydraulic Press 205-091 E129280 11. x6 E129291 12. E128122 Installation 1. Special Tool(s): 205-296 Material: Contact Grease (WSB-M1C239-A / YS5J-M1C239-AA) grease 205-296 E129248 2. x6 E129291

Página 161 · Semieixo traseiro

Rear Halfshaft

https://ranger.mbrace.com.br/oficina/161 · imagem: https://ranger.mbrace.com.br/img/oficina/161.webp

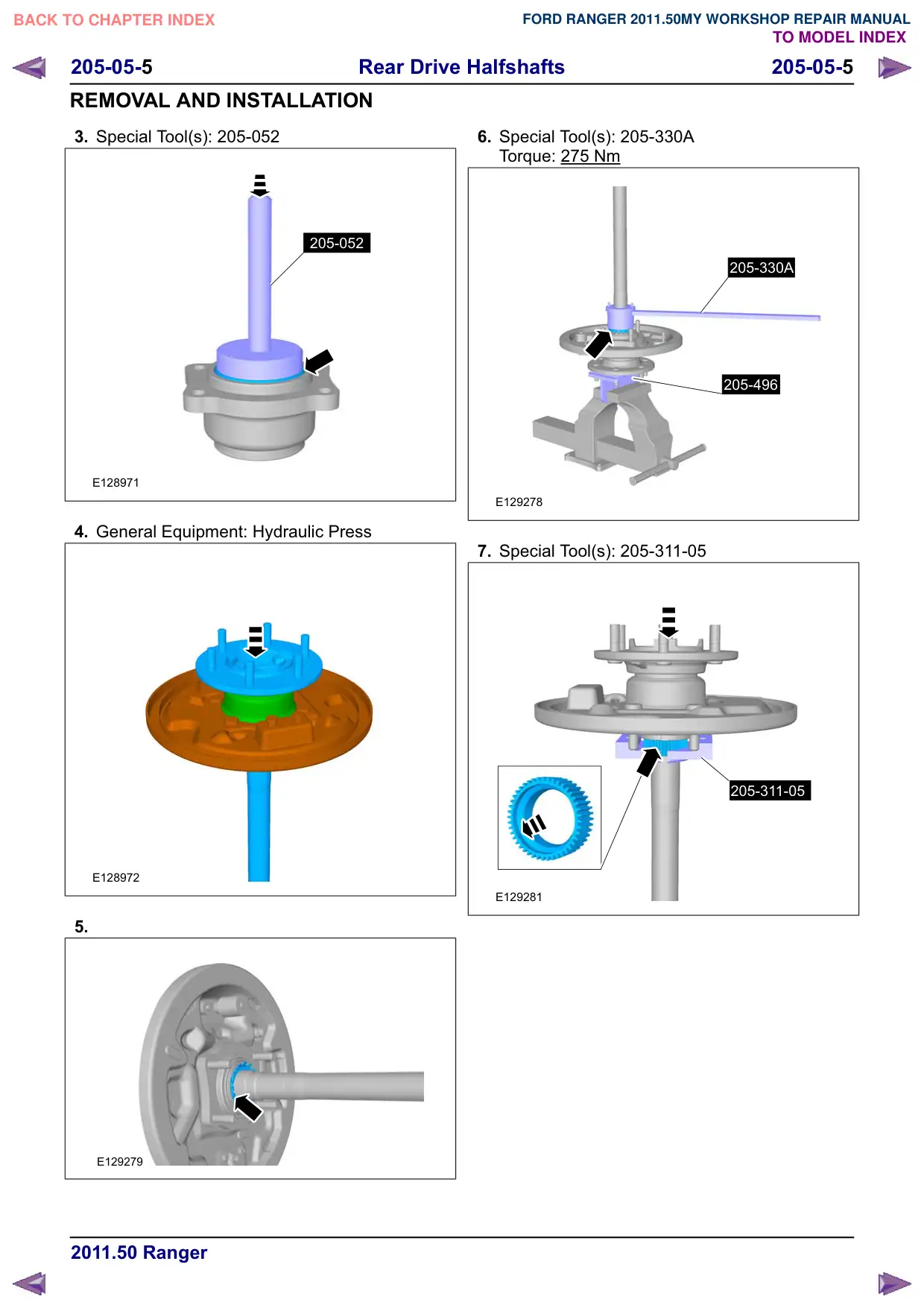

Rear Drive Halfshafts 205-05-5 205-05-5 REMOVAL AND INSTALLATION 3. Special Tool(s): 205-052 205-052 E128971 4. General Equipment: Hydraulic Press E128972 5. E129279 6. Special Tool(s): 205-330A Torque: 275 Nm 205-330A 205-496 E129278 7. Special Tool(s): 205-311-05 205-311-05 E129281

Página 162 · Semieixo traseiro

Rear Halfshaft

https://ranger.mbrace.com.br/oficina/162 · imagem: https://ranger.mbrace.com.br/img/oficina/162.webp

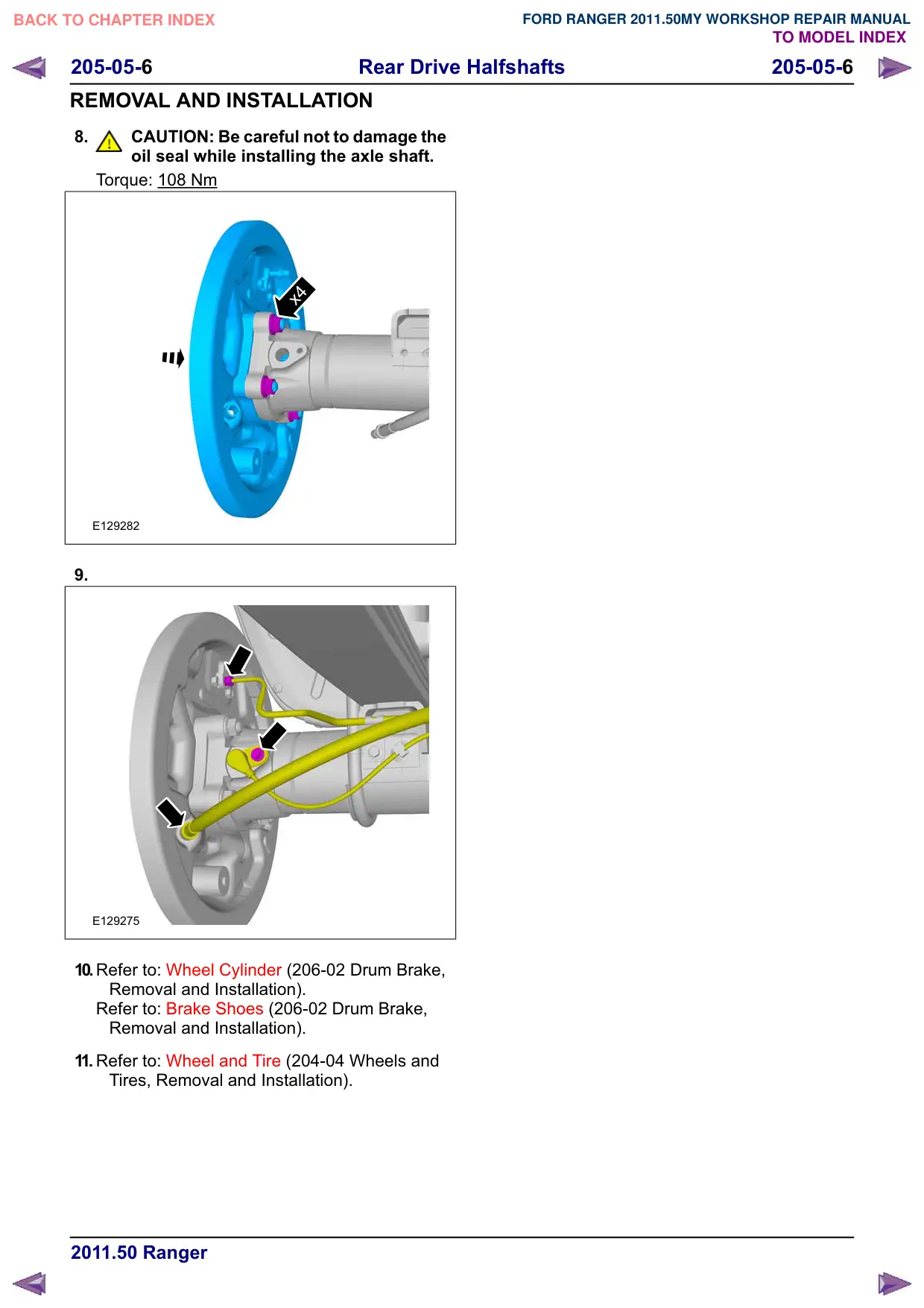

Rear Drive Halfshafts 205-05-6 205-05-6 REMOVAL AND INSTALLATION 8. CAUTION: Be careful not to damage the oil seal while installing the axle shaft. Torque: 108 Nm x4 E129282 9. E129275 10.Refer to: Wheel Cylinder (206-02 Drum Brake, Removal and Installation). Refer to: Brake Shoes (206-02 Drum Brake, Removal and Installation). 11. Refer to: Wheel and Tire (204-04 Wheels and Tires, Removal and Installation).
