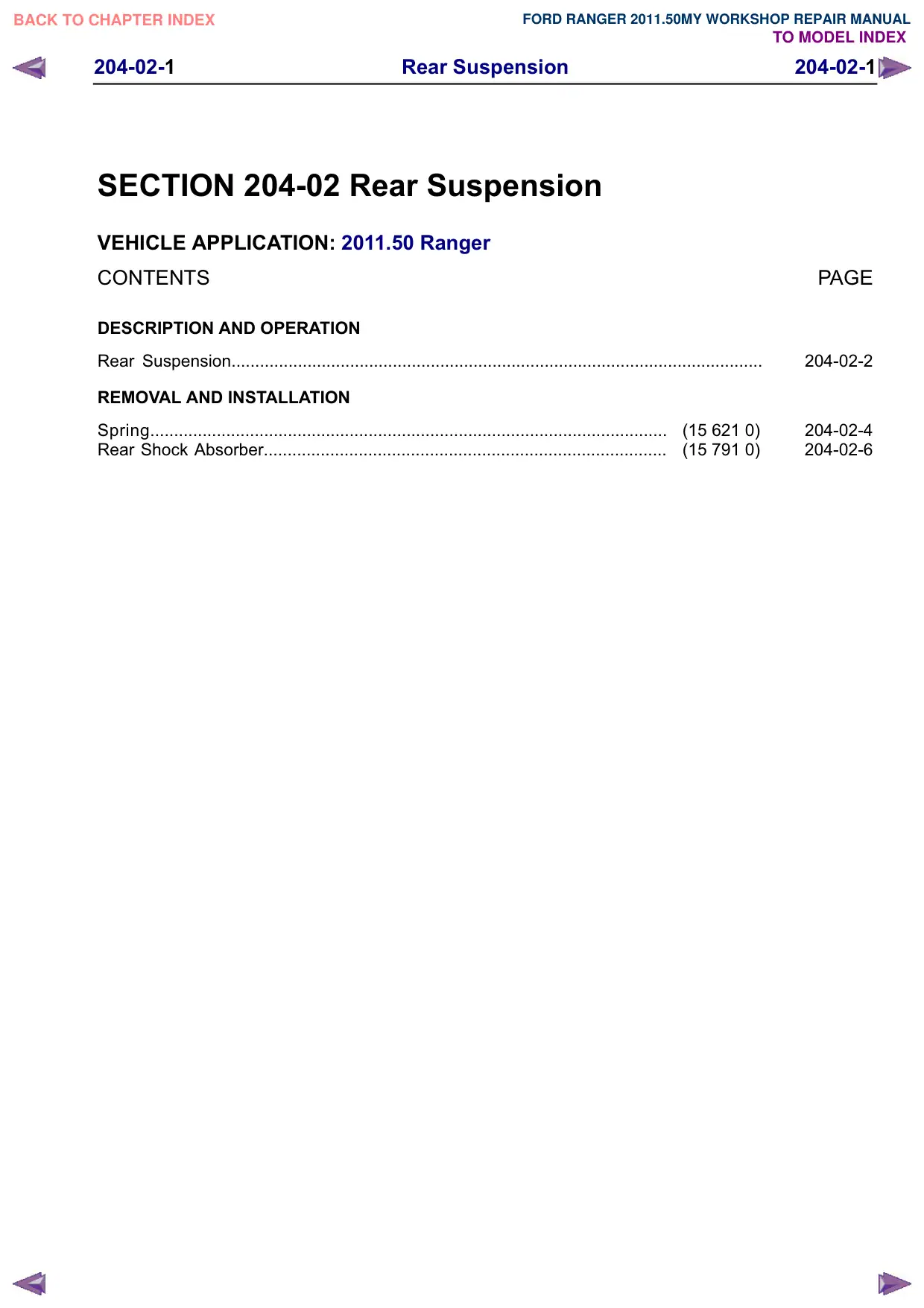

Rear Suspension 204-02-1 204-02-1 . SECTION 204-02 Rear Suspension VEHICLE APPLICATION: 2011.50 Ranger CONTENTS DESCRIPTION AND OPERATION Rear Suspension................................................................................................................ REMOVAL AND INSTALLATION Spring............................................................................................................. Rear Shock Absorber..................................................................................... PAGE 204-02-2 (15 621 0) 204-02-4 (15 791 0) 204-02-6

Rear Suspension 204-02-2 204-02-2 DESCRIPTION AND OPERATION Rear Suspension 4x2 1 2 E125481 Item Description 1 Shock absorber 2 Leaf Spring 3 Shackle Assembly 3

Rear Suspension 204-02-3 204-02-3 DESCRIPTION AND OPERATION Hi-Rider and 4x4 1 2 E125521 Item Description 1 Shock absorber 2 Leaf Spring 3 Shackle Assembly 3

Rear Suspension 204-02-4 204-02-4 REMOVAL AND INSTALLATION Spring(15 621 0) Removal CAUTION: Suspension fasteners are critical parts because they affect performance of vital components and systems and their failure can result in major service expense. A new part with the same part number or an equivalent part must be installed, if installation is necessary. Do not use a part of lesser quality or substitute design. Torque values must be used as specified during reassembly to make sure of correct retention of these parts. NOTE: Removal steps in this procedure may contain installation details. 1. Refer to: Lifting (100-02 Jacking and Lifting, Description and Operation). 4x2 2. Torque: 120 Nm x2 x4 E126021 4x4 3. Torque: 120 Nm x4 x2 E132536 All vehicles 4. Torque: 162 Nm E126023

Rear Suspension 204-02-5 204-02-5 REMOVAL AND INSTALLATION 5. NOTE: Note the position of the bracket. Torque: 103 Nm x2 E126022 Installation CAUTION: Install new spring locknuts and U-bolt nuts. NOTE: Final tightening of the rear suspension components should be carried out when the vehicle weight is on the road wheels. 1. To install, reverse the removal procedure.

Rear Suspension 204-02-6 204-02-6 REMOVAL AND INSTALLATION Rear Shock Absorber(15 791 0) Removal CAUTION: Suspension fasteners are critical parts because they affect performance of vital components and systems and their failure can result in major service expense. A new part with the same part number or an equivalent part must be installed, if installation is necessary. Do not use a part of lesser quality or substitute design. Torque values must be used as specified during reassembly to make sure of correct retention of these parts. NOTE: Removal steps in this procedure may contain installation details. 1. Torque: ‡ 1. Torque: 47 Nm ‡ 2. Torque: 47 Nm 2 1 E125999 Installation 1. NOTE: Do not fully tighten the shock absorber lower mounting bolt. The final tightening should be carried out when the vehicle weight is on the road wheels. 2. To install, reverse the removal procedure.
