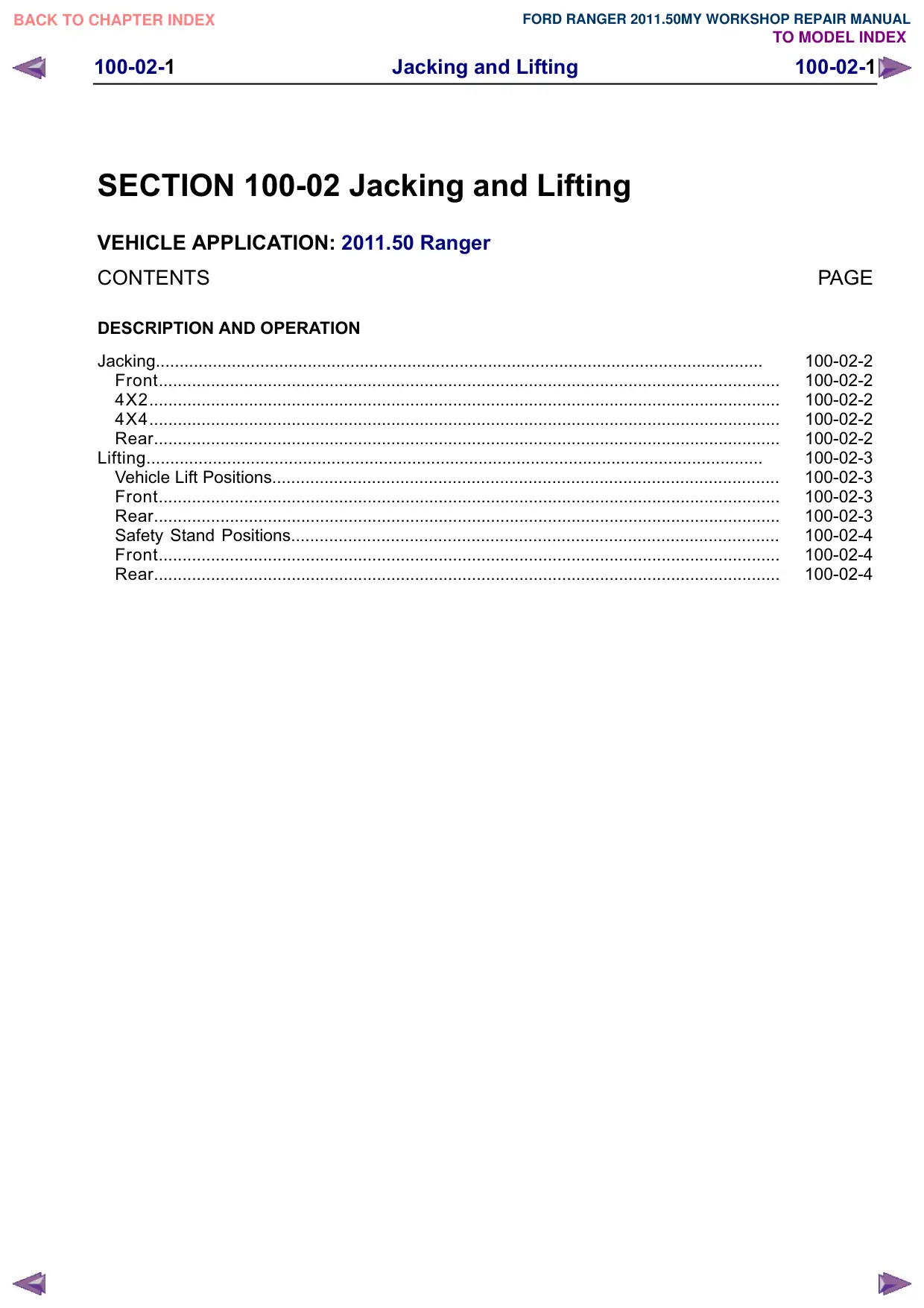

Jacking and Lifting 100-02-1 100-02-1 . SECTION 100-02 Jacking and Lifting VEHICLE APPLICATION: 2011.50 Ranger CONTENTS DESCRIPTION AND OPERATION Jacking................................................................................................................................ Front................................................................................................................................... 4X2..................................................................................................................................... 4X4..................................................................................................................................... Rear.................................................................................................................................... Lifting.................................................................................................................................. Vehicle Lift Positions........................................................................................................... Front................................................................................................................................... Rear.................................................................................................................................... Safety Stand Positions....................................................................................................... Front................................................................................................................................... Rear.................................................................................................................................... PAGE 100-02-2 100-02-2 100-02-2 100-02-2 100-02-2 100-02-3 100-02-3 100-02-3 100-02-3 100-02-4 100-02-4 100-02-4

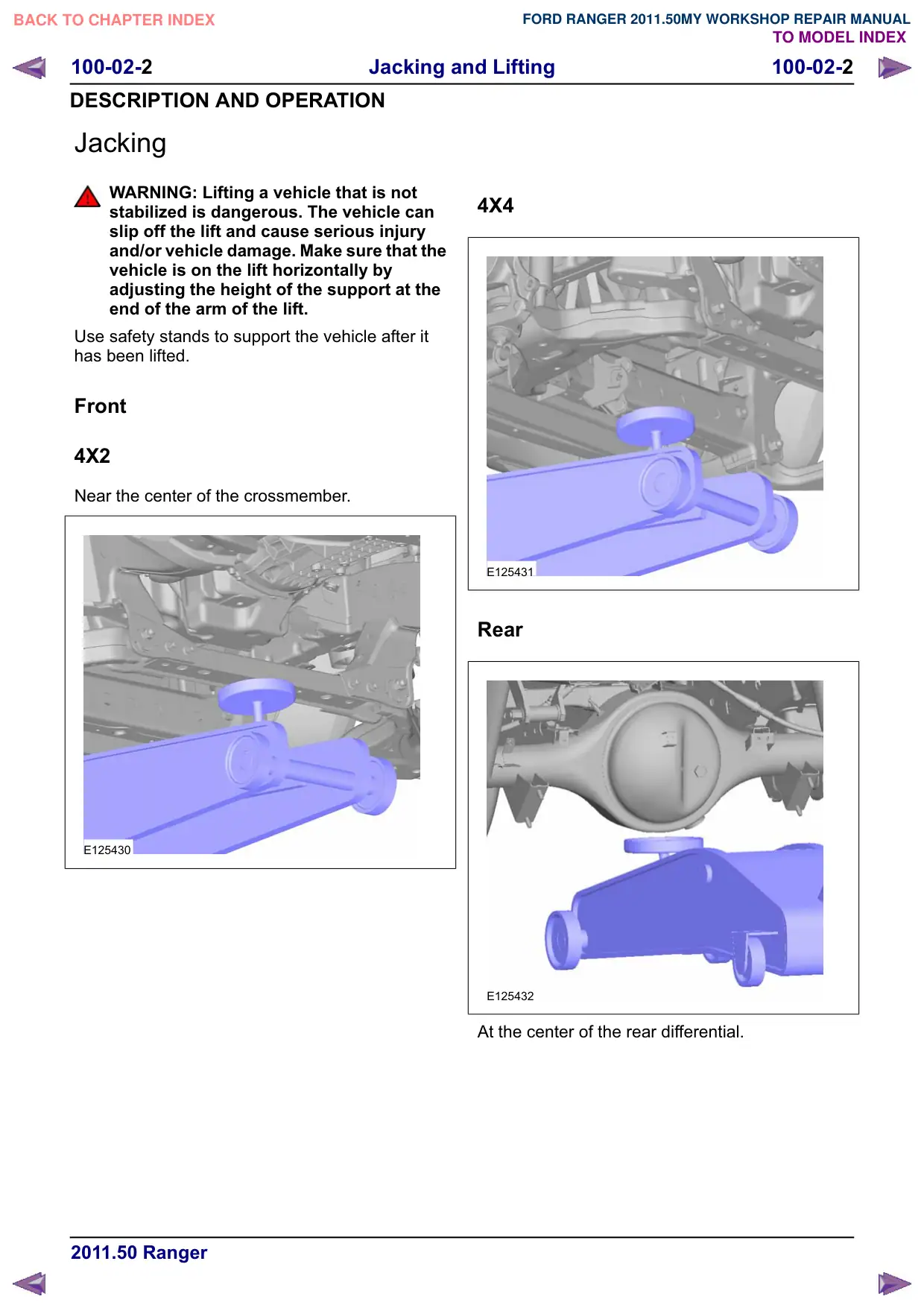

Jacking and Lifting 100-02-2 100-02-2 DESCRIPTION AND OPERATION Jacking WARNING: Lifting a vehicle that is not stabilized is dangerous. The vehicle can slip off the lift and cause serious injury and/or vehicle damage. Make sure that the vehicle is on the lift horizontally by adjusting the height of the support at the end of the arm of the lift. Use safety stands to support the vehicle after it has been lifted. Front 4X2 Near the center of the crossmember. E125430 4X4 E125431 Rear E125432 At the center of the rear differential.

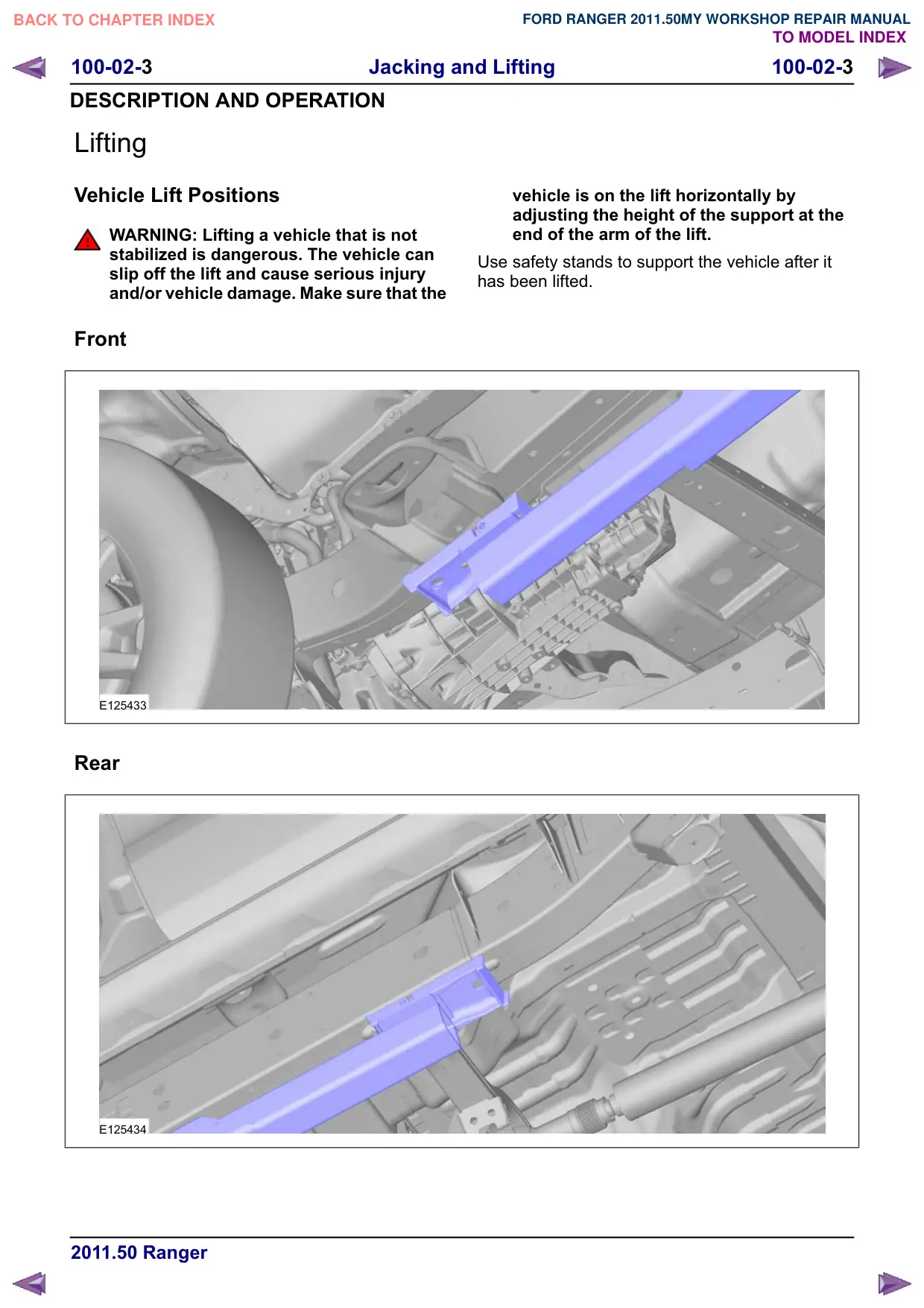

Jacking and Lifting 100-02-3 100-02-3 DESCRIPTION AND OPERATION Lifting Vehicle Lift Positions WARNING: Lifting a vehicle that is not stabilized is dangerous. The vehicle can slip off the lift and cause serious injury and/or vehicle damage. Make sure that the Front E125433 Rear E125434 vehicle is on the lift horizontally by adjusting the height of the support at the end of the arm of the lift. Use safety stands to support the vehicle after it has been lifted.

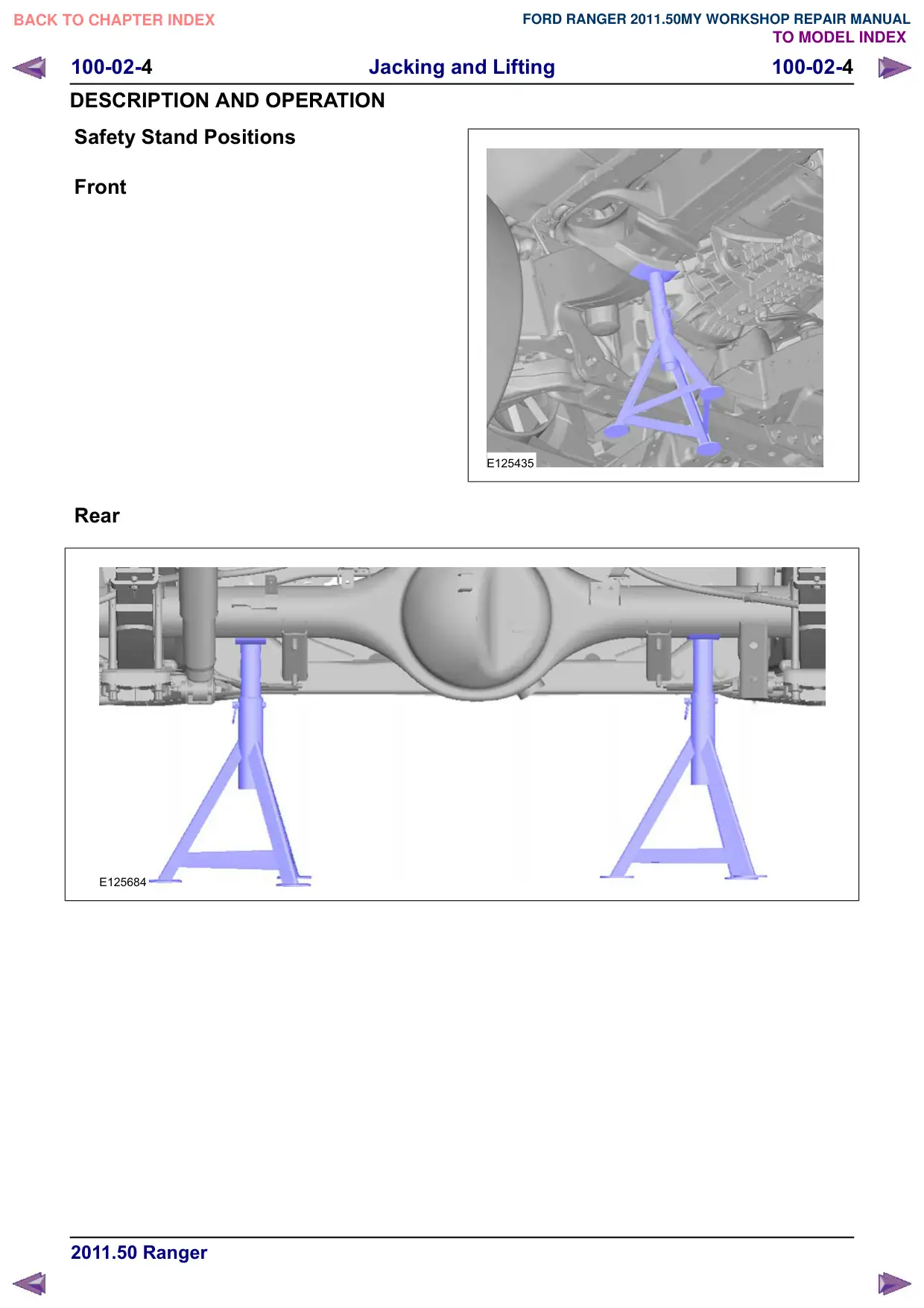

Jacking and Lifting 100-02-4 100-02-4 DESCRIPTION AND OPERATION Safety Stand Positions Front Rear E125684 E125435
