501-28 Funilaria do teto

501-28-1 Roof Sheet Metal Repairs 501-28-1 . SECTION 501-28 Roof Sheet Metal Repairs VEHICLE APPLICATION: 2011.50 Ranger CONTENTS REMOVAL AND INSTALLATION Roof Panel – Single Cab................................................................................................... Roof Panel – Double Cab................................................................................................. Roof Panel – Stretch Cab................................................................................................. PAGE 501-28-2 501-28-7 501-28-8

501-28-2 Roof Sheet Metal Repairs 501-28-2 REMOVAL AND INSTALLATION Roof Panel – Single Cab General Equipment Hot Air Gun Spot weld drill Bit Removal 1. ‡ Front and Rear Door ‡ Refer to: Windshield Glass (501-11 Glass, Frames and Mechanisms, Removal and Installation). ‡ Refer to: Headliner - 4-Door (501-05 Interior Trim and Ornamentation, Removal and Installation). ‡ A- B- and C-Pillar Trim Refer to: A-Pillar Trim Panel (501-05, Removal and Installation). Refer to: B-Pillar Trim Panel (501-05, Removal and Installation). Refer to: C-Pillar Trim Panel - 4-Door (501-05, Removal and Installation). ‡ Refer to: Rear Window Glass (501-11 Glass, Frames and Mechanisms, Removal and Installation). 2. ‡ General Equipment: Spot weld drill Bit E112723 Materials Name Specification Windshield Adhesive Kit WSS-M11P57-A5

501-28-3 Roof Sheet Metal Repairs 501-28-3 REMOVAL AND INSTALLATION 3. ‡ General Equipment: Spot weld drill Bit E112724 4. ‡ General Equipment: Hot Air Gun 170 E112725

501-28-4 Roof Sheet Metal Repairs 501-28-4 REMOVAL AND INSTALLATION Installation 1. NOTE: Before resistance spot welding of body panels with a total panel thickness of 3 mm and greater, the manufacturer's welding equipment instructions and sub-section 501-25 must be followed. Authoring Template Refer to: Tools and Equipment for Body Repairs (501-25 Body Repairs - General Information, Description and Operation). E112726 4. ‡ Resistance spot weld - Panel thickness 3 mm and greater! 2. NOTE: Sealer or adhesive must be applied with a minimum height of 20 mm. Refer to: Sealer, Underbody Protection Material and Adhesives (501-25 Body Repairs - General Information, Description and Operation). 3. ‡ Material: Windshield Adhesive Kit (WSS-M11P57-A5) adhesive

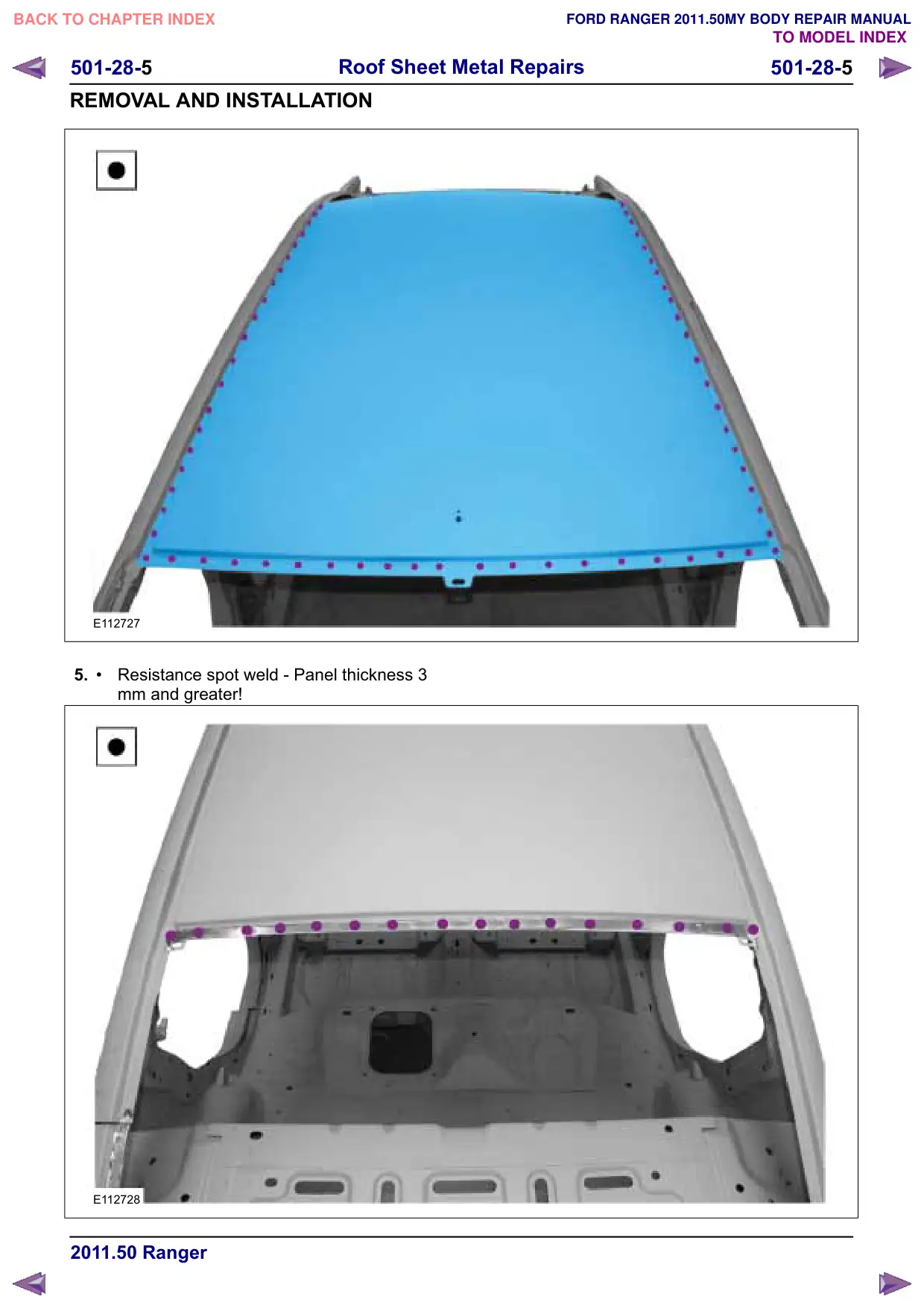

501-28-5 Roof Sheet Metal Repairs 501-28-5 REMOVAL AND INSTALLATION E112727 5. ‡ Resistance spot weld - Panel thickness 3 mm and greater! E112728

501-28-6 Roof Sheet Metal Repairs 501-28-6 REMOVAL AND INSTALLATION 6. ‡ Front and Rear Door ‡ Refer to: Windshield Glass (501-11 Glass, Frames and Mechanisms, Removal and Installation). ‡ Refer to: Headliner - 4-Door (501-05 Interior Trim and Ornamentation, Removal and Installation). ‡ A- B- and C-Pillar Trim Refer to: A-Pillar Trim Panel (501-05, Removal and Installation). Refer to: B-Pillar Trim Panel (501-05, Removal and Installation). Refer to: C-Pillar Trim Panel - 4-Door (501-05, Removal and Installation). ‡ Refer to: Rear Window Glass (501-11 Glass, Frames and Mechanisms, Removal and Installation).

501-28-7 Roof Sheet Metal Repairs 501-28-7 REMOVAL AND INSTALLATION Roof Panel – Double Cab 1. Information not available at this time.

501-28-8 Roof Sheet Metal Repairs 501-28-8 REMOVAL AND INSTALLATION Roof Panel – Stretch Cab 2. Information not available at this time.
