501-00 Carroceria – informações gerais

501-00-1 Body System - General Information 501-00-1 . SECTION 501-00 Body System - General Information VEHICLE APPLICATION: 2011.50 Ranger CONTENTS DESCRIPTION AND OPERATION Body (Overview)................................................................................................................. General............................................................................................................................... A- and B-pillar reinforcement ............................................................................................. Bumpers and radiator grille................................................................................................ Trailer towbar...................................................................................................................... PAGE 501-00-2 501-00-2 501-00-2 501-00-3 501-00-4

501-00-2 Body System - General Information 501-00-2 DESCRIPTION AND OPERATION Body œ Overview General At introduction the following vehicle variants are available: ‡ 2.5L petrol 4x2 low rider, 4x2 high rider, 4x4 with manual transmission ‡ 2.2L diesel 88kW & 92kW 4x2 low rider, 4x2 high rider, 4x4 with manual transmission ‡ 2.2L diesel 110kW 4x2 low rider, 4x2 high rider drive ratio 3.31, 4x2 high rider drive ratio 3.55 with manual transmission Single cab E140247 Double cab E140245 ‡ 2.2L diesel 110kW 4x2 high rider with auto transmission ‡ 2.2L diesel 110kW 4x4 manual and auto transmission ‡ 3.2L diesel 4x2 high rider and 4x4 drive ratio 3.31, 4x2 high rider and 4x4 drive ratio 3.55 with manual transmission A- and B-pillar reinforcement

501-00-3 Body System - General Information 501-00-3 DESCRIPTION AND OPERATION Super cab E140246 The A- and B-pillar reinforcement is made of the highest strength boron steel. These sheet metal parts can only be replaced as a complete unit during repairs and that section repairs are not possible. Special installation and removal requirements must be observed during repairs. Special tools are also required. Relevant instructions are available in the current service literature. Bumpers and radiator grille 1 2 3 4 5 6 E140248 Item Description 1 Radiator grille 2 Front fog lights 3 Front bumper and cover

501-00-4 Body System - General Information 501-00-4 DESCRIPTION AND OPERATION Item Description 4 Rear bumper 5 Rear fog lamp 6 Rear bumper cover The bumpers are painted in the body color as standard for all vehicle variants. The bumper cover is only available in grey. 2 E140266 Item Description 1 Module, trailer towbar 2 Trailer towbar At introduction, a removable towbar is made available for the vehicle. Trailer towbar 1 E140249 4 3 Item Description 3 Shackles 4 Tow ball arm If the vehicle is delivered from the factory with a towbar, then this is equipped with a 13-pin socket.

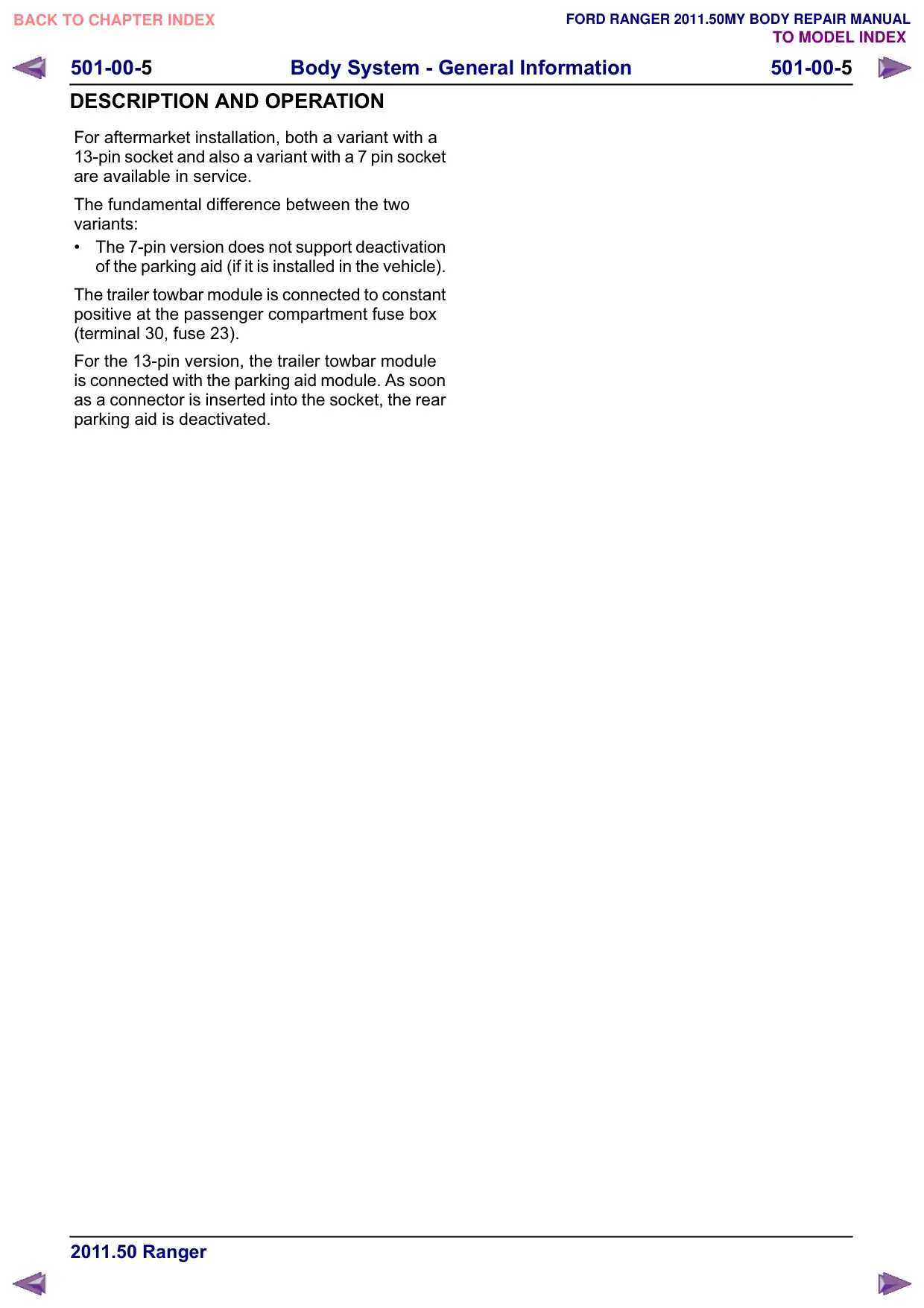

501-00-5 Body System - General Information 501-00-5 DESCRIPTION AND OPERATION For aftermarket installation, both a variant with a 13-pin socket and also a variant with a 7 pin socket are available in service. The fundamental difference between the two variants: ‡ The 7-pin version does not support deactivation of the parking aid (if it is installed in the vehicle). The trailer towbar module is connected to constant positive at the passenger compartment fuse box (terminal 30, fuse 23). For the 13-pin version, the trailer towbar module is connected with the parking aid module. As soon as a connector is inserted into the socket, the rear parking aid is deactivated.
