415-01 Som e entretenimento

415-01-5 Information and Entertainment System 415-01-5 REMOVAL AND INSTALLATION Bluetooth Module(33 635 0) Removal NOTE: Removal steps in this procedure may contain installation details. 1. Refer to: Glove Compartment (501-12 Instrument Panel and Console, Removal and Installation). 2. Torque: 2 Nm E130422 Installation 1. To install, reverse the removal procedure.

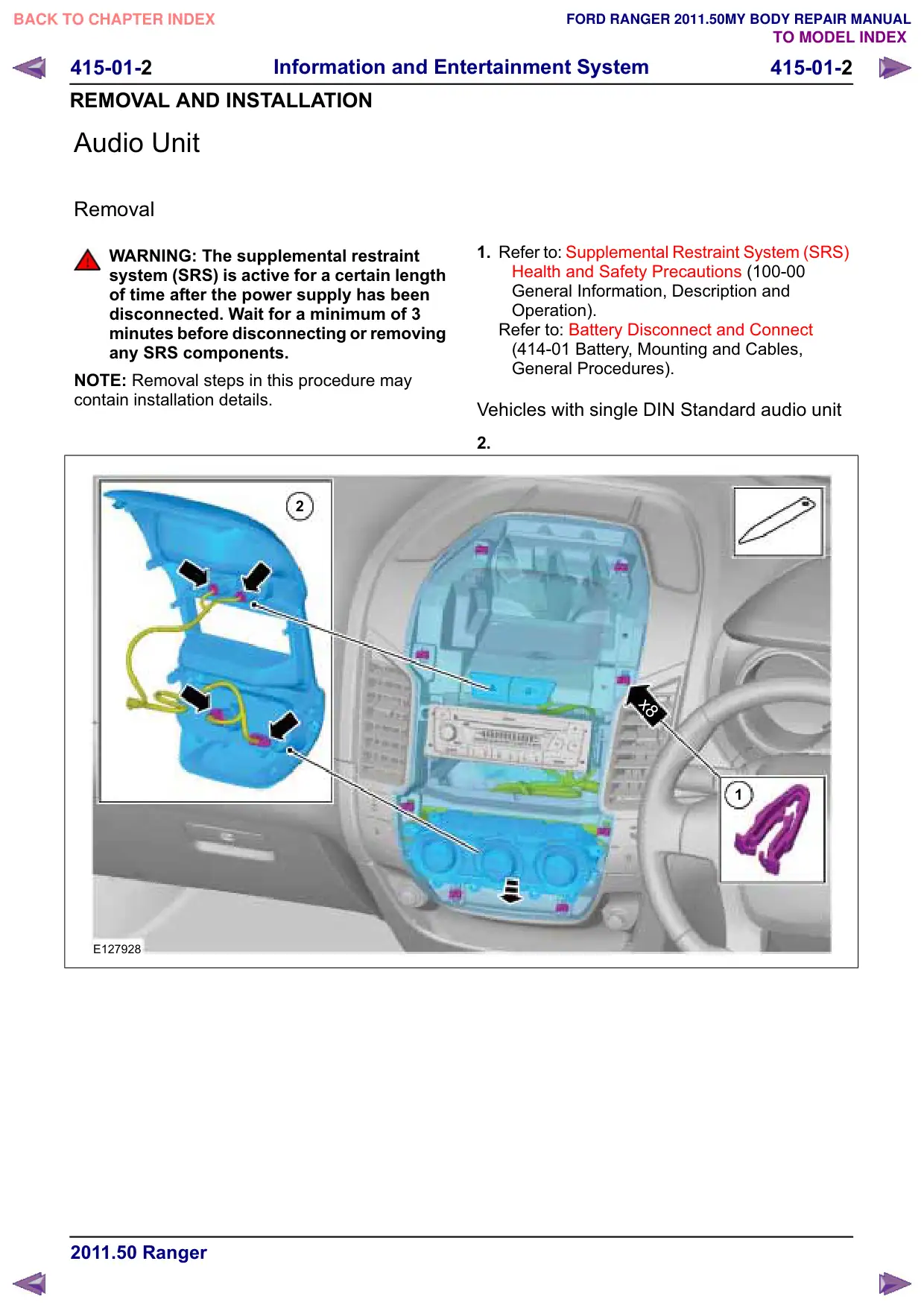

415-01-2 Information and Entertainment System 415-01-2 REMOVAL AND INSTALLATION Audio Unit Removal WARNING: The supplemental restraint system (SRS) is active for a certain length of time after the power supply has been disconnected. Wait for a minimum of 3 minutes before disconnecting or removing any SRS components. NOTE: Removal steps in this procedure may contain installation details. 2 E127928 1. Refer to: Supplemental Restraint System (SRS) Health and Safety Precautions (100-00 General Information, Description and Operation). Refer to: Battery Disconnect and Connect (414-01 Battery, Mounting and Cables, General Procedures). Vehicles with single DIN Standard audio unit 2. x8 1

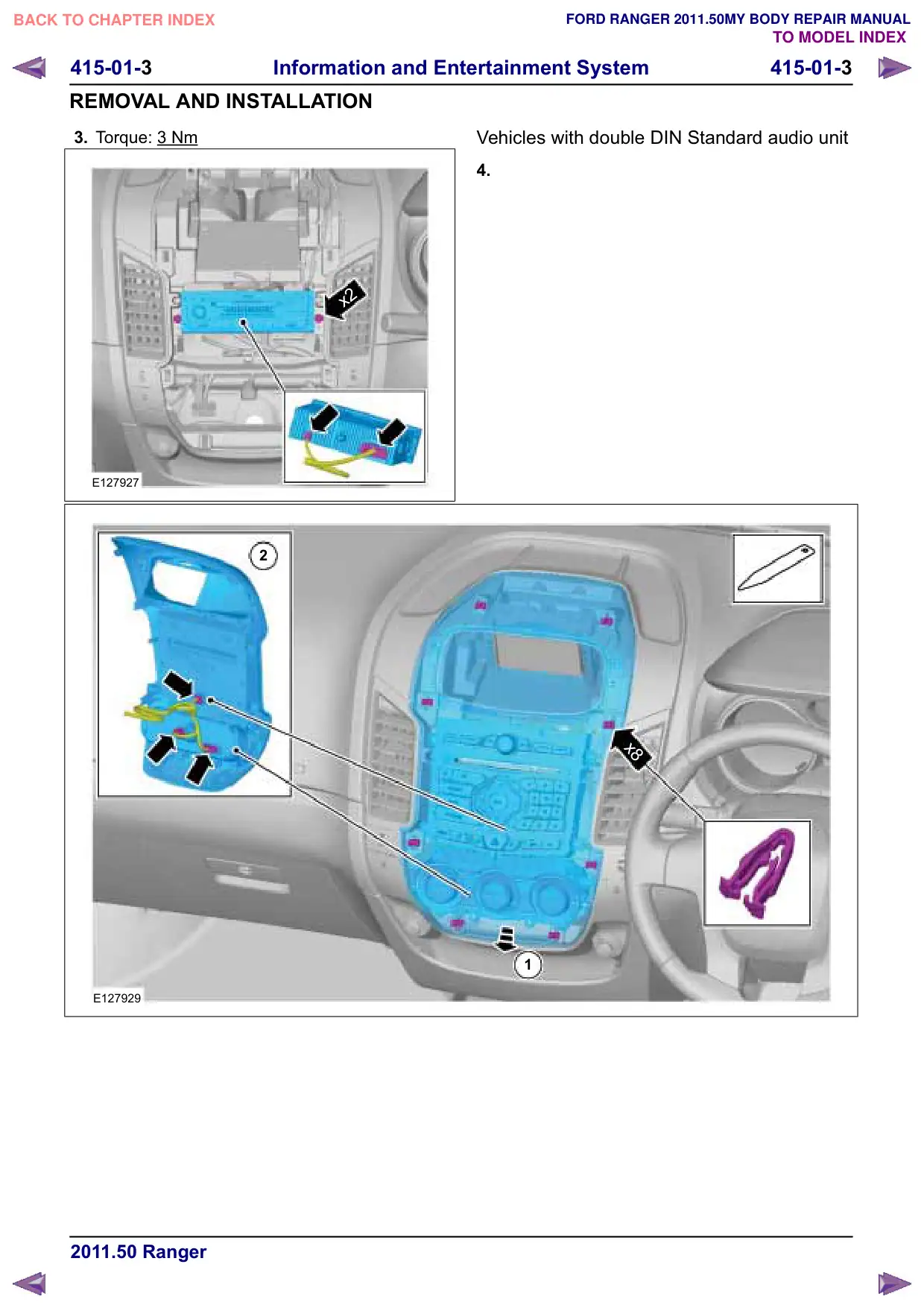

415-01-3 Information and Entertainment System 415-01-3 REMOVAL AND INSTALLATION 3. Torque: 3 Nm x2 E127927 2 E127929 Vehicles with double DIN Standard audio unit 4. x8 1

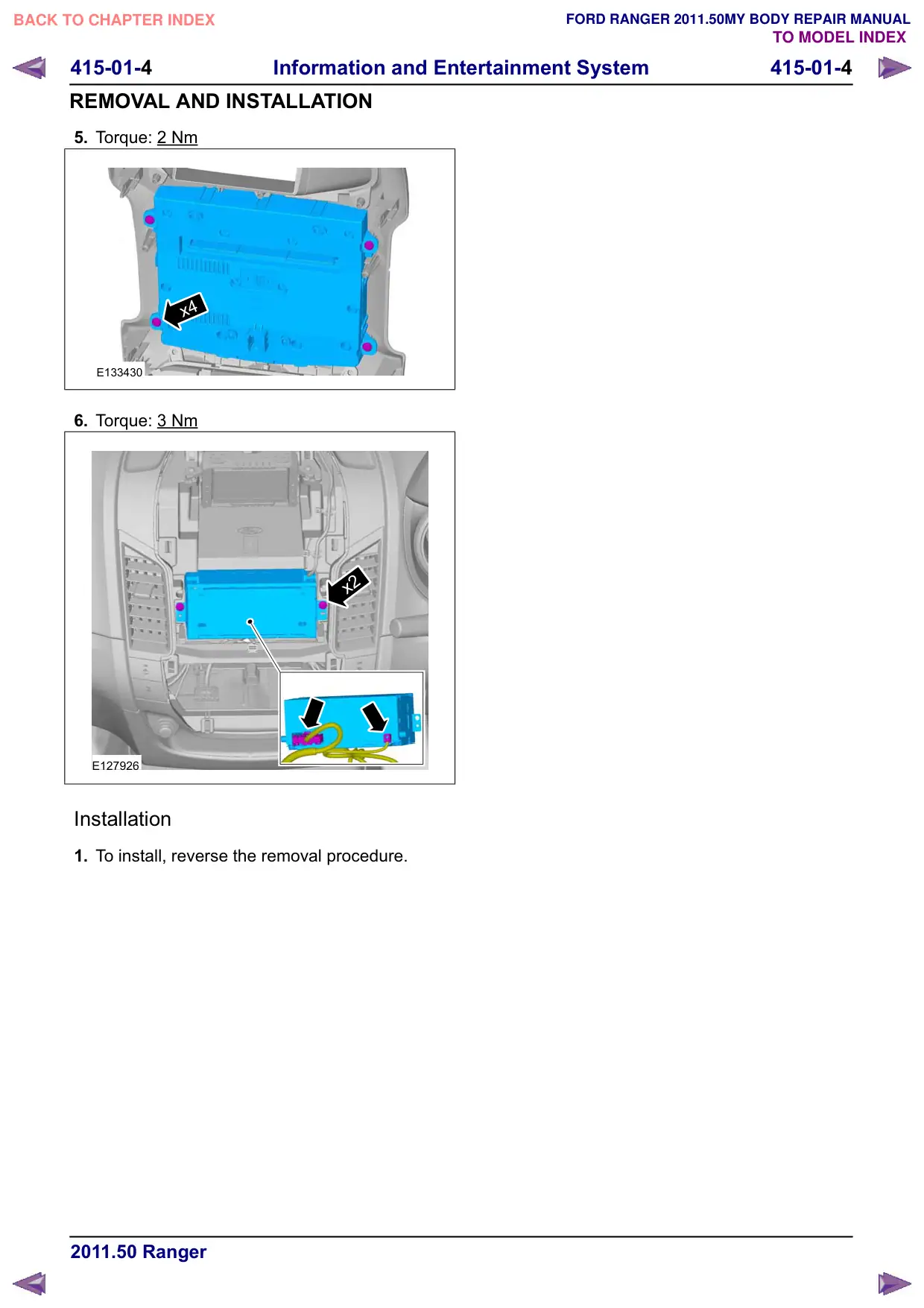

415-01-4 Information and Entertainment System 415-01-4 REMOVAL AND INSTALLATION 5. Torque: 2 Nm x4 E133430 6. Torque: 3 Nm x2 E127926 Installation 1. To install, reverse the removal procedure.

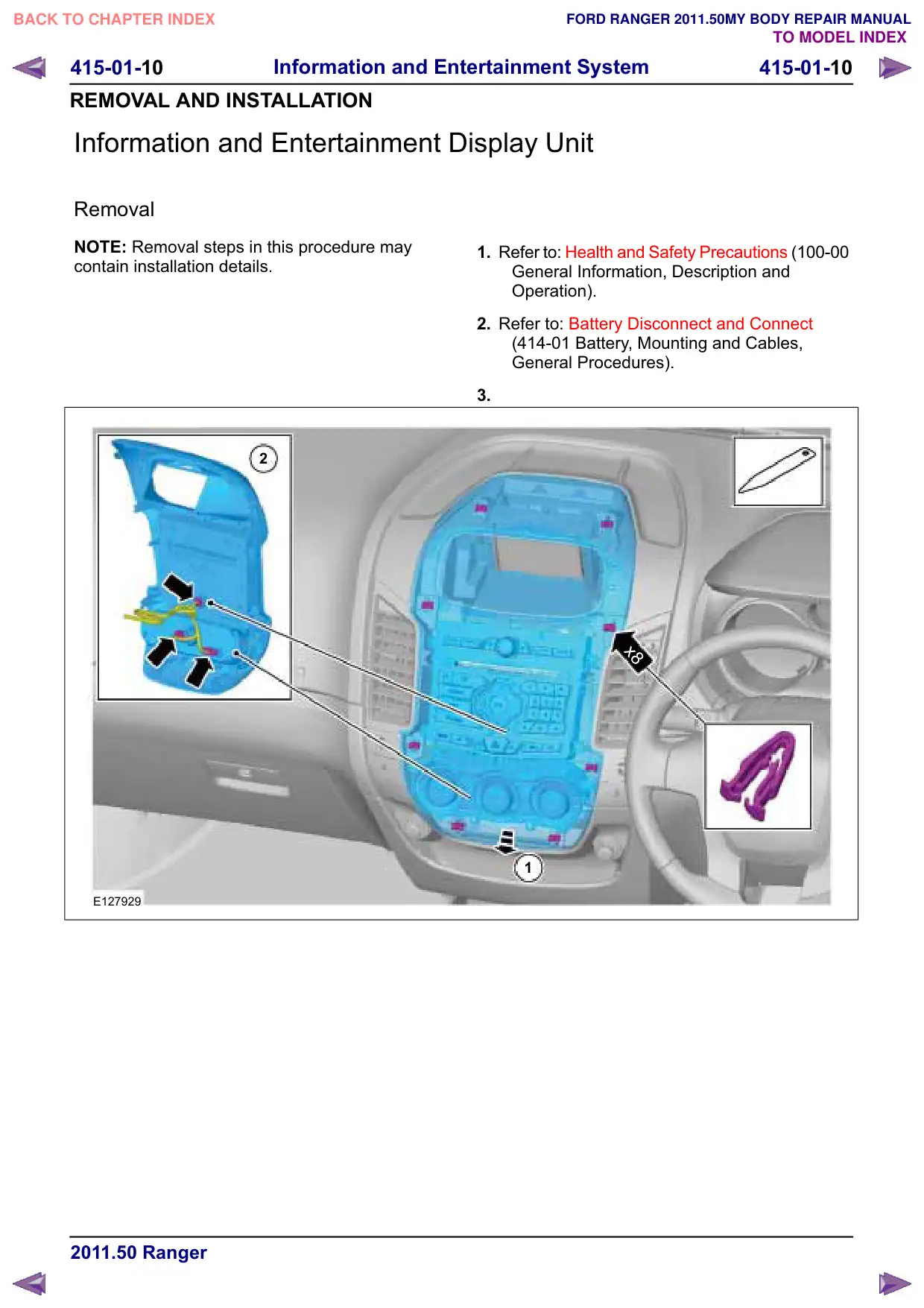

415-01-10 Information and Entertainment System 415-01-10 REMOVAL AND INSTALLATION Information and Entertainment Display Unit Removal NOTE: Removal steps in this procedure may contain installation details. 2 E127929 1. Refer to: Health and Safety Precautions (100-00 General Information, Description and Operation). 2. Refer to: Battery Disconnect and Connect (414-01 Battery, Mounting and Cables, General Procedures). 3. x8 1

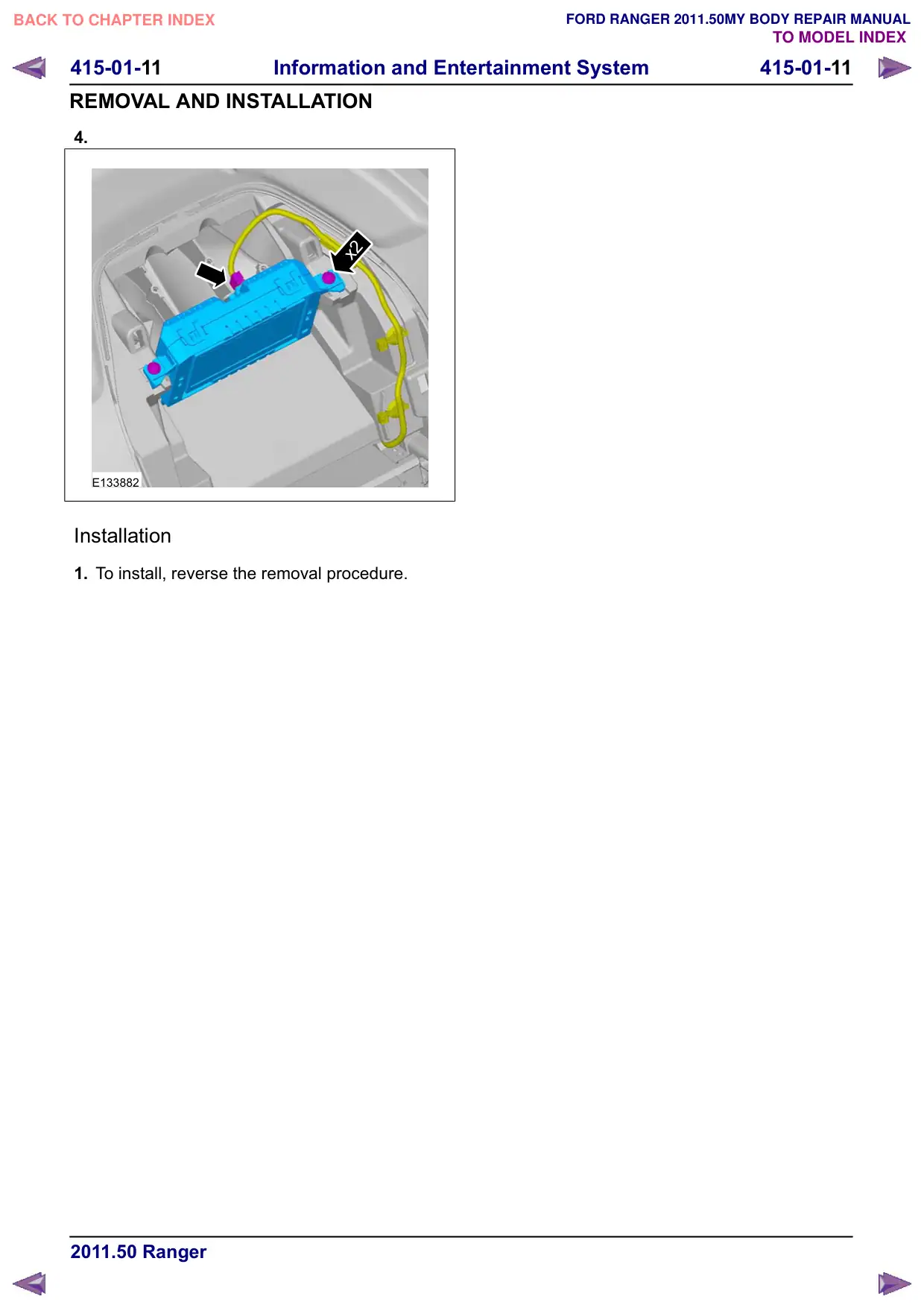

415-01-11 Information and Entertainment System 415-01-11 REMOVAL AND INSTALLATION 4. x2 E133882 Installation 1. To install, reverse the removal procedure.
